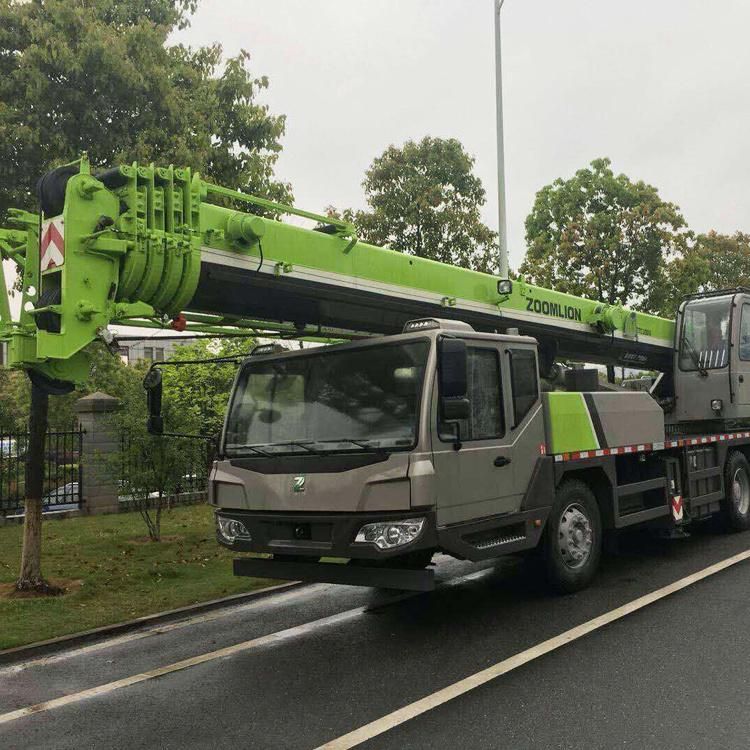

• Type：Straight Arm
• Capacity：20-150 Ton Truck Crane
• Emission Standard：Euro 2,3,4,5
• Usage：Construction Lifting
• Overall Weight：46000kg
• Max. Traveling Speed：85km,H
• Length-Full-Extend Boom：99m
• Brand：Zoomlion
• Transport Package：Nude
• Specification：46000kg
• Trademark：ZOOMLION
• Origin：Hunan, China
• Production Capacity：100units,Week

CapacityMax. lifting capacity160tDimensionsOverall length14750mmOverall width2750mmOverall height3850mmAxles3Axle distance-1,24325mmAxle distance-2,31350mmWeightOverall weight46000kgFront axle load6500kgRear axle load23500kgEngineModel Rated power213kW/2100rpmRated torque1050N·m/1200~1400rpmEmission standardEuro 3TravelingMax. traveling speed80 km/hMin.turning radius10 mMin.turning radius of boom head12 mDrive train6×4Min. ground clearance220mmApproach angle17 °Departure angle12 °Max. gradeability38%Fuel consumption per 100km≤ 37LMain PerformanceTemperature range- 30 ºC~ + 60 ºCMin.lifting radius3mTail swing radius of superstructure3.37mBoom section4Boom shapeU-shapedMax. lifting moment-Base boom962kN·mMax. lifting moment-Full-extend boom544kN·mMax. lifting moment-Full-extend boom+jib341kN·mLength-Base boom10.65mLength-Full-extend boom33.5mLength-Full-extend boom+jib41.5mOutrigger span(Longitudinal/Transversal)5.3m × 6.2mJib offset0 ° 15 ° 30 °Working SpeedMax. single rope lifting speed of main winch(no load)

≥120m/min

Max. single rope lifting speed of auxiliary winch(no load)

≥120m/min

Full extend/retract time of boom70 / 50sFull raise/lower time of boom70 / 55sSwing speed0~2 r/min
