• Model NO.：ZTC200V
• Shaft Number：3
• Crane Jib：Four-Arm
• Type：Straight Arm
• Rear Axle Load：23200kg
• Swing Speed：0-2.7r,Min
• Engine Power：199,2100 Kw,R,Min
• Max. Grade-Ability：40%
• Max. Travel Speed：80km,H
• Min. Turning Diameter：20m
• Min. Ground Clearance：260mm
• Max.Speed：40%
• Max Lifting Moment：960kn*M
• Max.Height：43m
• Transport Package：Roro
• Specification：12870*2550*3520mm
• Trademark：Top Brand
• Origin：China
• HS Code：5705109100
• Production Capacity：1000units,Moth

Product Description

Technical Features

ItemValueRemarksWorking performancerated lifting capacitykg20000 load moment of basic boom980 kN.m load moment of boom lengthkN.m573 lifting height of basic boom m11.5  lifting height of boom m33.8Deformation of the boom is not taken into consideration. lifting height of jib m41.6Working speedhoist rope speed (main winch) m/min120At 4^th layer hoist rope speed(auxiliary winch) m/min100At 2^nd layerBoom derricking times40 Boom extending times60 Slewing speed r/min0~2.2 Traveling specifications traveling speed km/h78  gradeability %37 Min. turning diameter m≤22 Min. ground clearance mm220 Limits for exhaust pollutants and smokeMeet with related standardsGB3847-2005GB17691-2005(National stage III)Oil consumption per hundred kilometers L45 WeightsDeadweight in traveling condition30000 kgComplete vehicle kerb mass kg29870 Front axle load kg6800 Rear axle loadkg23200 DimensionsOverall dimensions (L×W×H) mm12800×2500×3430 Longitudinal distance between outriggersm5.36 Transversal distance between outriggers m6.1 Boom length m10.5~33.3 Boom angle°-2~80 Jib length m8 Offset °0, 30     ChassisModelZLJ5325ClassIIEngineModelWP10.270

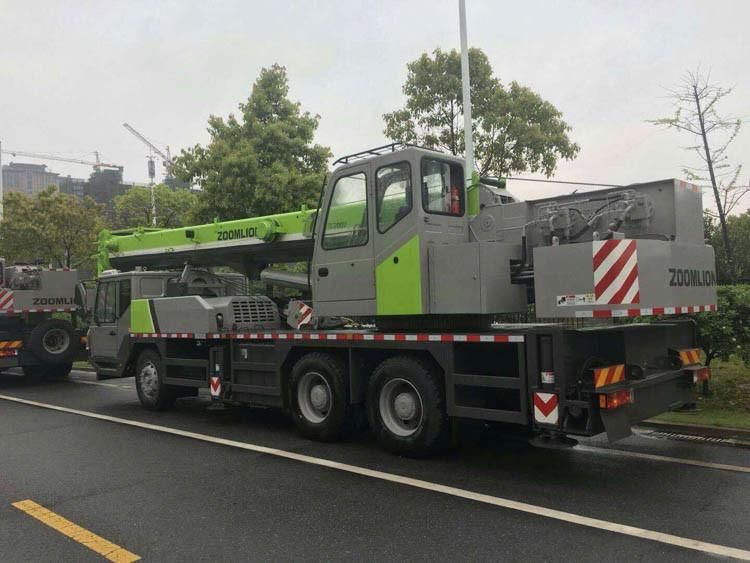

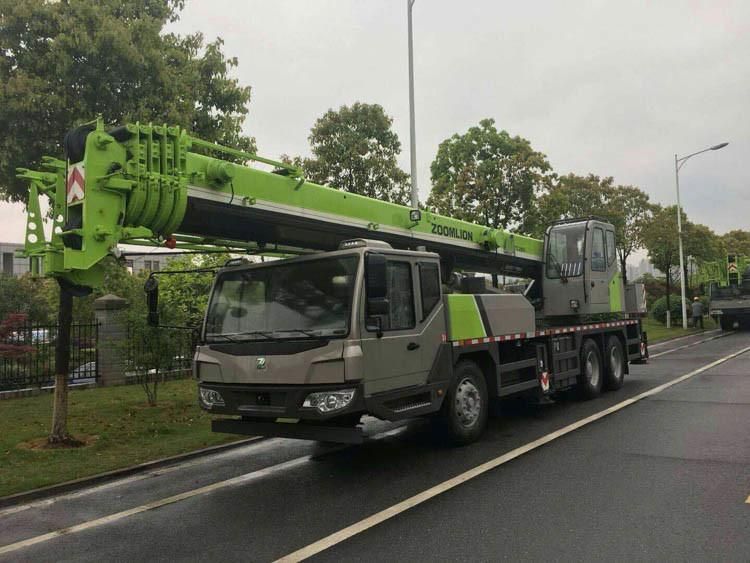

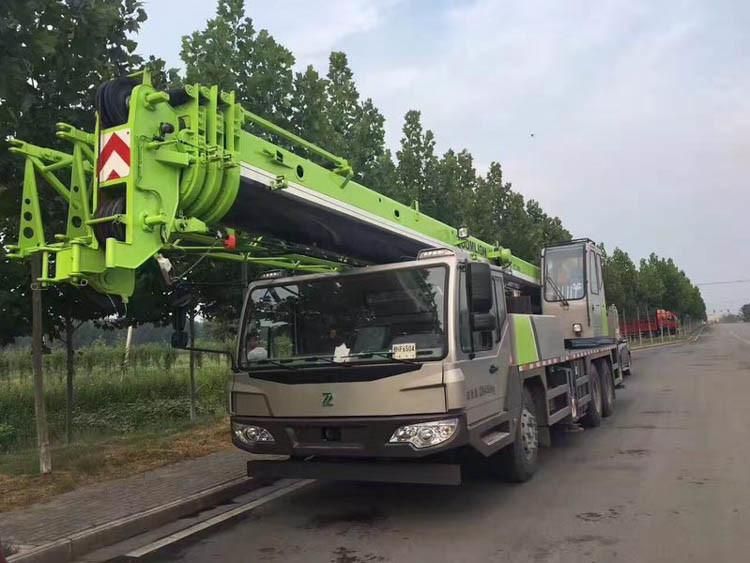

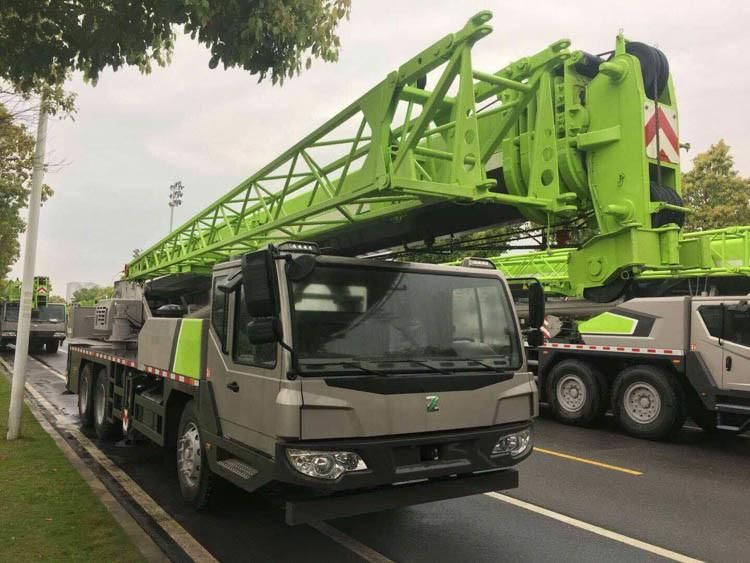

Machine Photos

Packaging & Shipping
