China Manufacture Ztc700 70 Ton Mobile Truck Crane

Cruking Engineering Equipment (Xiamen) Co., Ltd.
  • After-sales Service：Spare Parts
  • Warranty：1 Year
  • Certification：GS, RoHS, CE, ISO9001
  • Condition：New
  • Maximum Lifting Height：>40m
  • Maximum Lifting Weight：>16t

Base Info

  • Model NO.：ZTC700V
  • Shaft Number：3
  • Crane Jib：Five-Arm
  • Crane Type：Crane Type
  • Max. Lifting Height of Main Boom：40.2m
  • Max. Lifting Height of Jib：63.8m
  • Max. Driving Speed：75km,H
  • Max. Gradeability：42%
  • Min. Turning Diameter：Less Than 20m
  • Slewing Speed：0-2.7r,Min
  • Min. Ground Clearance：250 mm
  • Oil Consumption Per Hundred Kilometers：28L
  • Transport Package：Nude Package
  • Specification：13950*2800*3750mm
  • Trademark：cruking
  • Origin：China
  • HS Code：8705109100
  • Production Capacity：30000 Unit,Year

Description

DimensionsOverall dimensions(L×W×H)mm14100×2750×3750 Longitudinal distance between outriggersm6.00 Transversal distance between outriggersmFully extended:7.6,
Half- extended:5.04 Tail slewing radiusmm4020 Boom lengthm11.4 - 43.0 Boom angle°-2 - 80 Jib lengthm9.5,16.0

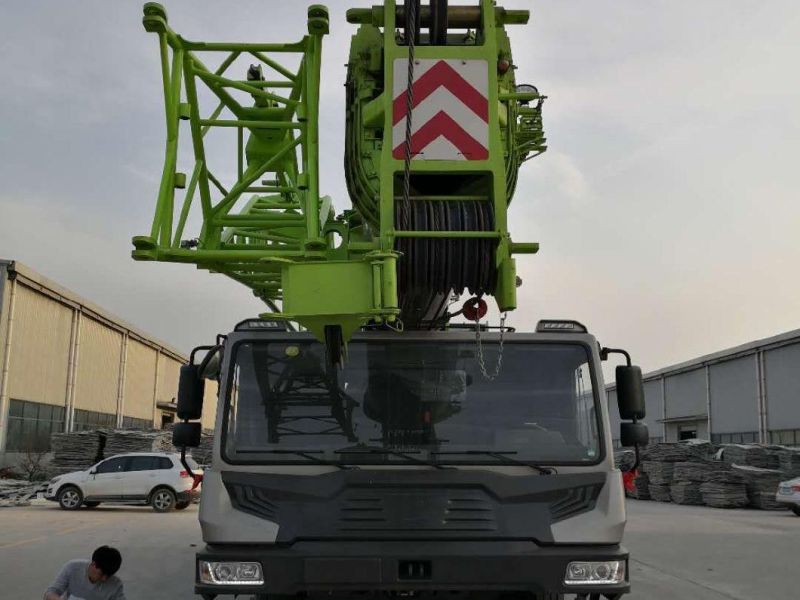

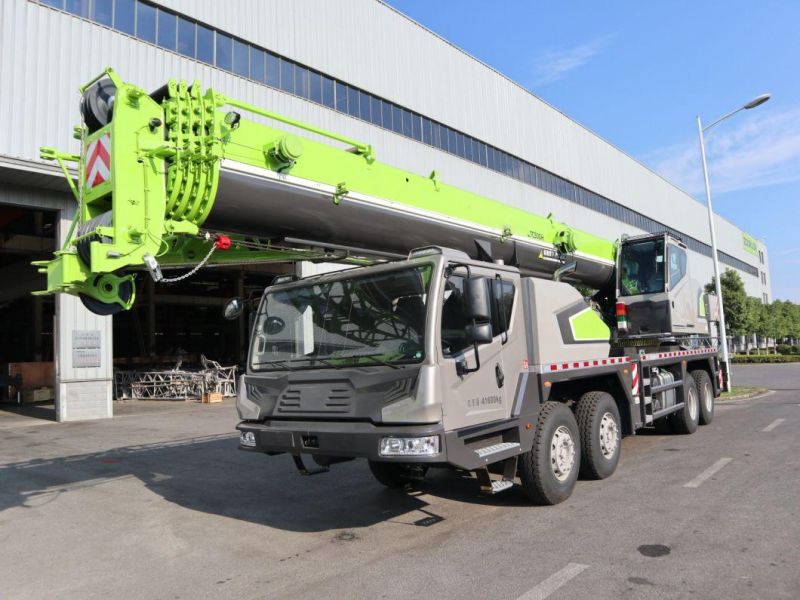

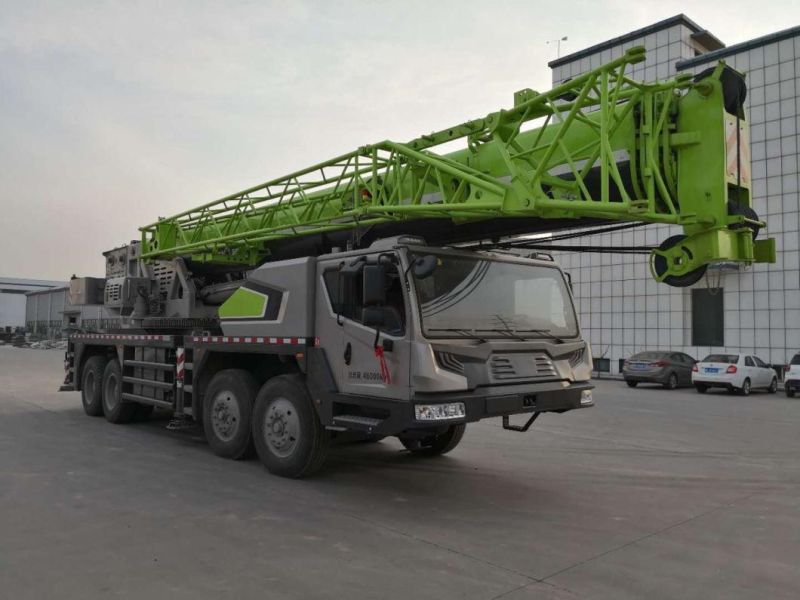

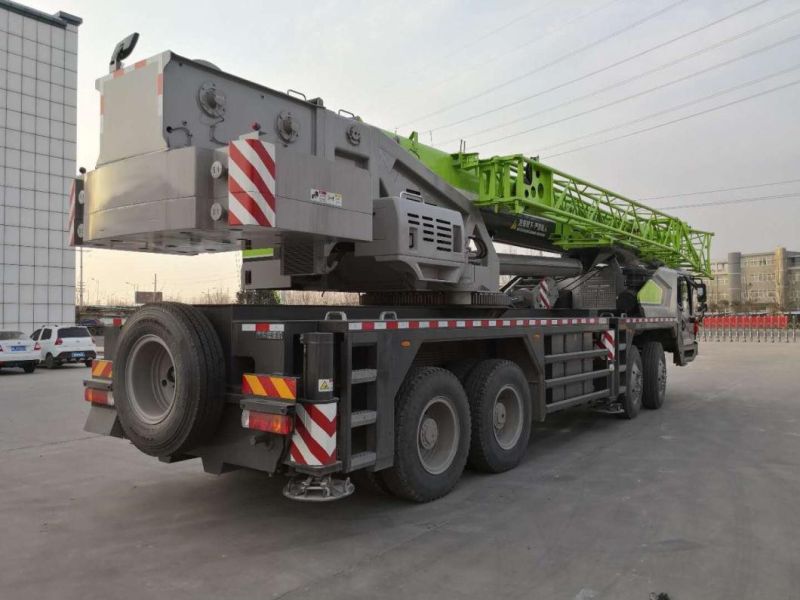

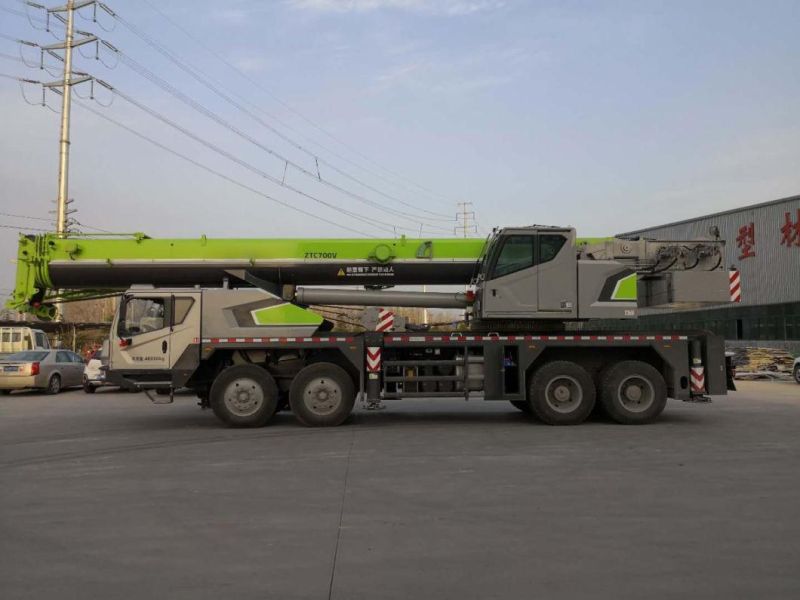

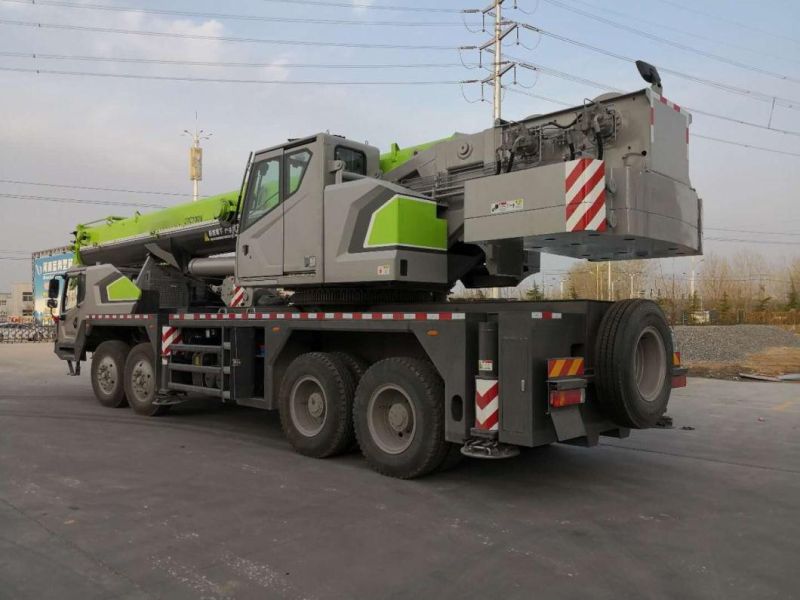

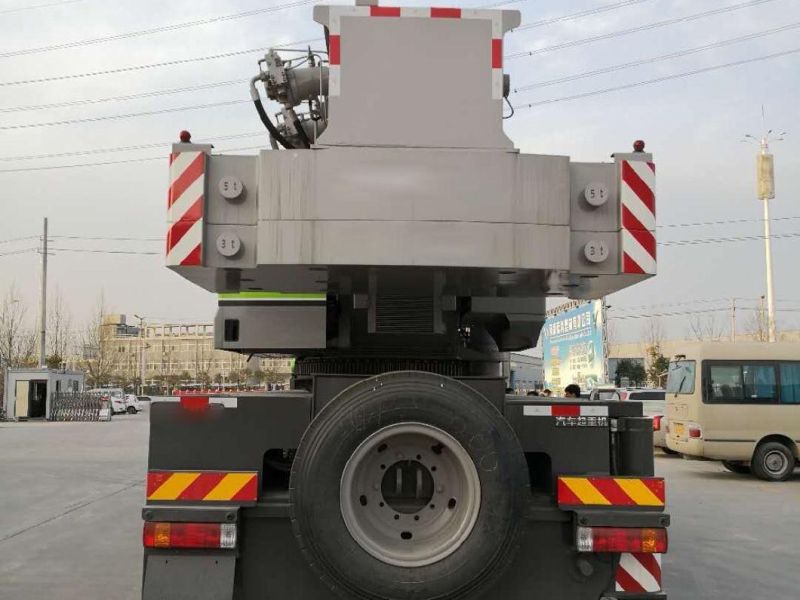

Details Images
China Manufacture Ztc700 70 Ton Mobile Truck CraneChina Manufacture Ztc700 70 Ton Mobile Truck CraneChina Manufacture Ztc700 70 Ton Mobile Truck CraneChina Manufacture Ztc700 70 Ton Mobile Truck CraneChina Manufacture Ztc700 70 Ton Mobile Truck CraneChina Manufacture Ztc700 70 Ton Mobile Truck CraneChina Manufacture Ztc700 70 Ton Mobile Truck CraneChina Manufacture Ztc700 70 Ton Mobile Truck Crane



China Manufacture Ztc700 70 Ton Mobile Truck CraneChina Manufacture Ztc700 70 Ton Mobile Truck Crane
