Made in China 1.5 Ton Telescopic Loader with CE, ISO, SGS

Weifang Haiqin Top Machinery Co., Ltd.
  • After-sales Service：24 Hours Every Day of Technology and Parts Service
  • Warranty：12 Months
  • Certification：CE, Rops&Rops,SGS
  • Condition：New
  • Maximum Lifting Height：<10m
  • Maximum Lifting Weight：<2t

Base Info

  • Model NO.：HQ915T
  • Shaft Number：2
  • Crane Jib：Two-Arm
  • Type：Straight Arm
  • Loader Boom：Telescopic Boom 4.5 M
  • Loading Weight：1.5 Ton
  • Egnine：Euro III
  • Transport Package：2 Units in a Hq40 Container
  • Specification：CE, ISO, SGS, ROPS&FOPS
  • Trademark：Haiqin
  • Origin：Shandong, China
  • HS Code：84295100
  • Production Capacity：8000 Units , Year

Description

Basic Info.

Model NO. HQ915T Shaft Number 2 Crane Jib Two-Arm Type Straight Arm Loader Boom Telescopic Boom 4.5 M Loading Weight 1.5 Ton Egnine Euro III Transport Package 2 Units in a Hq40 Container Specification CE, ISO, SGS, ROPS&FOPS Trademark Haiqin Origin Shandong, China HS Code 84295100 Production Capacity 8000 Units / Year

Product Description

Haiqin Brand Small Telescopic Loader (HQ915T) with Ce and Euro 5 engine

Made in China 1.5 Ton Telescopic Loader with CE, ISO, SGS

1, HQ915T Telescopic Loader Standard Equipment:
China Yunnei or Xinchai498BT Engine(EuroIII Engine), Standard Bucket, Real Rops & Fops Cabin, Quick Hitch, Joystick Handle, Comfortable high quality Seat, Adjustable Steering Wheel, 23.5/70-16 Agricultural Tyre, Wheel-reducer Axle, Disc Brake, 130W Heater, Backward camera, Blinking Lamp Without Key, Free Service Spare Parts.

2, Details Specifications of HQ915T Telescopic Loader

1.0 Engine Details
(1) Model: China YUNNEI or  Euro III Xinchai A498BPT
(2) Engine type: In-line arrangement, water-cooled, four-cycle diesel Engine
(3) Rated Power: 37KW (50.32H. P. )
(4) Rated Speed: 2200 r/p. Min (rpm)
(5) Fuel Consumption ratio in standard working condition: 230g/kw. H

2.0 Transmission System :Hydraulic converter + drive shaft + axles

3.0 Bucket
(1) BucketCapacity: 0.65 m3
(2) Bucket width: 1700mm
(3) Bucket type: Heavy-duty bolt on teeth
(5) Rated Load: 1500kg including attachment

4.0 Overall Dimensions
(1) Overall Length: 5920mm
(2) Overall Height: 2650mm
(3) Overall Width: 1800mm
(4) Max. Lifting Height: 4600mm

5.0 Operating Specifications
(1) Steering System: Articulated Frame with hydraulic power steering
(2) Min Turning Radius: 4500mm
(3) Driving System: Hydraulic converter, four wheel drive
(4) Quick coupling system
(5) Joystick handle
(6) Self levering

6.0 Brake System
(1) Service Brake: Disc brake
(2) Parking Brake: Hand operated

7.0 Tyre: Model: 23.5/70-16
8.0 Wheelbase: 2400mm
9.0 Track: 1415mm
10. System pressure: 20Mpa; Hydraulic output: 70L/min
11, Operation weight:4400kg

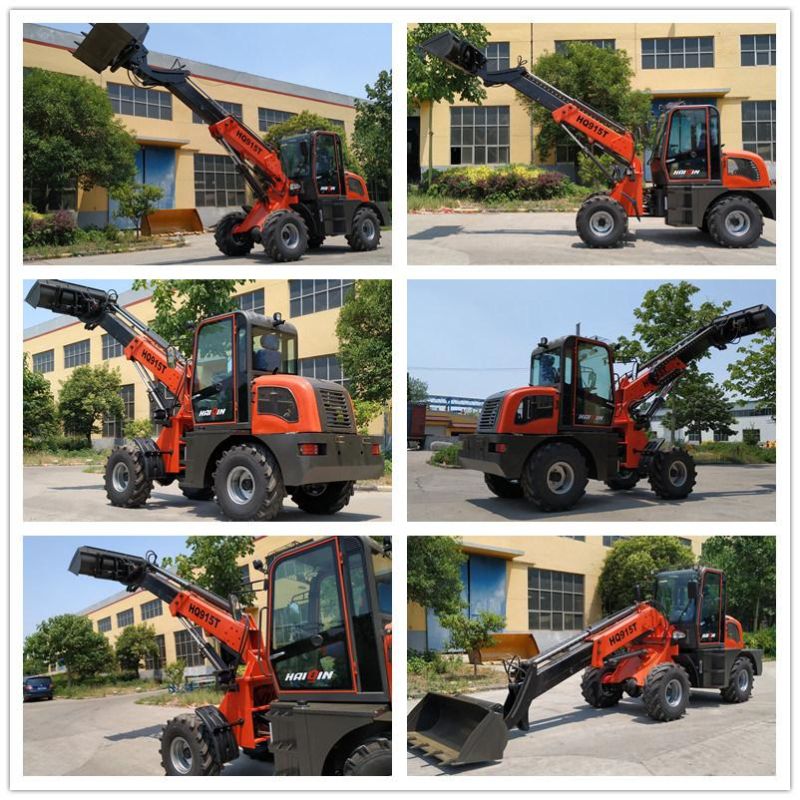

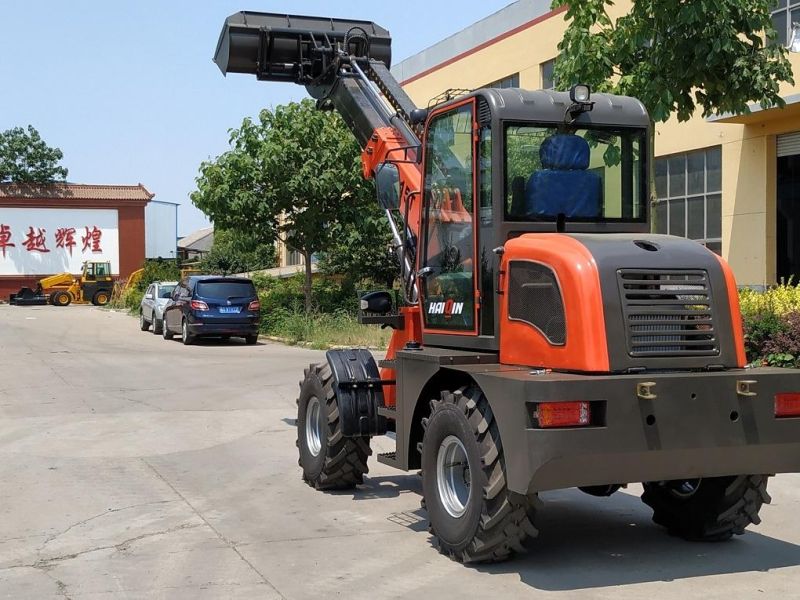

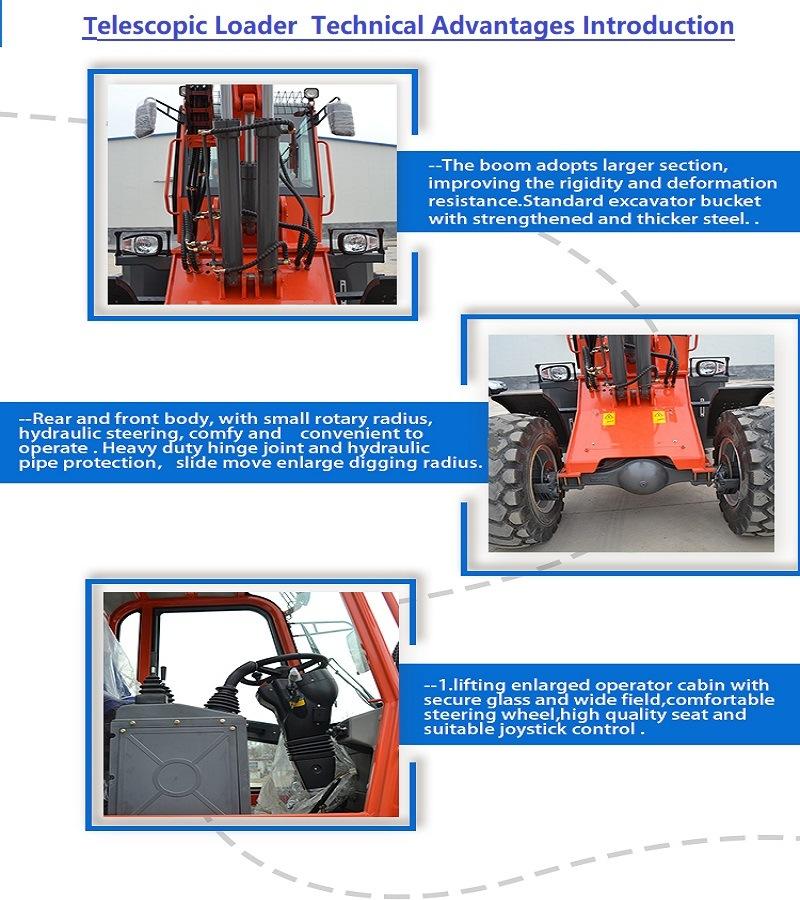

3, Details Photos of HQ915T Telescopic Loader:
Made in China 1.5 Ton Telescopic Loader with CE, ISO, SGS
Made in China 1.5 Ton Telescopic Loader with CE, ISO, SGS

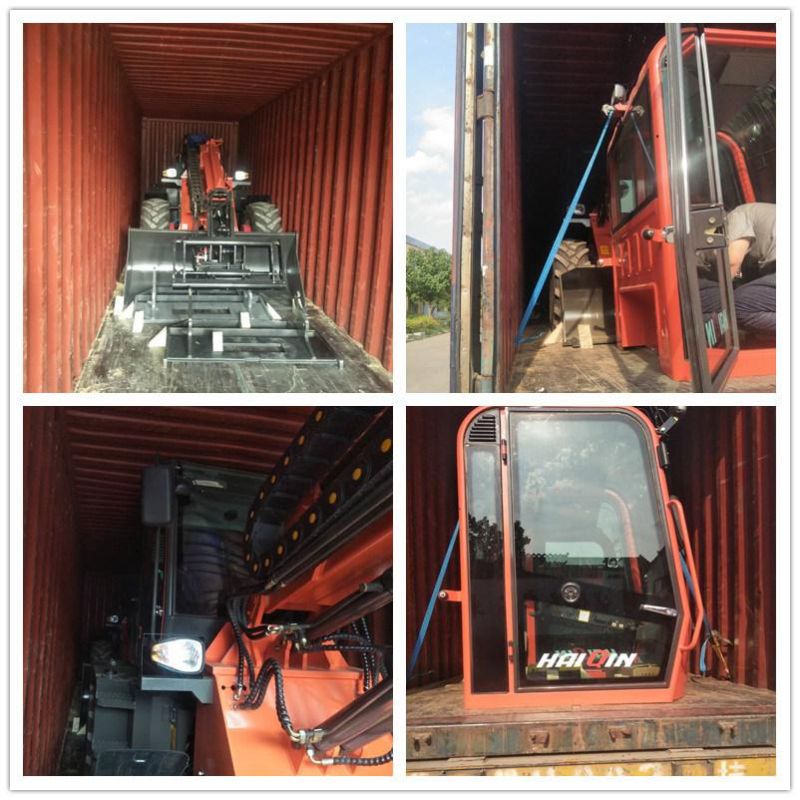

4, Professional Loading and Packing of HQ915T Telescopic Loader:

Made in China 1.5 Ton Telescopic Loader with CE, ISO, SGS

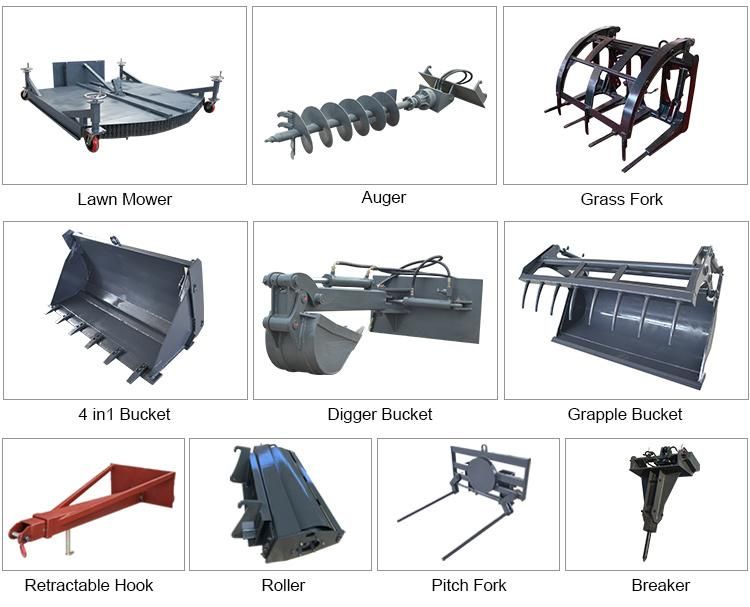

5, Optional Attachments for HQ915T Telescopic Loader
Made in China 1.5 Ton Telescopic Loader with CE, ISO, SGS

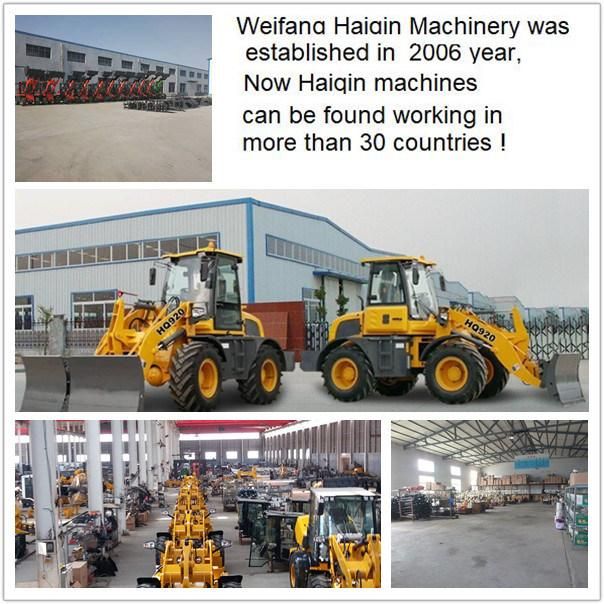

6, Factory introduction of Haiqin Machinery
Made in China 1.5 Ton Telescopic Loader with CE, ISO, SGS

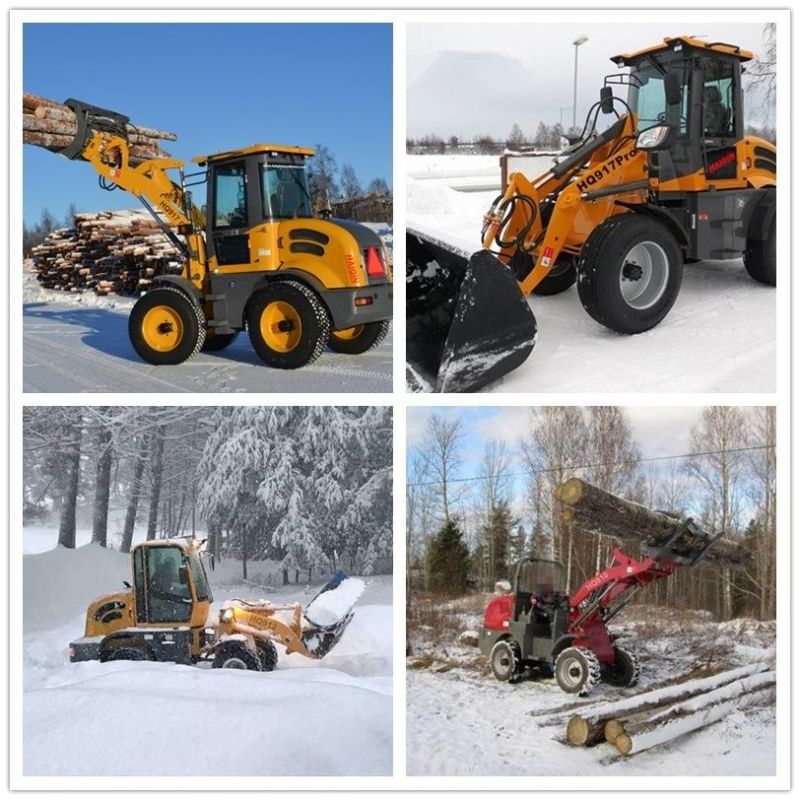

7, Working Case in the foreign countries of Haiqin Machinery' Loaders.
Made in China 1.5 Ton Telescopic Loader with CE, ISO, SGS

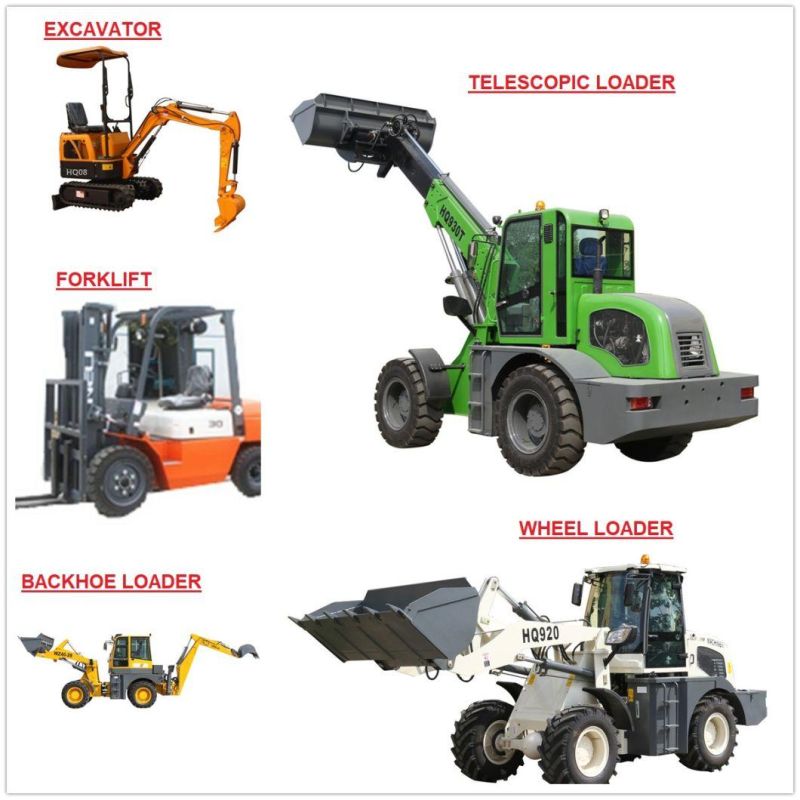

8, MORE PRODUCT CATEGORIES
Made in China 1.5 Ton Telescopic Loader with CE, ISO, SGS
9, Warranty and Service.

HAIQIN loader has One Year Warranty.
During Warranty, if there is any part broken because of quality problem(except easy-damaged parts), send us detailed pictures and video, then we will send good/ new parts for your replacements.

Choose HAIQIN, and then better after-service will be guaranteed.

Contact us right now for more information!  Online 24 hours a day!
