• Model NO.：XGC55T
• Transport Package：Nude, Roro
• Specification：Telescopic Boom Crawler Crane
• Origin：Jiangsu, China
• HS Code：8426491000
• Production Capacity：1000PCS,Year

Basic Info.

Model NO. XGC55T Transport Package Nude, Roro Specification Telescopic Boom Crawler Crane Origin Jiangsu, China HS Code 8426491000 Production Capacity 1000PCS/Year

Product Description

Contact:
Betty Ding


Shanghai Oriemac Machinery & Equipment Co., Ltd.
Oriemac International Holding Limited

Add: Suite 2808, Super Ocean Finance Center, 2067 West Yan'an Road, Shanghai 200336, China

Web: oriemac.en.made-in-china.com
Alibaba: https://oriemac.en.made-in-china.com
Made-in-China: http://oriemac.en.made-in-china.com
Global sources: http://oriemac.en.made-in-china.com

Introduction:
X is a construction machinery manufacturer with over 70 years of experience. Overthe years, we have grown to become the world's most comprehensive constructionmachinery manufacturer and influential multinational company.X'sconstruction machinery covers an astonishing range of equipment, includingcranes, earth-moving machinery, roadmachinery, excavators, concrete machinery, mining machinery, piling machinery,lumber machinery, fire-fighting machinery, heavy trucks, sanitation machinery,agricultural machinery, and more. We have the world's most comprehensiveproduct line, and offer customers complete solutions for constructionequipment. Our other businesses includefinance, leasing, and remanufacturing. As a leading construction equipmentmanufacturer and solution provider, X's mission is to create qualityproducts that leave customers satisfied. We will continue to innovate and workhard to provide even better equipment to our customers all over the world.

Specification:

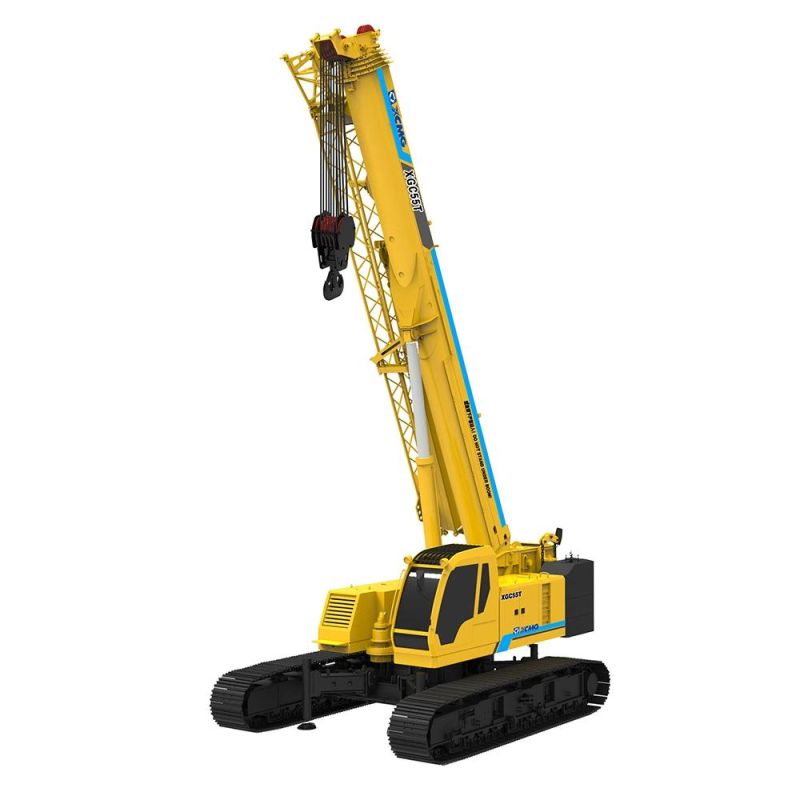

The max rated lifting capacity of XGC55T telescopic crawler crane is 55t, with five telescopic boom sections, 41m fully-extended boom (10.6~41m), and 9.5~16m jib. Its boom length can fulfill various working radius demands. Telescoping crawler track, not only meets the high stability requirement of lifting operation, but also the outline dimension requirement for overall crane transportation.

Item	Unit	Parameter value
Parameter Item	-	XGC55T
Dimension parameter		*
Overall crane length	(mm)	12719
Overall crane width(extend/retract)	(mm)	4800/2980
Overall crane height	(mm)	3223
Center distance between drive roller and driven roller	(mm)	5278
Crawler shoe width	(mm)	760
Weight parameter		*
Total mass in travel state	(kg)	63223
Travel parameter		*
Travel speed with no load	(km/h)	3
Travel speed with full load	(km/h)	1.5
Min. ground clearance	(mm)	304
Max. grade ability	(%)	45
Ground pressure	(MPa)	0.077
Power parameter		*
Noise near ear(dB)	(A)	80
Engine model	-	QSB6.7
Engine rated power	(kw)	164
Engine rated speed	(r/min)	2200
Engine emission standard	-	(non-road) EU Stage IIIA
Volume parameter		*
Hydraulic oil tank volume	(L)	900
Fuel tank volume	(L)	550
Main perdormance parameter		*
Max. rated lifting capacity	(t)	55
Min. rated radius	(m)	3
Max. load moment--basic boom	(kN·m)	2116.8
Max. load moment--longest  boom	(kN·m)	1207
Lifting height--basic boom	(m)	10.9
Lifting height--longest boom	(m)	41.4
Lifting height--longest boom+jib	(m)	55
Boom length--basic boom	(m)	10.6
Boom length--longest boom	(m)	41
Boom length--longest boom+jib	(m)	57
Jib offset angle	(°)	0,15,30
Working speed		*
Boom raising time	(s)	60
Boom fully-extending time	(s)	110
Max. slewing speed	(r/min)	2
Hoisting speed(no load, the 4th layer) main hoist system	(m/min)	140
Hoisting speed(no load, the 4th layer) aux. hoist system	(m/min)	140

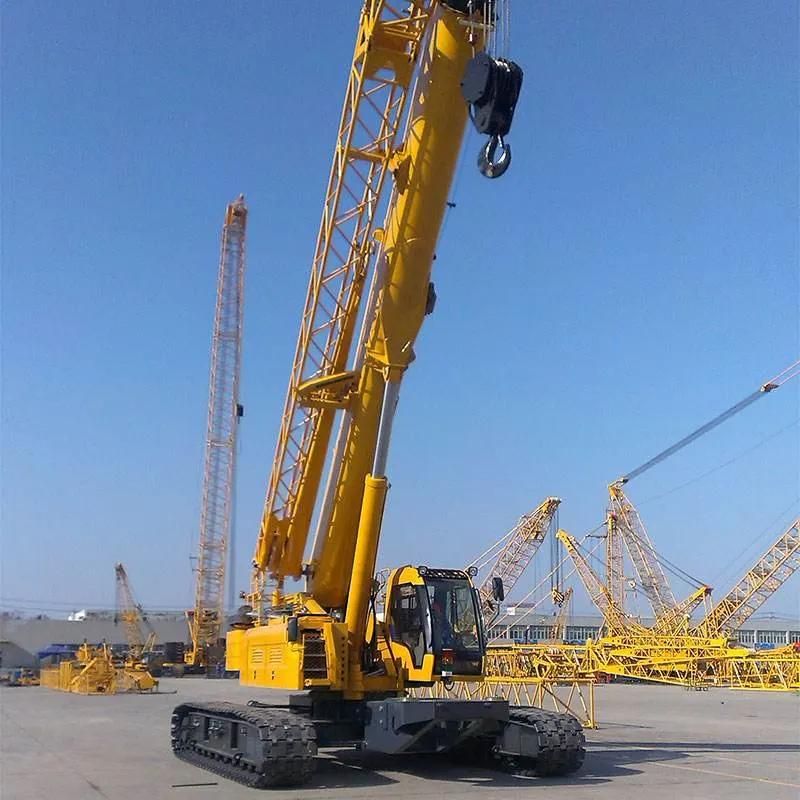

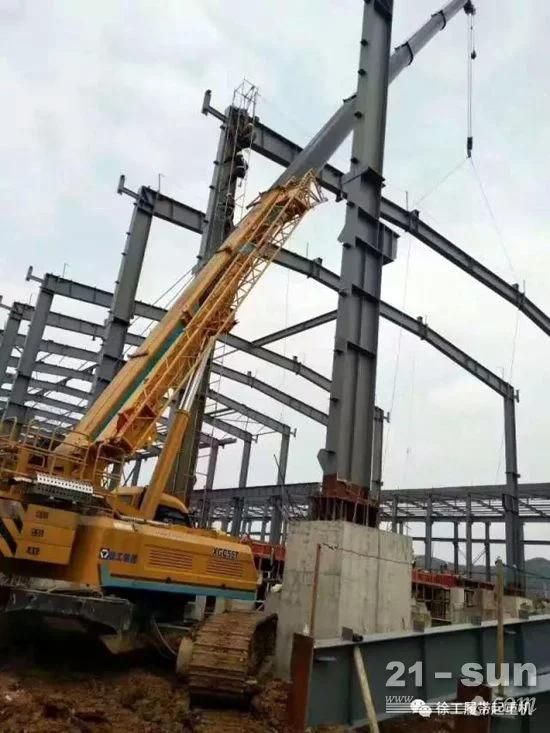

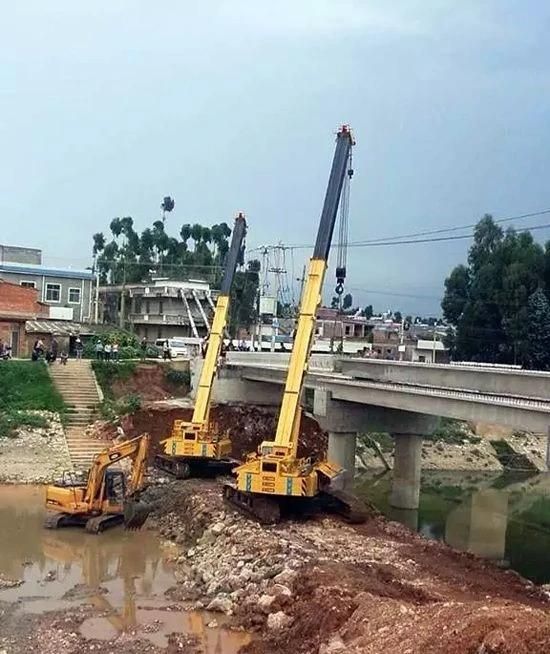

Pictures:
