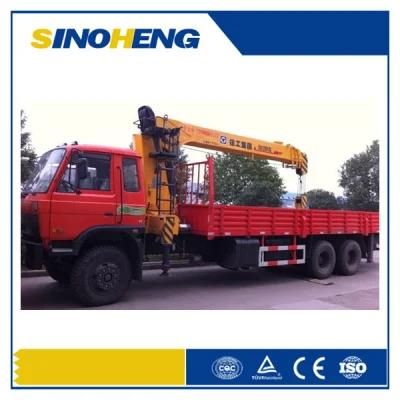

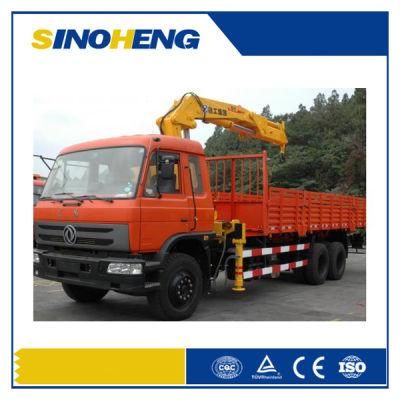

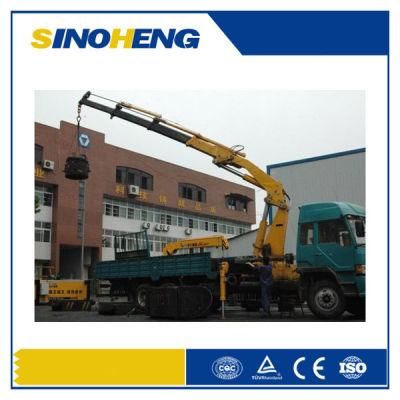

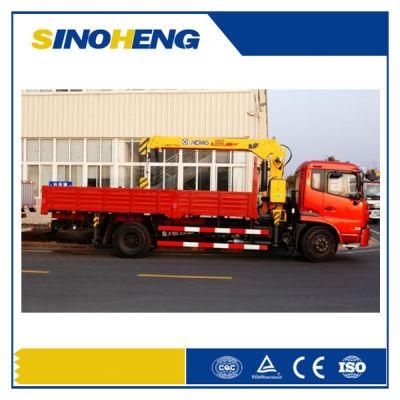

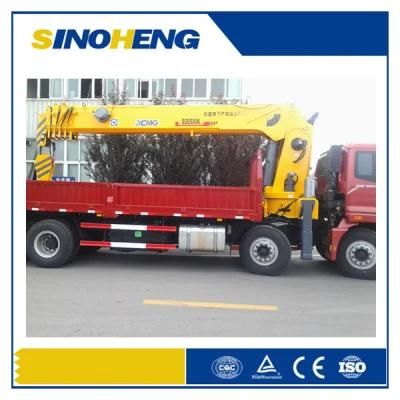

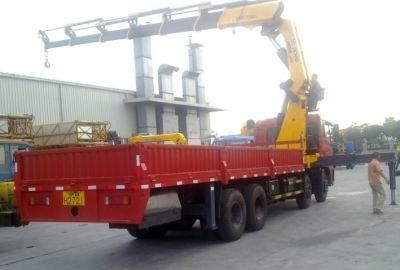

Foton 12 Tons Truck Mounted Cranes Sq12zk3q
Jinan Sinoheng Import and Export Co., Ltd.- Certification：ISO9001
- Condition：New
- Maximum Lifting Weight：11-13t
- Type：Folding
- Max Lifting Moment：30t.M
- Max Lifting Capacity：12000kg
Base Info
- Model NO.：SQ12ZK3Q
- Oil Tank Capacity：160L
- Crane Weight：4130kg
- Rotation Angle：(360°)All Rotation
- Installation Space：1400mm
- Max. Working Radius：9.78m
- Transport Package：Container or as Requirements of Customers
- Specification：ISO9001: 2000
- Trademark：Foton
- Origin：Jiangsu, China
- HS Code：8705102200
- Production Capacity：500 Units,Month
Description
Model
SQ12ZK3Q
Unit
Max Lifting Moment
30
t.m
Max Lifting Capacity
12000
kg
Recommend Power Needed At Recommend Oil Flow
32
kw
Max Oil Flow of Hydraulic System
55
L/min
Rated Pressure Of Hydraulic System
30
MPa
Oil Tank Capacity
160
L
Rotation Angle
(360°)All Rotation
°
Crane Weight
4130
kg
Installation Space
1400
mm
Choice of Chassis
DFL1250A9; DFL1311A3 ;CA1240PK2L7T4EA81
EQ5201GFJ6;BJ1317VNPJJ-S5; BJ5253ZKPJJ;DFL1253AX;
Working radius (m)
2.5
4.2
6.02
7.9
9.78
Lifting capacity (kg)
12000
6900
4560
3410
2650
