• Model NO.：SQZ800K
• Max. Lifting Capacity：30000kg,294000 Kn
• Dead Weight：8560 Kg
• Stabilizer Spread：8372 mm
• Max. Hydraulic Outreach：16.02 M
• Slewing Angle：360°continuous
• Application：Construction Usage, Mineral Area Usage
• Sling Type：Cable
• Power Source：Hydraulic
• Transport Package：Nude
• Specification：CE
• Trademark：Dongfeng
• Origin：China
• HS Code：8705102200
• Production Capacity：300 Units Per Month

Basic Info.

Model NO. SQZ800K Max. Lifting Capacity 30000kg/294000 Kn Dead Weight 8560 Kg Stabilizer Spread 8372 mm Max. Hydraulic Outreach 16.02 M Slewing Angle 360°continuous Application Construction Usage, Mineral Area Usage Sling Type Cable Power Source Hydraulic Transport Package Nude Specification CE Trademark Dongfeng Origin China HS Code 8705102200 Production Capacity 300 Units Per Month

Product Description

Dongfeng 30 Ton Heavy truck mounted Lifting crane SQZ800K

Company feature:

1. professional manufacturers of Truck mounted crane

2. Stable and mature production technology

3. A wide range of market share



Products  feature:

The truck mounted crane is named also truck with loading crane. It consists of chassis, packing case (tank), power take-off, and crane.

 It is widely used in city construction, coal mining engineering, gardens Greening for lifting and transporting the basic construction materials and so on.


After-sales service :



1. Guaranty time: 12 months (calculating from the date the machine leave the port of loading) or 1500 working hours, whichever comes first.



2. Provide maintenance instruction, parts list, packing list, accessories and tools free of charge when send the machine to you.



3. Provide the parts free of charge in the guaranty time if the parts cannot work well.



4. Excess the guaranty; you can easily to buy from us with cost price anytime.



Max. lifting moment	70.4tm/718.4  K Nm
Max. lifting capacity	30000kg/294000  K N

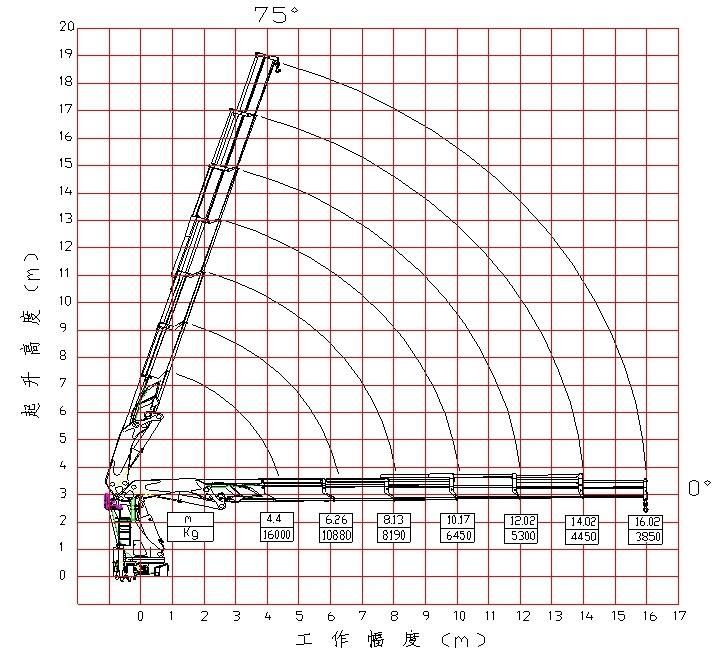

Max. Hydraulic   outreach	16.02    m
Slewing angle	360°continuous
Slewing torque	6.34tm/62.1  K Nm
Stabilizer spread	8372    mm
Fitting space required	2000    mm
Width folded	2500    mm
Max.operating    pressure	33    MPa
Recommended pump   capacity	80  L /min
Dead weight	8560   kg
