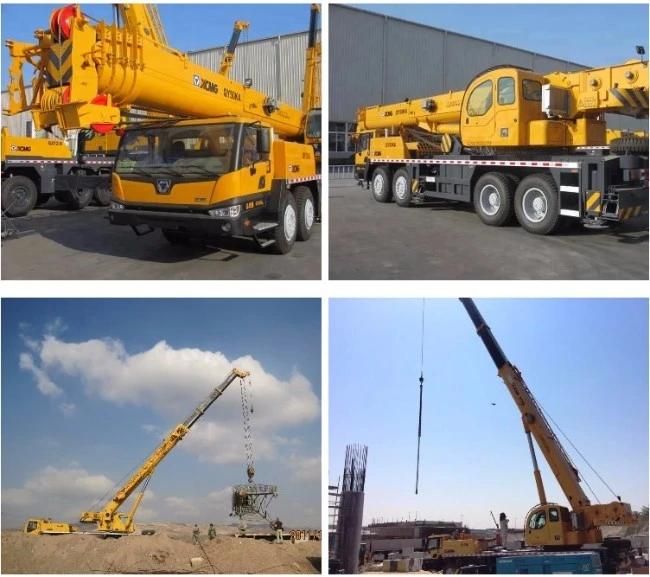

Hydraulic Machinery 70ton Truck Crane for Construction Qy70K
Shanghai Super-Above Industry Holdings Co., Ltd.- Condition：New
- Maximum Lifting Height：>40m
Base Info
- Model NO.：Qy70K
- Maximum Lifting Weight：70000kgs
- Shaft Number：4
- Crane Jib：Five-Arm
- Type：Folding
- Max Lifting Capacity：70ton
- Rated Power：276kw
- Total Weight：43000 Kg
- Length：1393mm
- Width：2800mm
- Height：3575mm
- Speed：80km,H
- Cabin：Full Cabin
- A/C：Yes
- Emission：Euro III
- Warranty：1 Year
- Aftersales Service：Oversea Service, Free Spare Parts, etc
- Control System：Pilot Control
- Certificate：ISO CCC
- Transport Package：Roro Ship , Bulk Ship
- Specification：Mobile crane
- Trademark：Super-above
- Origin：Jiangsu, China
- HS Code：8705109100
- Production Capacity：10000units,Year
Description
ItemQY70K-I parameterUnitDimensionsTotal length13930mmTotal width2800mmTotal height3575mmWeightoperation in travel state 43000(not included 1t auxiliary counterweight)KgFront axle load 17000KgRear axle load26000KgPowerEngine modelEuro III hangfa WD615.338 Engine rated output276/2200Kw(r/min)Engine rated torque1500/1400N.m(r/min)TravelMax.travel speed80Km/hMax. turning diameter24mmMax. ground clearance327mmApproach angle19/18.Departure angle11.Max. grade ability40%Fuel consumption of 100km45LLifting performanceMax. total rated lifting load50tMin. rated working radius3000mTurning radius at swing table tail3.55mmMax. load moment2303 Base boom11.6Kn.mFully-extended main boom 44.5mFully-extended main boom+ luffing jib59.5mOutrigger longitudinal span6.1mOutrigger lateral span7.3mWorking speedBoom luffing time60sBoom full elevating time≤150sMax. slewing speed≥2.0r/minMain hoist max. speed(single rope)≥130m/minAuxiliary hoist max. speed(single rope )≥180m/min
