Zoomlion 70 Ton 75 Ton Load Chart Quy70 Crawler Crane
Acntruck Automobile Sales (Shanghai) Co., Ltd.- Max. Lifting Height：62m
- Rated Loading Capacity：75t
- Certification：ISO9001, CE, RoHS, BV
- Condition：New
- Warranty：1 Year
- Driving Weight：61.6 T
Base Info
- Model NO.：ZCC750H-1
- Counterweight：23 T
- Transport Package：Nude Packaged
- Specification：13000 * 5010(3380) * 3260 mm
- Trademark：Zoomlion
- Origin：Hunan, China
- HS Code：8426491000
- Production Capacity：3000PCS,Year
Description
Basic Info.
Model NO. ZCC750H-1 Counterweight 23 T Transport Package Nude Packaged Specification 13000 * 5010(3380) * 3260 mm Trademark Zoomlion Origin Hunan, China HS Code 8426491000 Production Capacity 3000PCS/YearProduct Description
Zoomlion 70 Ton 75 Ton Load Chart QUY70 Crawler CraneProduct Description| Model | ZCC750H-1 | ZCC850V | ZCC100H |
| Max. lifting capacity | 75 ton | 85 t | 100 t |
| Max. lifting height | 62 m | 68 m | 71 m |
| Max. lifting moment | 300 t.m | 357 t.m | 390 t.m |
| Main boom length | 13~58 m | 13~61 m | 13~64 m |
| Max. gradeability | 30% | 30% | 30% |
| Max. travel speed | 1.49 km/h | 1.4 km/h | 1.3 km/h |
| Driving weight | 61.6 t | 75.5 t | 86 t |
| Counterweight | 23 t | 28.5 t | 32 t |
| Dimension | 13000 * 5010(3380) * 3260 mm | 13000 * 5100(3400) * 3340 mm | 13300 * 5050(3380) * 3270 mm |
| Engine power | 199/2000 kW/r/min | 199/2000 kW/r/min | 199/2000 kW/r/min |
| Max. hoist rope speed | 129 m/min (main winch) | 140 m/min (main winch) | 141 m/min (main winch) |
1. High working efficiency
Single rope speed of H1 and H2 reaches 136m/min (the 3rd layer).
The optional free-fall winch helps to improve the efficiency of hoisting.
2. Optimization in transport and dismantling
Tracks are extendible. The maximum width in transport is 3.2mm which is smaller than 3.0m when tracks are dismantled from the crane.
The weight of a single counterweight plate shall not exceed 5.1t. A small auxiliary crane can help to finish the assembly.
Optional folding brackets are convenient for the assembly and dismantling of track carrier.

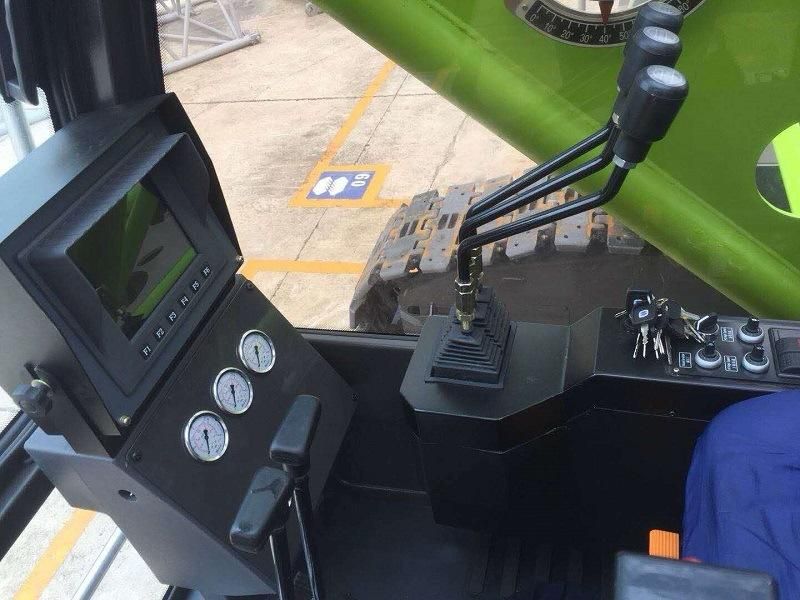

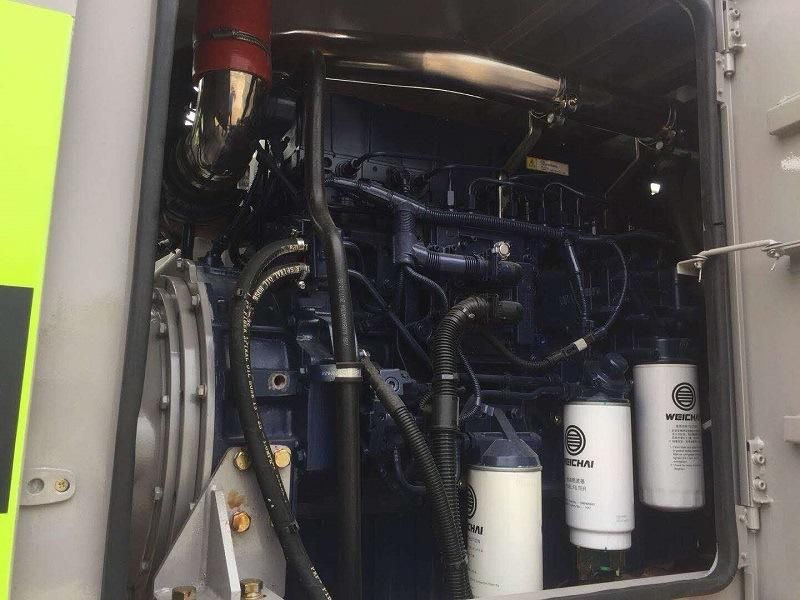

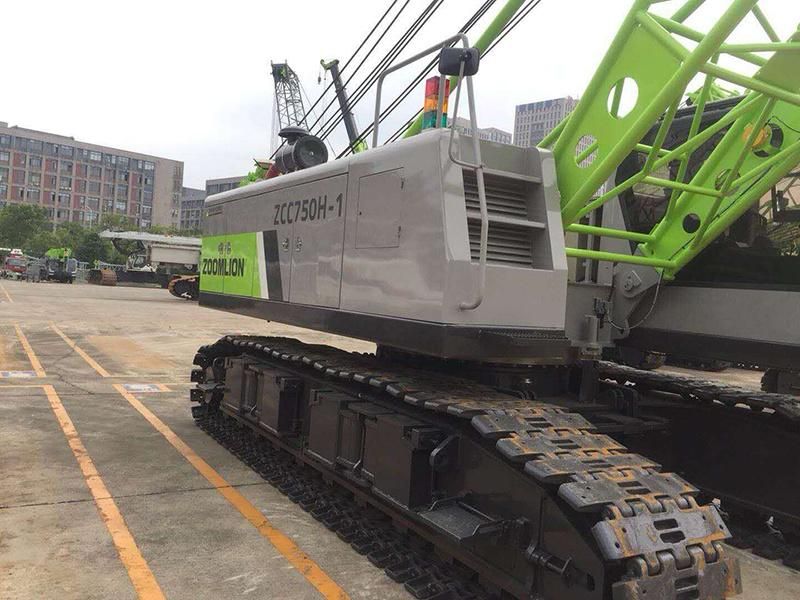

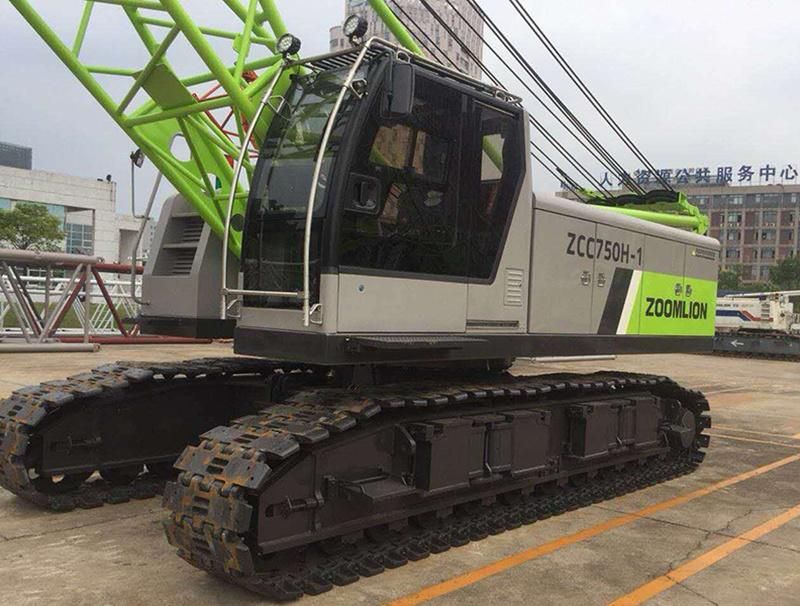

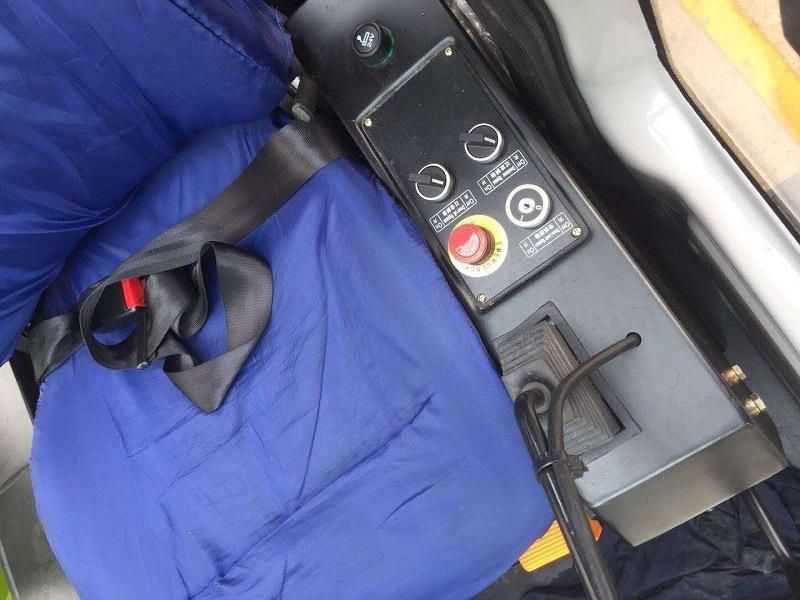

Product Pictures
A crawler crane is a crane mounted on an undercarriage that has a set of tracks (crawlers). These tracks provide the crawler crane with reliable mobility and stability.
