25 Ton Grove Rough Terrain Crane Car Lifting Equipment
Acntruck Automobile Sales (Shanghai) Co., Ltd.- Certification：GS, RoHS, CE, ISO9001
- Condition：New
- Maximum Lifting Height：44.8m
- Maximum Lifting Weight：25 Ton
- Shaft Number：3
- Crane Jib：Two-Arm
Base Info
- Model NO.：RT25
- Type：Folding
- Span：6600*6500 mm
- Wheel Base：3700mm
- Gross Vehicle Weight When Driving：26365kg
- Engine Rated Power：142kw
- Min. Ground Clearance：345mm
- Engine Type：Qsb6.7-C190
- Basic Boom：9.5m
- Wheel Track：2200mm
- Max Travel Speed：50km,H
- Max. Grade-Ability：55%
- Marketing Type：New Product 2020
- Application：Construction Works
- Max. Load Moment of Basic Jib：989.8kn.M
- Longest Main Boom：30.8m
- Longest Main Boom + Auxiliary Boom：41.4m
- Transport Package：Nude Package, Suitable for Shipment
- Specification：11703*2700*3385mm
- Trademark：Acntruck
- Origin：China
- Production Capacity：30000 PCS,Month
Description
Project
Unit
Parameter
Measurements Parameters
Length of Entire Vehicle
(mm)
11703
Width of Entire Vehicle
(mm)
2700
Height of Entire Vehicle
(mm)
3385
Wheel Base
(mm)
3700
Wheel Track
(mm)
2200
Weight Parameters
Gross Vehicle Weight When Driving
(kg)
26365
Axle Load
(kg)
(Front Axle)12715/(Rear Axle)13650
Kinetic Paremeter
Engine Type
-
QSB6.7-C190
Engine Rated Power(kw/
(kw/(r/min))
142
Engine Max Torque(N.m/
(N.m/(r/min))
931
Driving Parameters
Driving
Max Travel Speed
(/h)
50
Min Travel Speed
(/h)
2
Swerve
Min Turning Radius
(m)
10
Head Min. Turning Diameter
(m)
-
Max Gradeability
(%)
55
Min. Ground Clearance of Machine
(mm)
345
Approach Angle
(°)
22
Departure Angle
(°)
19
Braking Distance
(m)
9
Fuel Consumption per 100s
(L)
-
Major Performance Parameters
Max. Rated Lifting Capacity
(t)
25
Min. Rated Range
(m)
3
Max. Load Moment of Basic Jib
(kN·m) 989.8
Radius of Gyration of Turntable Tail
(mm)
3698
Outrigger
Longitudinal
(m)
6.3
Horizontal
(m)
6.3/4.8
Max. Lifting Height
Basic Boom
(m)
9.1
Longest Main Boom
(m)
30.8
Longest Main Boom + Auxiliary Boom
(m)
41.4
Boom Length of Crane
Basic Boom
(m)
9.7
Longest Main Boom
(m)
31
Longest Main Boom + Auxiliary Boom
-
44
Longest Main Boom + Auxiliary Boom + Extension
-
-

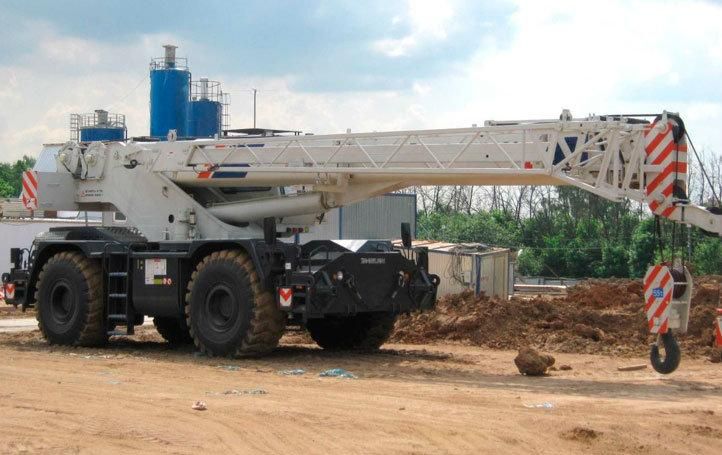

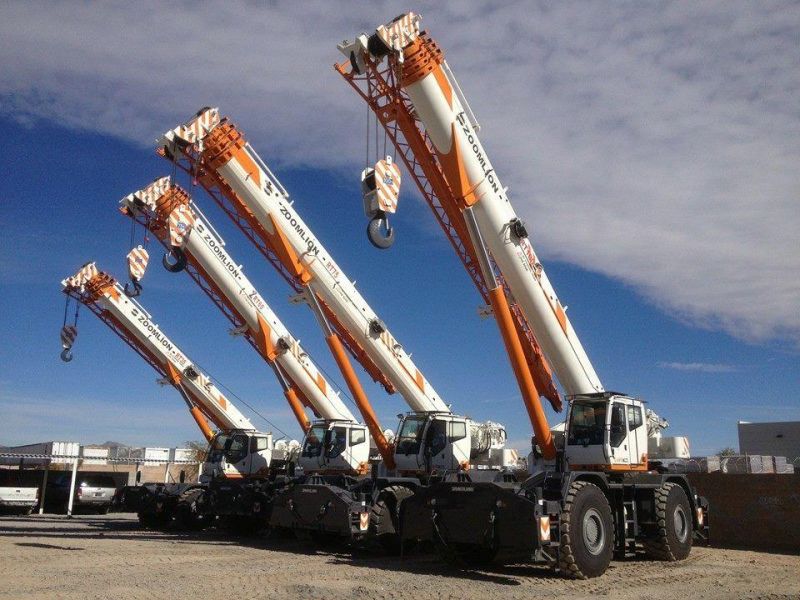

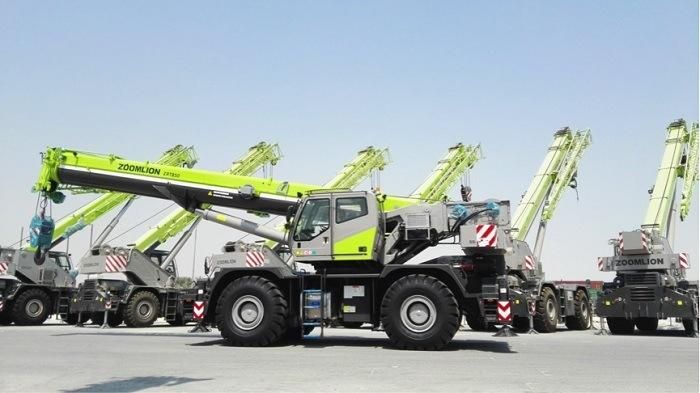

Product picture:
