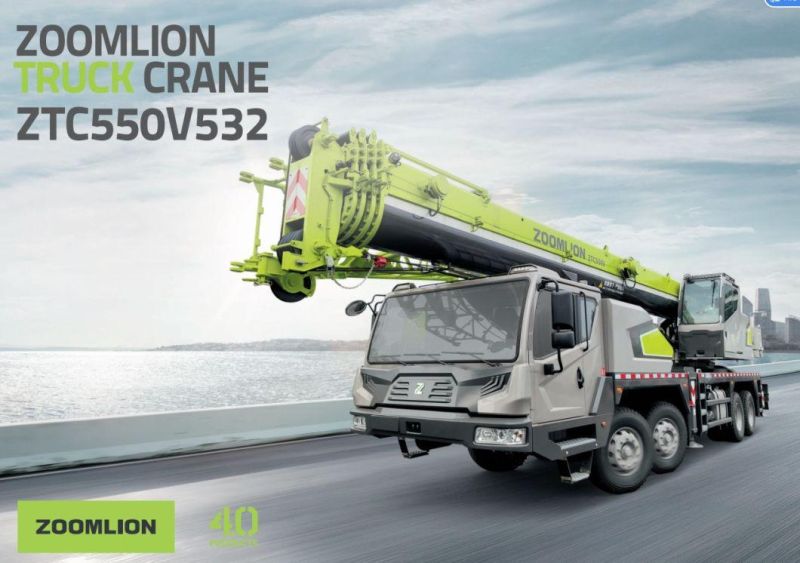

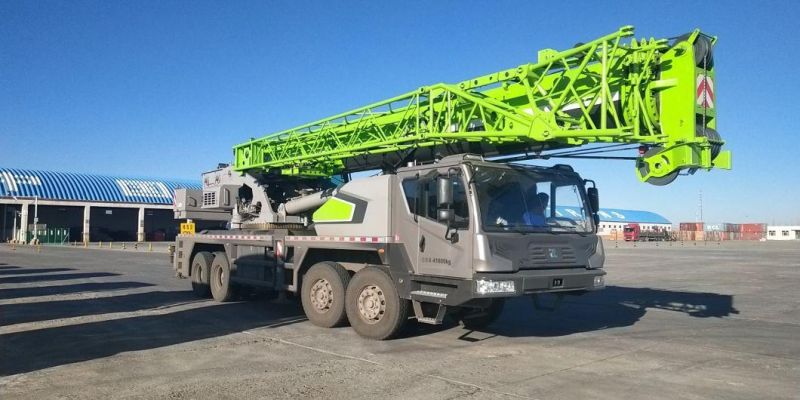

• Model NO.：ZTC550H
• Shaft Number：3
• Crane Jib：Two-Arm
• Type：Straight Arm
• Key Word：Mobile Crane
• Boom Derricking up Time：45 S
• Deadweight in Driving Condition：39000 Kg
• Transport Package：Roro,Container
• Specification：13700*2800*3650mm
• Trademark：Zoomlion
• Origin：Hunan, China
• Production Capacity：100pieces,Month

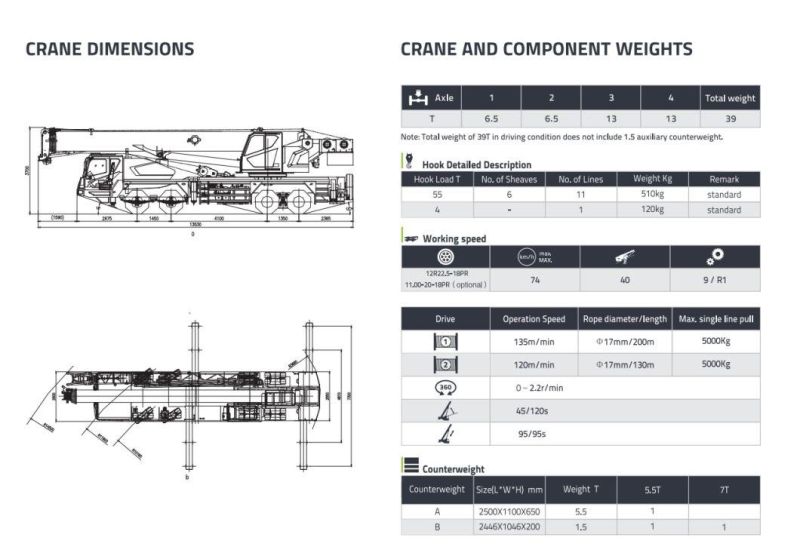

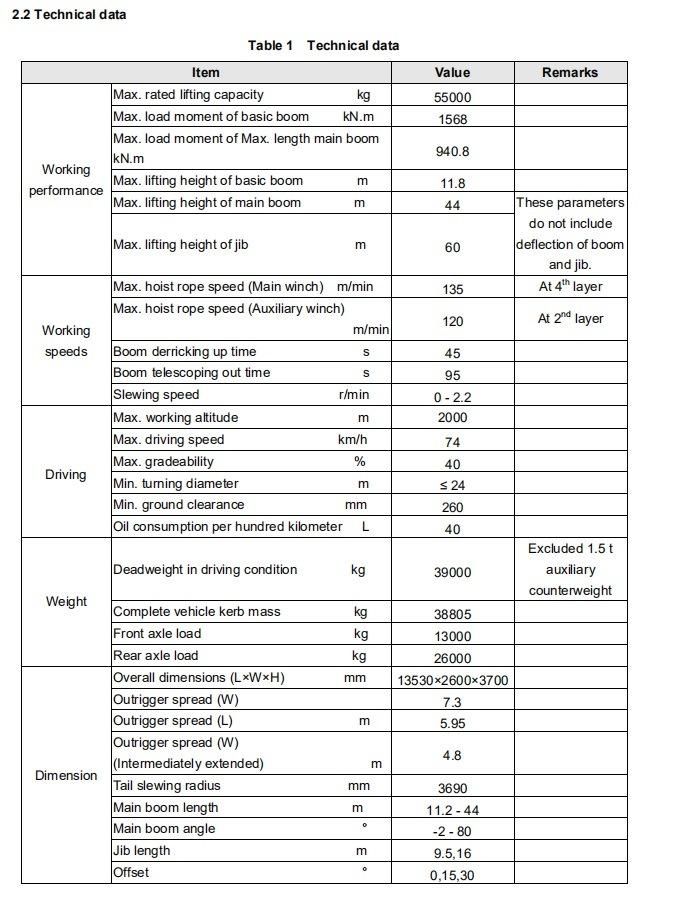

Dimension

Overall dimensions (L×W×H)         mm

13530×2600×3700

Outrigger spread (W)

7.3

Outrigger spread (L)                   m

5.95

Outrigger spread (W)

(Intermediately extended)                m

4.8

Tail slewing radius                   mm

3690

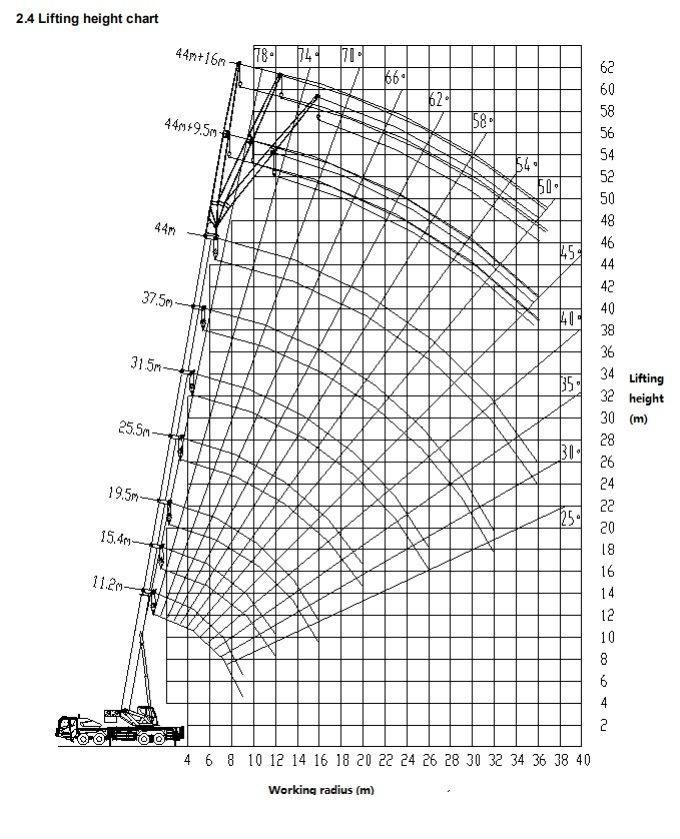

Main boom length                    m

11.2 - 44

Main boom angle                      °

-2 - 80

Jib length                            m

9.5,16

Offset                                °

0,15,30
