• Model NO.：ZTC800
• Shaft Number：3
• Crane Jib：Five-Arm
• Type：Folding
• Max. Gradeability：37%
• Slewing Speed：1.8r,Min
• Jib Length：9.5, 16.0m
• Products Type：Hydraulic Crane
• Function：Construction Crane
• Transport Package：Roro,Container,Nude
• Specification：14100× 2750× 3750mm
• Trademark：Zoomlion
• Origin：Hunan, China
• Production Capacity：100pieces,Month

Basic Info.

Model NO. ZTC800 Shaft Number 3 Crane Jib Five-Arm Type Folding Max. Gradeability 37% Slewing Speed 1.8r/Min Jib Length 9.5, 16.0m Products Type Hydraulic Crane Function Construction Crane Transport Package Roro/Container/Nude Specification 14100× 2750× 3750mm Trademark Zoomlion Origin Hunan, China Production Capacity 100pieces/Month

Product Description

Yoona Cao
 Mobile :+86-17873925674

Sinomada Heavy Industry (Changsha) Co., Ltd.
(ChinaCHINESE LEADING CONSTRCUTION MACHINERY AND SPARE PARTS EXPORTER)
Add: C2 wanda plaza, kaifu district. Changsha, China

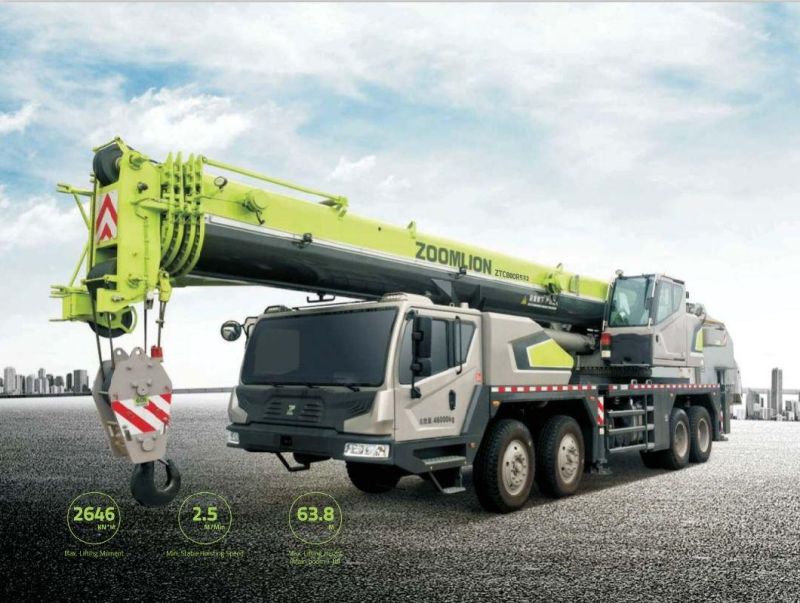

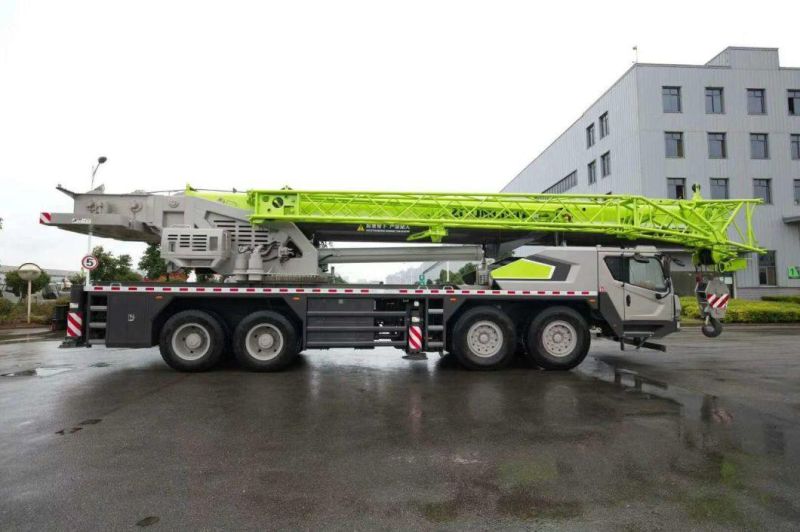

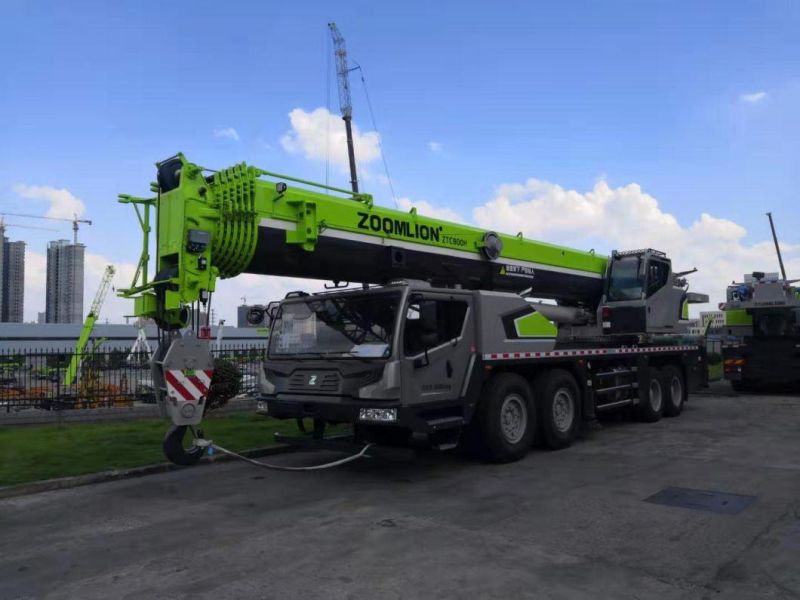

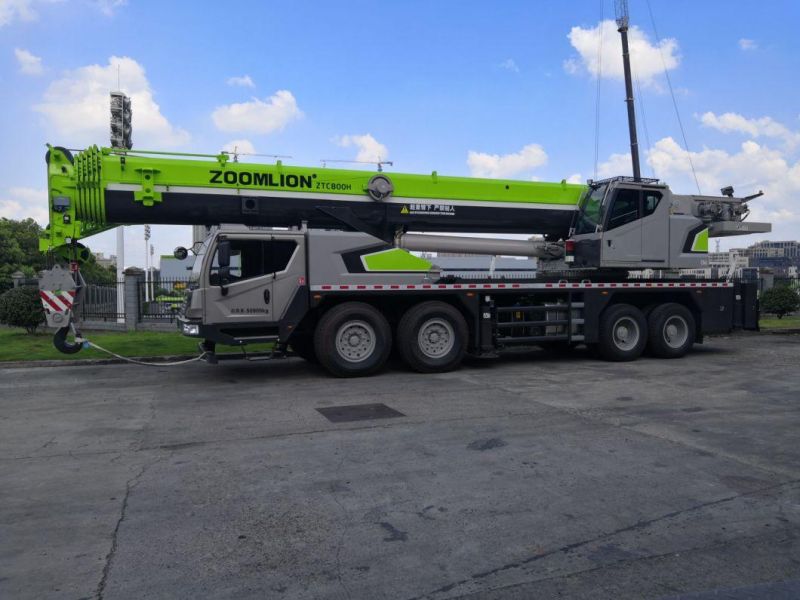

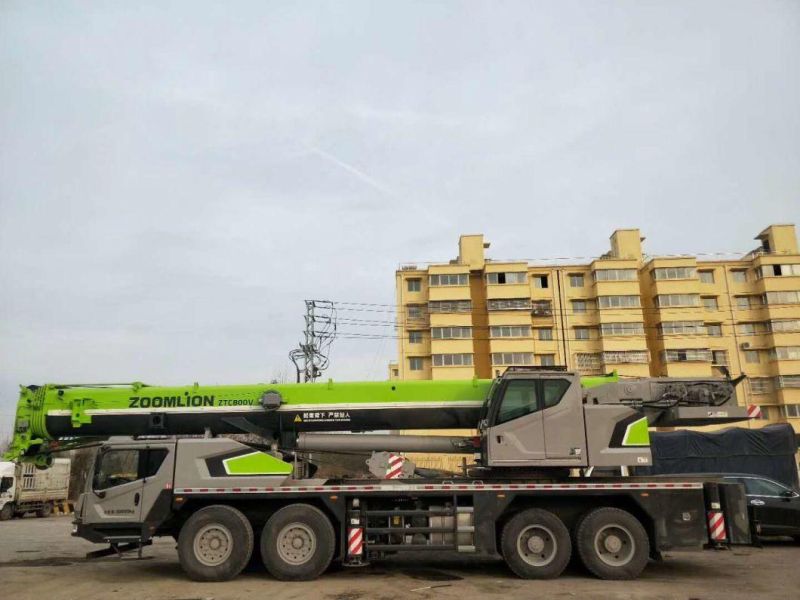

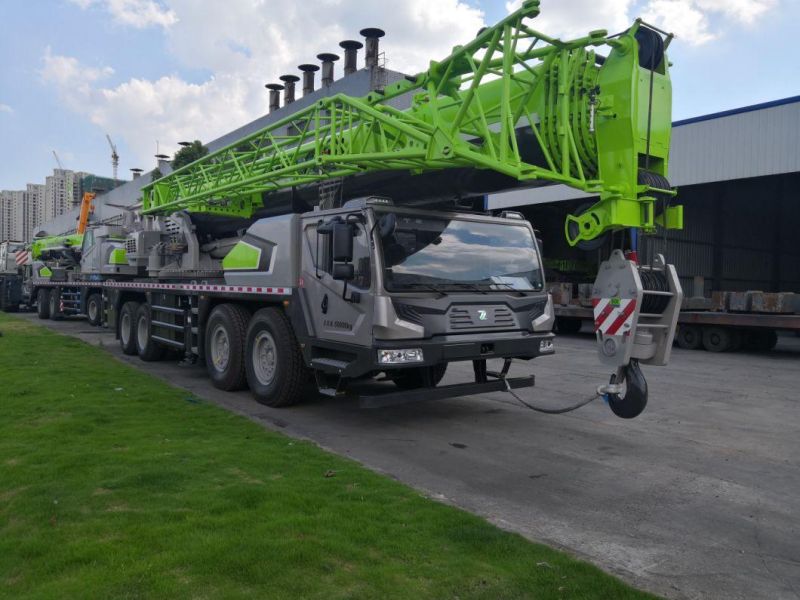

 New Zoomlion Truck Crane 80 Ton Zoomlion Cranes ZTC800

Price Of 80 Ton ZOOMLION Hydraulic Mobile Truck Crane With Mobile Crane Tyres

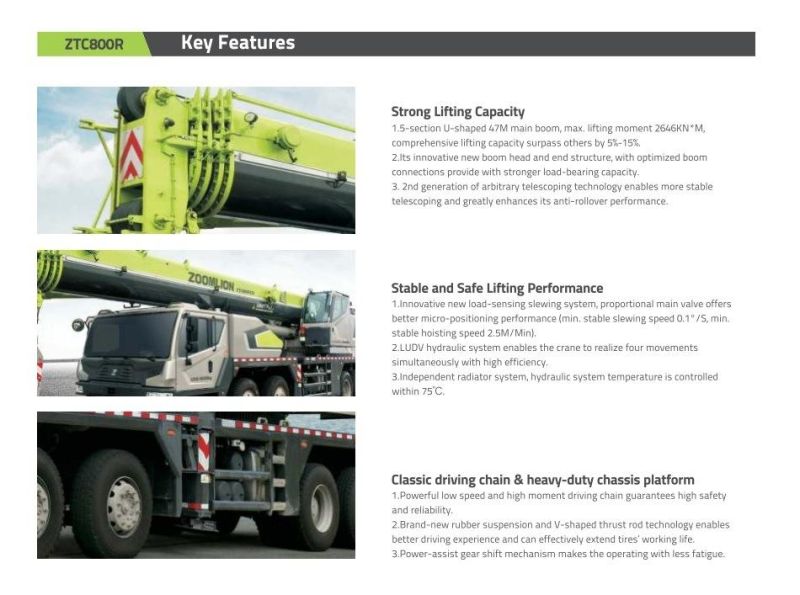

Feasures

Chassis

1. Engine: WEICHAI WP10.375E33 Diesel engine, EURO III(rated power: 276Kw)
2. Transmission: FAST brand 10 gear box with 9 forward gears and 1 reverse gear.
3. 4-axle chassis, 8 × 4 Front 2 axles are steering and last 2 axles are driving.
4. Tires :Total 12 tires with one spare tire.(12R22.5-18PR)
5. Braking system: Service brake, parking brake and emergency brake.

Upperstructure

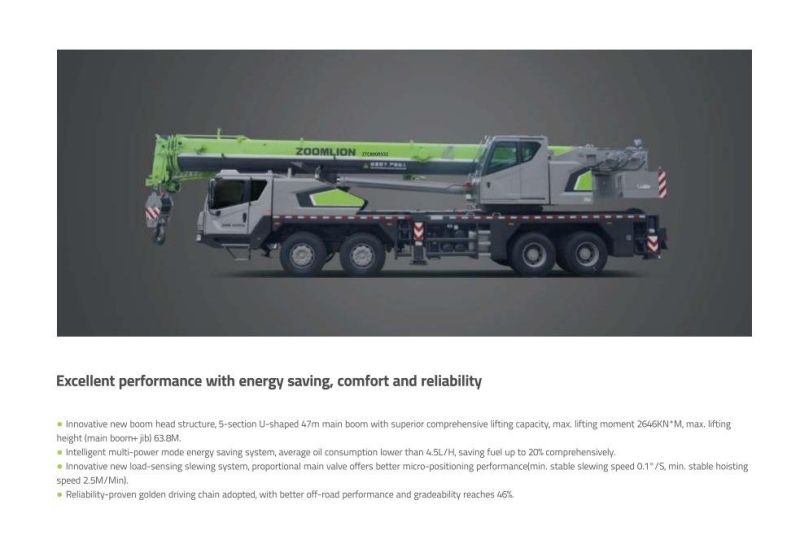

1. Boom: 5-section U-shaped main boom (12.1 m - 47.0 m)
2. Jib: two section lattice jib (9.5 m, 16m)
3. Hook: 60tons main hook + 6 tons auxiliary hook
4. 8 tons counterweight(5T fixed counterweight and 3T auxiliary counterweight)
5. Full-width cab configuring air conditioning (cool & heating)
6. Pilot-operated proportional joysticks and hydraulic proportional control system.

Certifications

1. Comply with GB3847-2005 / GB17691-2005 (China National Stage III)

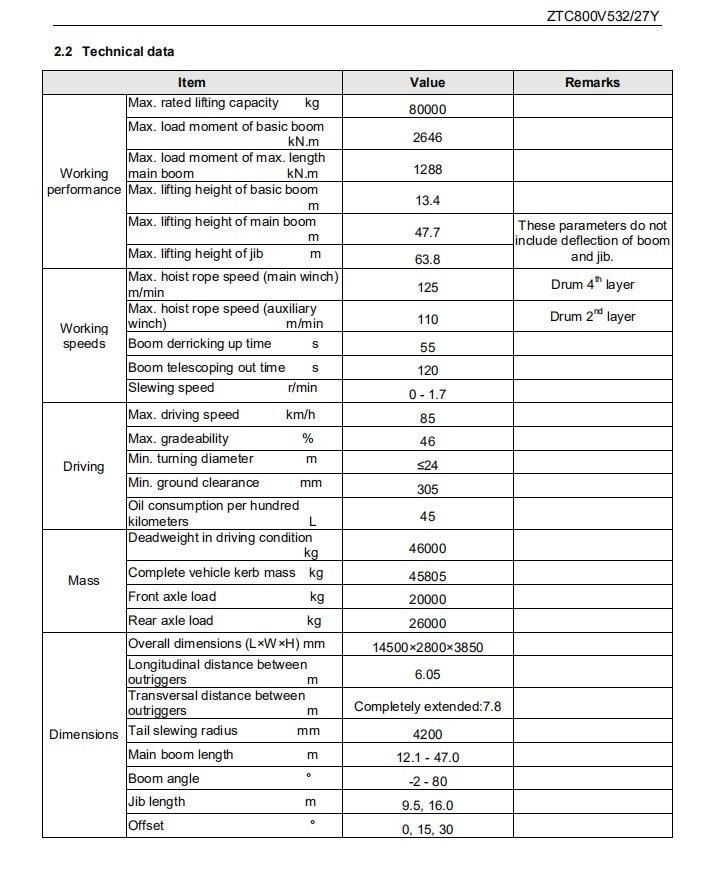

2. Working Performance
3. Max. rated lifting capacity: 80,000kg at 3m radius
4. Max. load moment of basic boom: 2,646 kN.m
5. Max. load moment of Max. length main boom: 1,288 kN.m at 10.0m radius

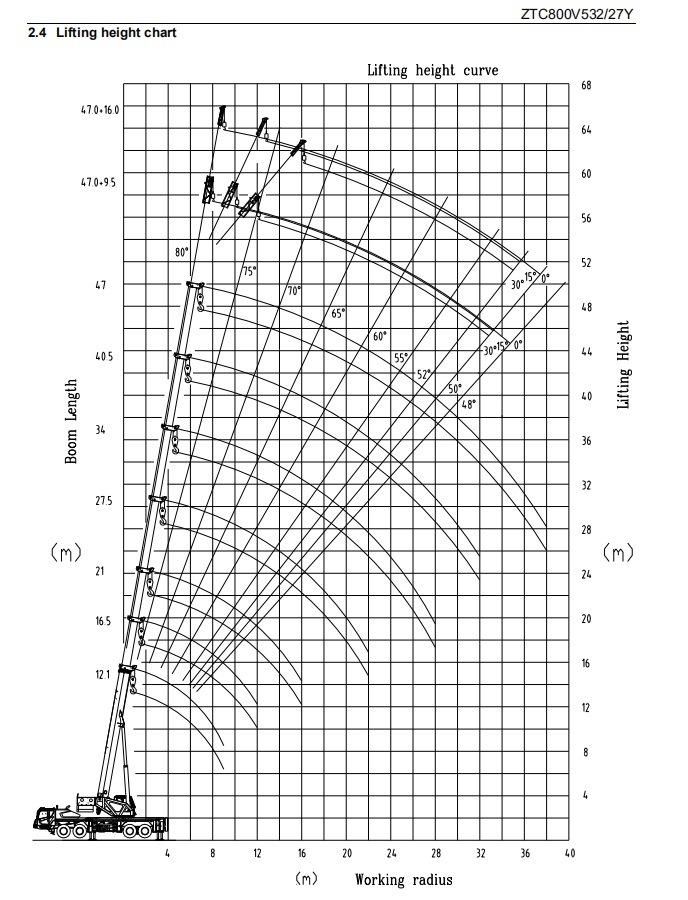

6. Max. lifting height of basic boom: 13.4m
7. Max. lifting height of main boom: 47.7m
8. Max. lifting height of jib: 63.8m
9. * The deflection of boom and jib is not deducted.

Working Operation

1. Overall dimensions (L X W X H): 14,500×2,800×3,850mm
2. Longitudinal distance between outriggers: 6.05m
3. Transversal distance between outriggers: outriggers completely extended: 7.8m; with outriggers intermediately extended: m
4. Main boom length: 12.1 - 47m
5. Main boom angle: -2 - 80°
6. Jib length: 9.6m, 16m
7. Offset: 0°, 15°, 30°

Parameters
