• Model NO.：ZTC160V451
• Type：Straight Arm
• Max.Rated Lifting Capacity：16tons
• Max. Gradeability：37%
• Max. Travel Speed：78 Km,H
• Installation：Assembled
• Operate System：Computer Board Control
• Tower Crane Type：Under Slewing Cranes
• Unique Selling Point：High Operating Efficiency
• Application：Construction Usage
• Engine Model：Weichai Engine
• Gearbox：6 Gear Synchronizer Gearbox
• Machine：Lifting Equipment
• Delivery Time：30days After Deposit Payment
• Hydraulic Parts：Telescopic Boom Mobile Crane Made
• Colour：White
• Power Source：Hydraulic
• Transport Package：Nude
• Specification：12050*2500*3400
• Trademark：Zoomlion
• Origin：Hunan, China
• HS Code：8004920
• Production Capacity：500pices,Year

ItemValueRemarksWorking performance specificationMax. rated total lifting capacitykg16000 Max. load moment of basic boomkN.m710 Max. load moment with max. main boom lengthkN.m408 Max. lifting height of main boomm31.08Deformation of boom is not taken into consideration.Max. lifting height of fly jibm38.5Working speedMax. speed of single rope on main winch
m/min120The 4th layer of drumMax. speed of single rope onauxiliary winchm/min90 Derricking time of boom s55 Telescopic time of booms70 Slewing speedr/min0~2 Traveling specificationMax. traveling speedkm/h70 Max. gradeability%28 Min. turning circle diameterm20 Min. ground clearancemm250 Limits for exhaust pollutants and smokeComply with related standardsGB3847-2005
GB17691-2005
(Stage III)Oil consumption per hundred kilometers38 L Mass specificationDeadweight of crane in traveling conditionkg23000 Complete vehicle kerb masskg22805 Front axle loadkg6200 Rear axle loadkg16800 Dimension specificationOverall dimensions (L×W×H)mm12050×2500×3400 Base on outriggersm4.95 Distance between outriggersm5.4 Main boom lengthm9.8~30.8 Main boom angle°-2~80 Fly jib lengthm7.5 Offset angle of fly jib°0 , 30 ChassisModelZLJ5261 ClassII EngineModelWP6.240 Rated powerkW/r/min176 /2500 Max. output torqueN.m/r/min800 /1300~1500 ManufacturerChangsha Zoomlion Heavy Industry Science & Technology Development Co., Ltd.

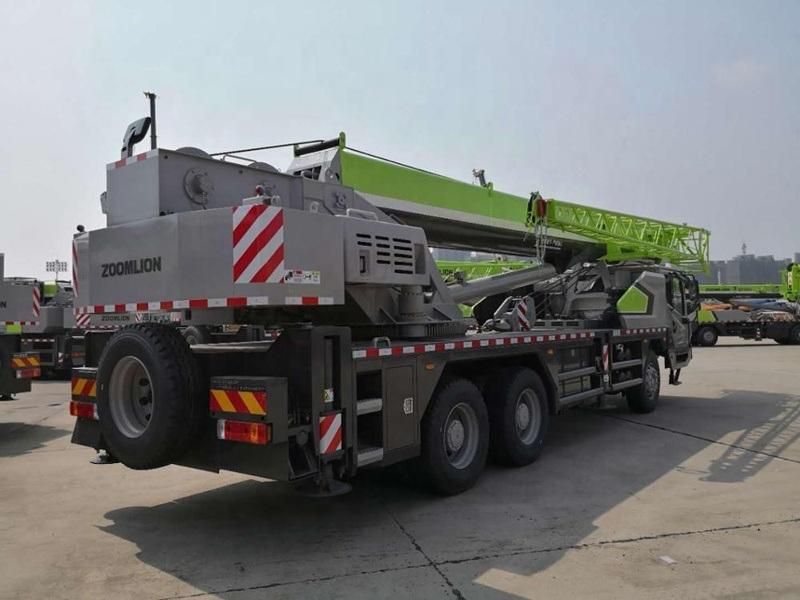

Detail Pictures
