• Model NO.：ZTC200V451
• Type：Straight Arm
• Max.Rated Lifting Capacity：20tons
• Max. Gradeability：37%
• Max. Travel Speed：78 Km,H
• Installation：Assembled
• Operate System：Computer Board Control
• Tower Crane Type：Under Slewing Cranes
• Unique Selling Point：High Operating Efficiency
• Application：Construction Usage
• Engine Model：Weichai Engine
• Gearbox：6 Gear Synchronizer Gearbox
• Machine：Lifting Equipment
• Delivery Time：30days After Deposit Payment
• Hydraulic Parts：Telescopic Boom Mobile Crane Made
• Colour：White
• Power Source：Hydraulic
• Transport Package：Nude
• Specification：12800*2500*3430
• Trademark：Zoomlion
• Origin：Hunan, China
• HS Code：8004920
• Production Capacity：500pices,Year

ItemValueRemarksWorking performancerated lifting capacitykg20000 load moment of basic boom980 kN.mload moment of boom lengthkN.m573 lifting height of basic boom m11.5 lifting height of boom m33.8Deformation of the boom is not taken into consideration.lifting height of jib m41.6Working speedhoist rope speed (main winch) m/min120At 4th layerhoist rope speed(auxiliary winch) m/min100At 2nd layerBoom derricking times40 Boom extending times60 Slewing speed r/min0~2.2 Traveling specificationstraveling speed km/h78 gradeability %37 Min. turning diameter m≤22 Min. ground clearance mm220 Limits for exhaust pollutants and smokeMeet with related standardsGB3847-2005GB17691-2005(National stage III)Oil consumption per hundred kilometers L45 WeightsDeadweight in traveling condition30000 kgComplete vehicle kerb mass kg29870 Front axle load kg6800 Rear axle loadkg23200 DimensionsOverall dimensions (L×W×H) mm12800×2500×3430 Longitudinal distance between outriggersm5.36 Transversal distance between outriggers m6.1 Boom length m10.5~33.3 Boom angle°-2~80 Jib length m8 Offset °0, 30     ChassisModelZLJ5325ClassIIEngineModelWP10.270

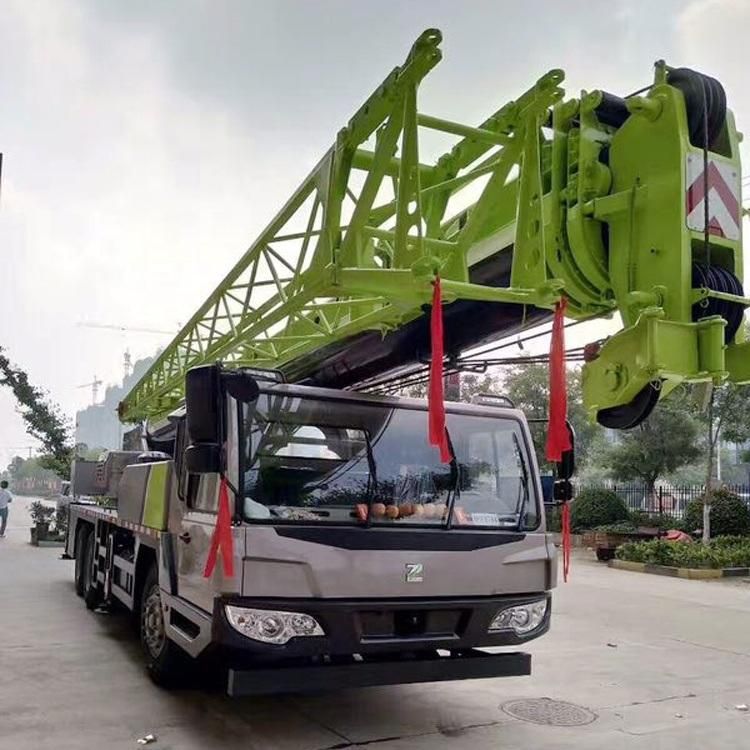

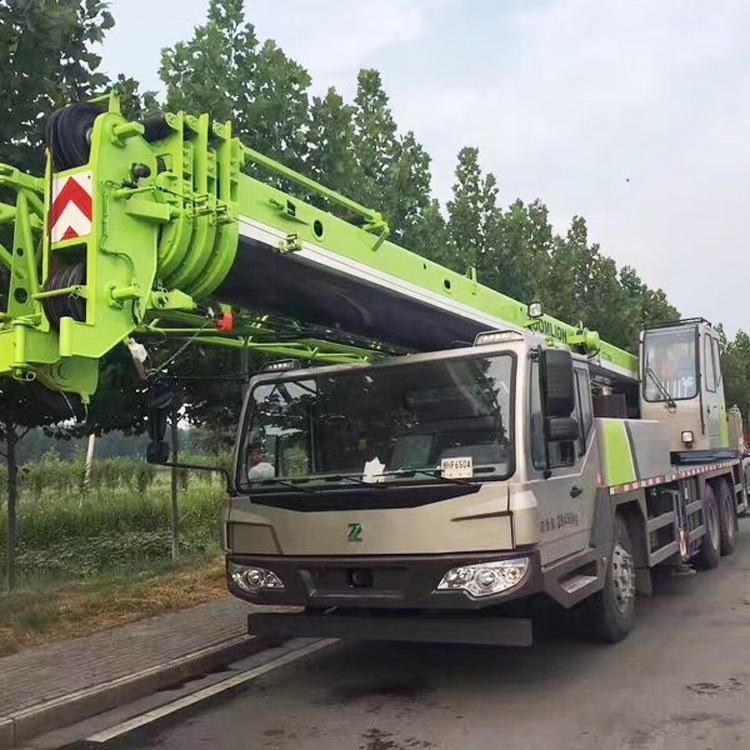

Detail Pictures
