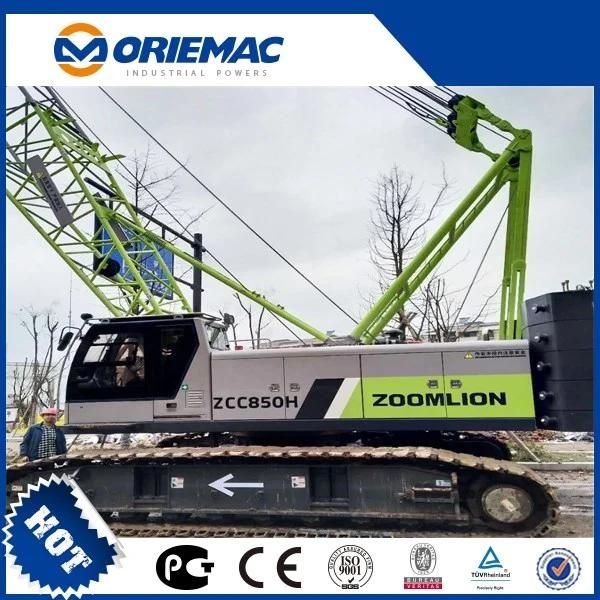

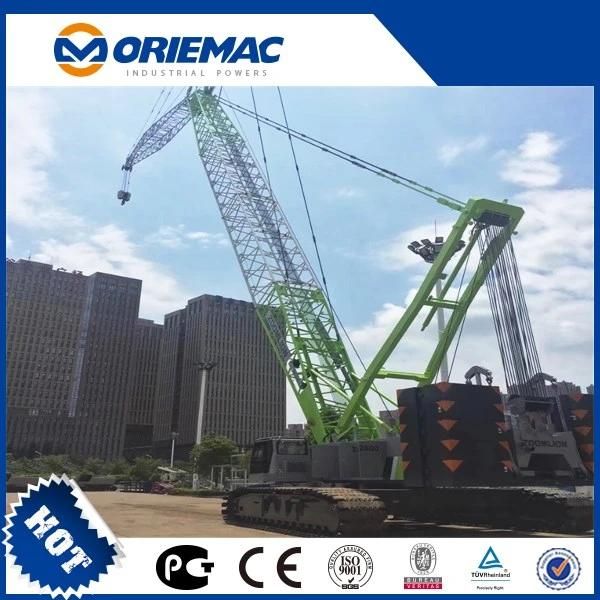

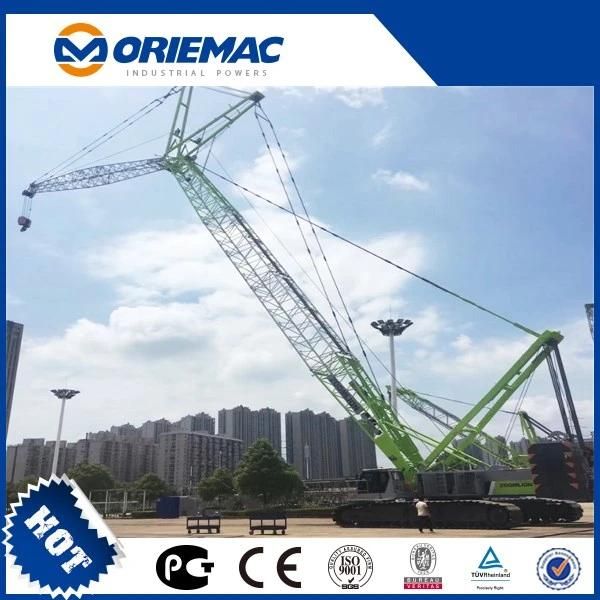

• Model NO.：ZCC550H
• Main Boom Length：13-52m
• Transport Package：Nude Packing
• Specification：7250*2580*3290mm
• Trademark：Zoomlion
• Origin：China
• HS Code：84291190
• Production Capacity：100 Units,Month

ItemUnitValueRemarksMax. lifting capacity × radiust × m55×3.7 Max. lifting capacity on fixed jibt5.5 Max. lifting capacity of luffing jibt12 Main boom lengthm13 - 52 Fixed jib lengthm6 - 15 Max. length of main boom with fixed jibt43+15 Luffing jib lengthm16m-28m Max. main boom +max. luffing jibm40mm+28mm Derricking angle.30 - 80 Fixed jib angle.10,30 Max. rope  speed
of winchesHoisting winch 1m/min125/100With optional free-fall functionHoisting winch 2125 Derricking winch80 Slewing speedrpm

0-2.1

 Traveling speedkm/h0-1.6 Max. gradeability%30With basic boom and counterweight over frontGround pressureMpa0.068 Deadweightt50.5With basic boomCrane counterweightt17.5 Overall dimensions(L × W × H)m12800×4600(3300)×3120With A-frame and main boom pivot sectionEngineModel WP6G190E26Manufacturer:Weichai Power CO, Ltd.Rated power / rotational speedkW/r/min140/1900Max. output torque /rotational speedNm/r/min830/1300Exhaust emission National StageDistance between track center × crawler contact length × crawler widthmm2540 ×5000×760Crawler carrier retracted3840 ×5000×760Crawler carrier extended NoiseNoise level outside operator's cab during operation(dB)≤107 Noise level in operator's cab during operation≤85
