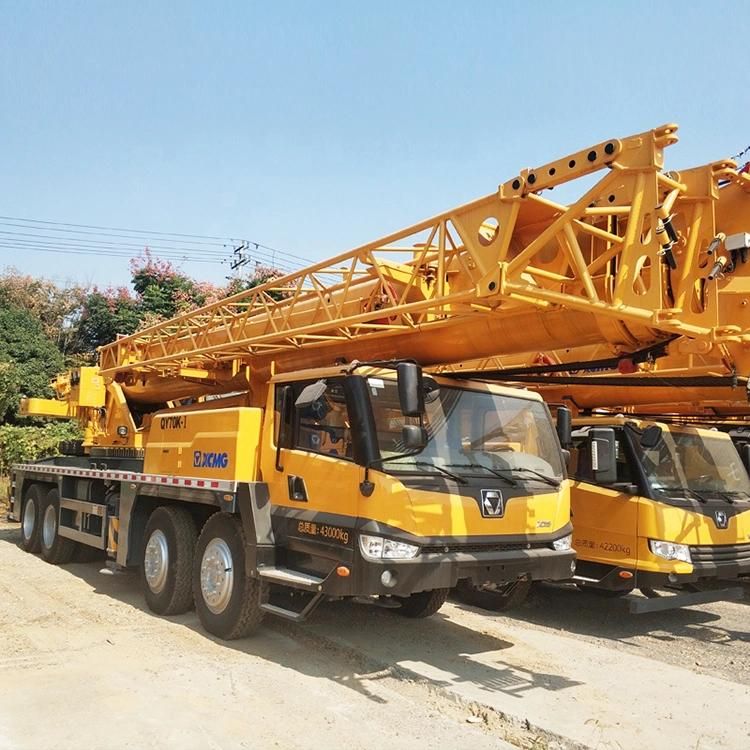

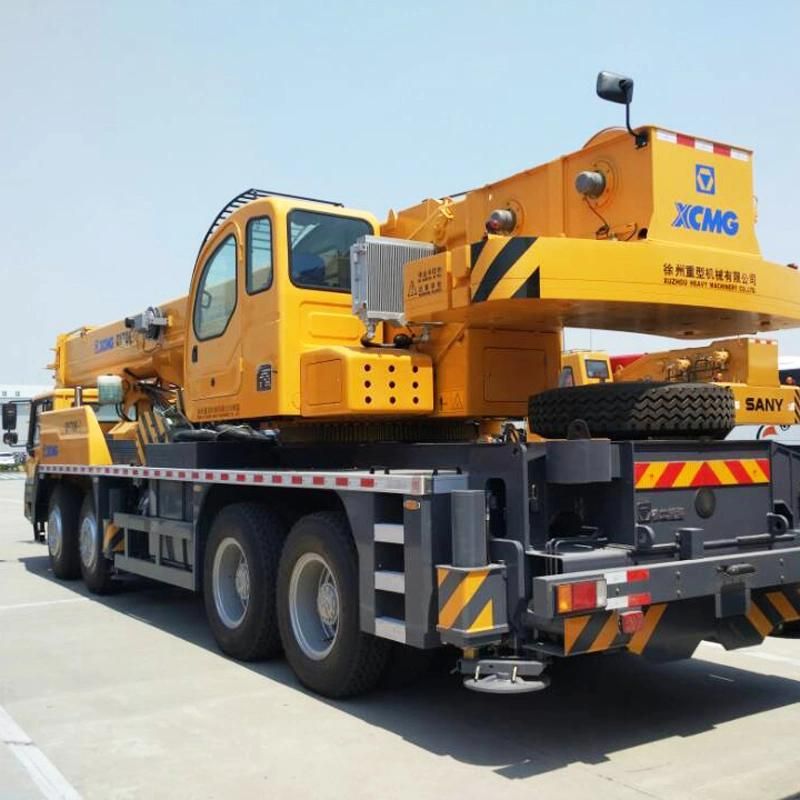

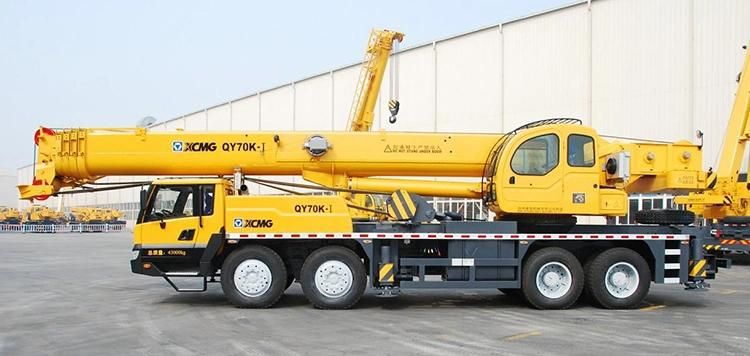

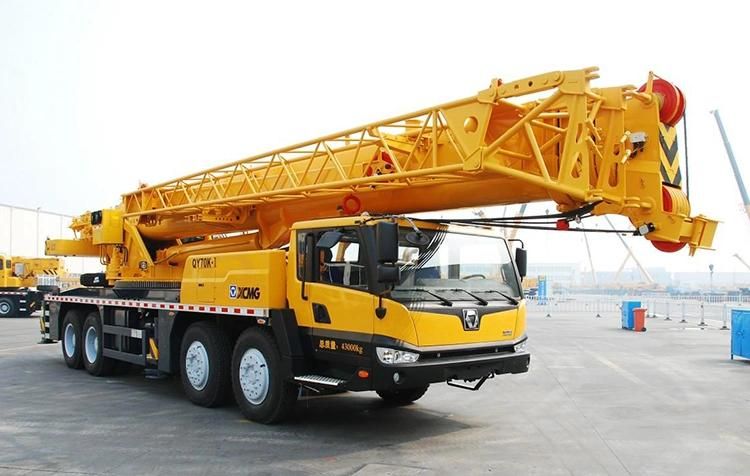

• Model NO.：Qy70k-I
• Type：Truck Crane
• Overall Length：13930mm
• Overall Width：2800mm
• Overall Height：3575mm
• Transport Package：Comply with Export Packaging Requirements
• Specification：ISO
• Trademark：XCMG
• Origin：Xuzhou, Jiangsu, China
• HS Code：87051022
• Production Capacity：10000,Year

           ItemQY70K-I  parameterUnitDimensionsTotal length13930mmTotal  width2800mmTotal  height3575mmWeightoperation in travel state 43000(not included 1t auxiliary counterweight)KgFront axle load   17000KgRear axle load26000KgPowerEngine modelEuro III hangfa WD615.338 Engine rated output276/2200Kw(r/min)Engine rated torque1500/1400N.m(r/min)TravelMax.travel speed80Km/hMax. turning diameter24mmMax. ground clearance327mmApproach angle19/18.Departure angle11.Max. grade ability40%Fuel consumption of 100km45LLifting
performanceMax. total rated lifting load50tMin. rated working radius3000mTurning radius at swing table tail3.55mmMax. load moment2303 Base boom11.6Kn.mFully-extended main boom 44.5mFully-extended main boom+ luffing jib59.5mOutrigger longitudinal span6.1mOutrigger lateral span7.3mWorking speedBoom  luffing  time60sBoom  full elevating  time≤150sMax. slewing speed≥2.0r/minMain hoist  max. speed(single rope)≥130m/minAuxiliary hoist max. speed(single  rope )≥180m/min
