Brand New Qy25K5d 25 Ton Telescopic Boom Mini Hydraulic Mobile Truck Crane
Oriemac Machinery & Equipment (Shanghai) Co., Ltd.- After-sales Service:Yes
- Warranty:Yes
- Certification:GS, RoHS, CE, ISO9001
- Condition:New
- Maximum Lifting Height:25-30m
- Maximum Lifting Weight:>16t
Base Info
- Model NO.:Qy25K5D
- Shaft Number:3
- Crane Jib:Four-Arm
- Type:Straight Arm
- Color:Yellow
- Power Source:Hydraulic
- Sling Type:Wire Rope
- Max. Travel Speed:80km,H
- Min. Turning Diameter:22m
- Max. Lifting Torque:961kn.M
- Total Weight in Trave:21750 Kg
- Min. Ground Clearance:260 mm
- Min. Rated Working Radius:3000 mm
- Base Boom:10.4m
- Transport Package:Nude, Suitable for Shiping
- Specification:ISO
- Trademark:ORIEMAC
- Origin:Jiangsu, China
- Production Capacity:100 Sets,Month
Description
Basic Info.
Model NO. Qy25K5D Shaft Number 3 Crane Jib Four-Arm Type Straight Arm Color Yellow Power Source Hydraulic Sling Type Wire Rope Max. Travel Speed 80km/H Min. Turning Diameter 22m Max. Lifting Torque 961kn.M Total Weight in Trave 21750 Kg Min. Ground Clearance 260 mm Min. Rated Working Radius 3000 mm Base Boom 10.4m Transport Package Nude, Suitable for Shiping Specification ISO Trademark ORIEMAC Origin Jiangsu, China Production Capacity 100 Sets/MonthProduct Description
Brand New Qy25K5D 25 Ton Telescopic Boom Mini Hydraulic Mobile Truck CraneSpecification:
1. Rated Loading Capacity: 25ton
2. Engine: SC8DK280Q3
3. Rated power: 206kW
Feature:
1. Specialized boom of octagonal cross section has features of light deadweight, better strength and strong lifting capacity.
2. Advanced built-in boom head, strong structural members and lower sliders with larger area contribute to better stress-bearing capacity and more smooth telescoping movement, and efficiently prevent boom torsion after side loading.
3. Telescoping mechanism is designed reliably. In the telescoping mechanism, both rotation-resistant rope used for thick cable and guide pulley bearing are imported parts and have reliable performance.
4. Excellent welding technology for structural members. Welding robot with advance process used for key welding make reliable quality products.
5. Ferrule-type compression joints are used for pipeline, have features of reliable connection, better tightness and less leakage.
Adavntages:
Leading performance: The boom length in full extension is 39.5m, the performance leading in 5%. The grade ability is 40%, which make the machine have good road adaptability.
The unique U boom and plug-in boom head make the load-carrying capacity more balanced, and lift more smoothly.
The unique stretch and retract technique prevents the misoperation; The stretch and retract of the boom is safer and more reliable.
The control system is optimized by 8 patents; Lifting, rotation, and luffing are easy and reliable.
Six unique technologies supply the quality assurance, and make the products keep a high value.
The innovative jib system adopts embedded block, plug-in boom head and octagon jib, which has excellent lifting performance and safe and reliable lifting work.
The unique stretch and retract technique avoids the bend of the core pipe and cylinder and the break of the boom caused by misoperation, improving the safety of the operations.
Eight patent techniques ensure the smooth, high efficiency and energy conservation of the lifting, rotation, and luffing systems.
Adopt the new hydraulic motor with big torque starting point, making the secondary lifting safer.
The torque limiter adopts colorful LCD display, realizing the intelligence of the failure diagnosis. The precision is ahead of the industry.
The humanity design makes the cab and control cab more spacious, and easy to operate.
Six unique manufacturing technologies ensure the high quality.
Parameter:
Category | Item | Unit | Parameter | |
Dimension Parameter | Overall length | mm | 12680 | |
Overall width | mm | 2500 | ||
Overall height | mm | 3400 | ||
Wheel base | mm | 4425+1350 | ||
Wheel track | mm | 2074/1834/1834 | ||
Weight Parameter | Total mass under driving status | kg | 32800 | |
Axle load | Front axle | kg | 7300 | |
Back axle | kg | 25500 | ||
Kinetic Parameter | Engine type | SC9DF290Q4 | ||
Engine power rating | kw/(r/min) | 213/2200 | ||
Rated torque of engine | N.m/(r/min) | 1200/1400 | ||
Running Parameter | Maximum travel speed | km/h | 90 | |
Minimum diameter of turning circle | m | 22 | ||
Minimum ground clearance | mm | 275 | ||
Approach angle | ° | 11 | ||
Departure angle | ° | 12 | ||
Braking length (the speed is 30km/h) | m | ≤10 | ||
Maximum gradeability | % | 41 | ||
Fuel consumption per hundred kilometers | L | ≤32 | ||
Noise Parameter | Car exterior noise when speeding up | dB(A) | 88 | |
Noise around the driver's ear | dB(A) | 90 |

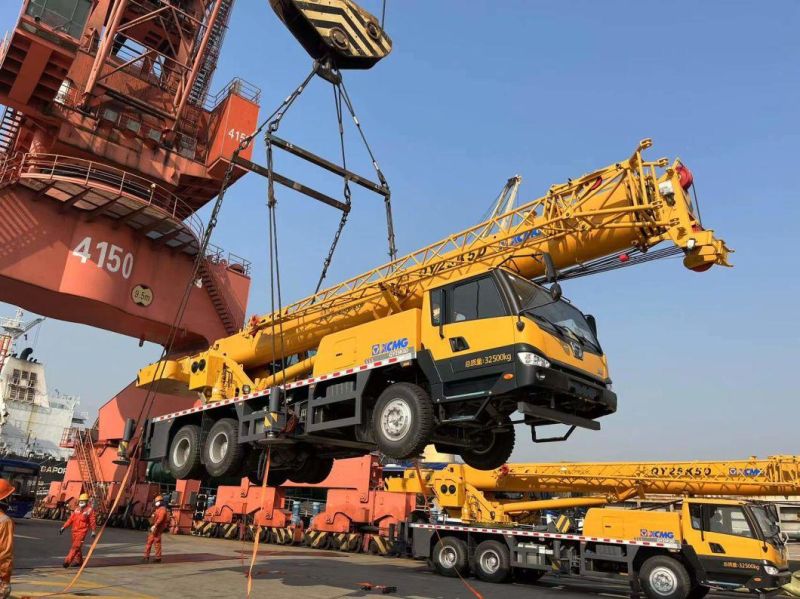

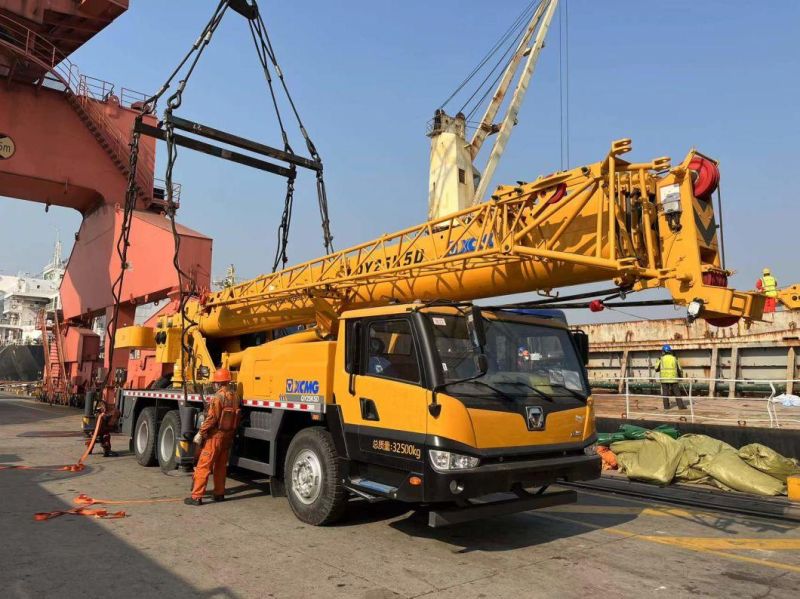

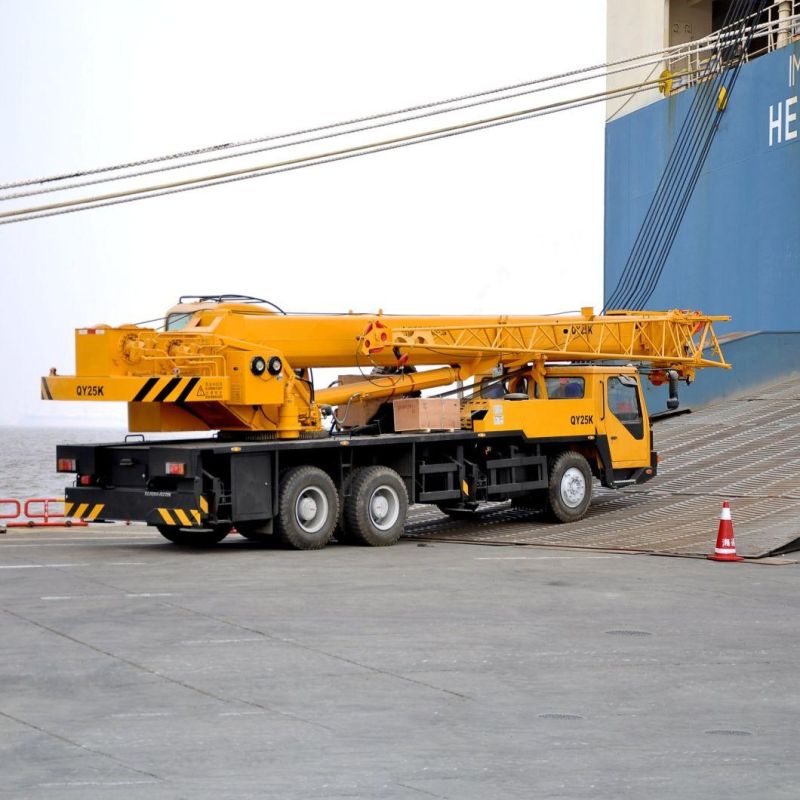

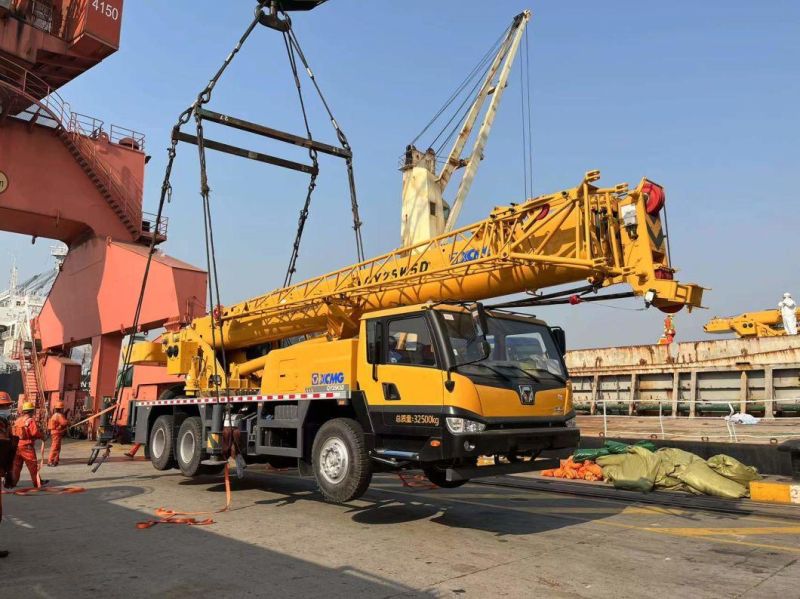

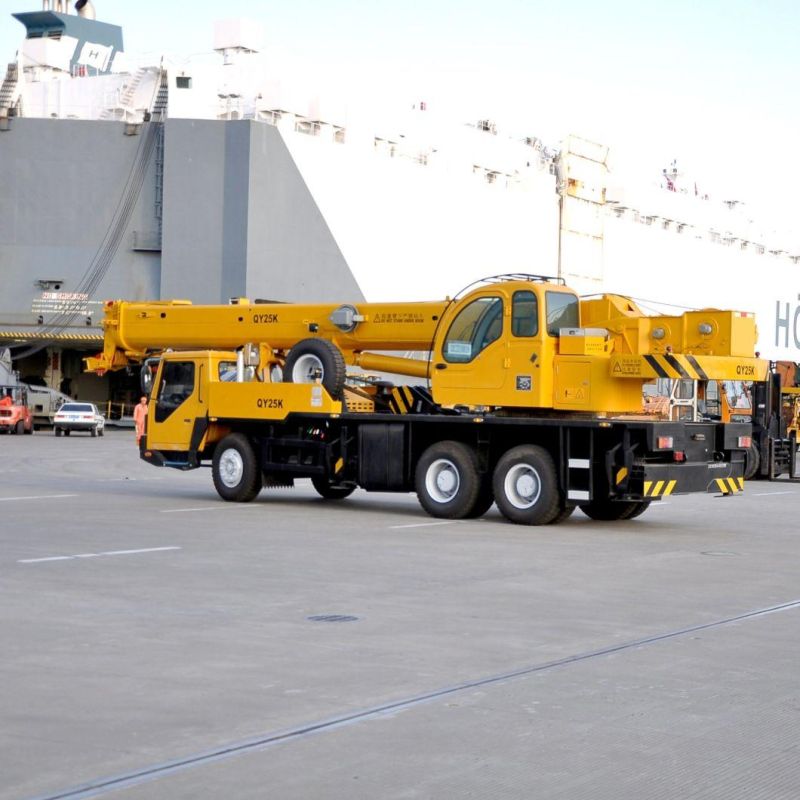

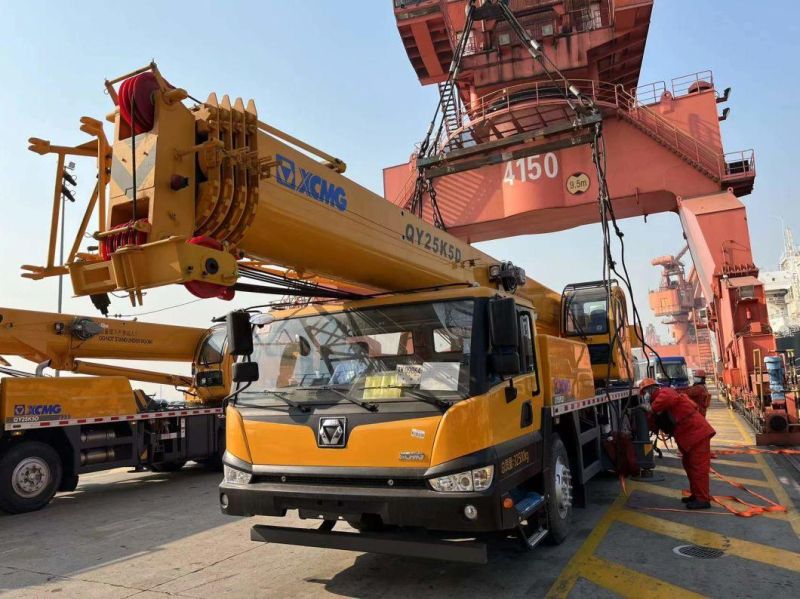

Photo show:
