• Model NO.：SCC550A
• Boom Length：13 - 52 M
• Crane Type：Crawler Crane
• Max Travel Speed：0-1.3 Km,H
• Model Name：Scc550A
• Max.Lifting Capacity：55 Ton
• Jib Length：6.1 - 15.25 M
• Rated Power：154kw,2200rpm
• Full Extend Boom + Jib Length：43 + 15.25m
• Largest Lifting Moment：203.5 T.M
• Transport Package：40fr+5*40hq
• Specification：12200x3000x3300 mm
• Origin：China
• HS Code：8426491000
• Production Capacity：1000pes,Year

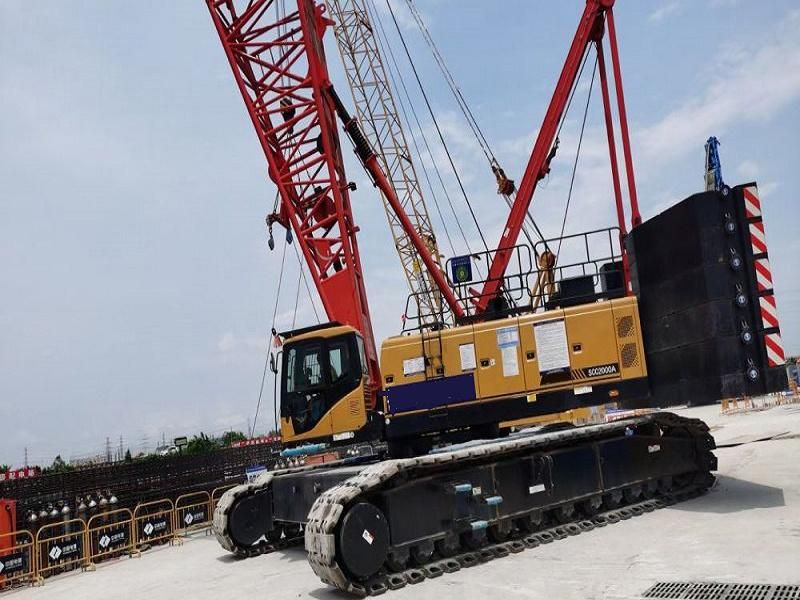

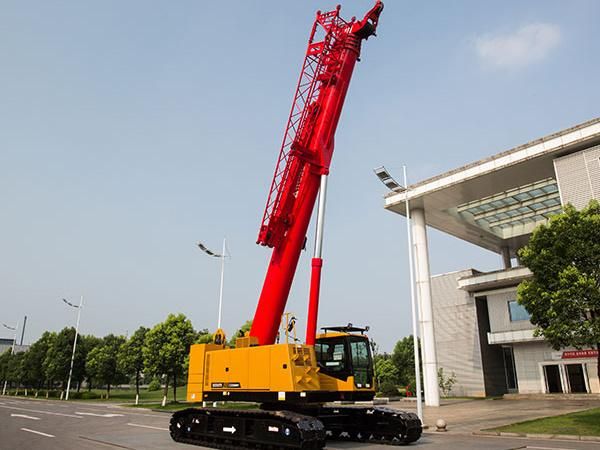

SCC550A crawler crane's maximum lifting capacity is 55 tons, with multifunctional boom system, the crane may support a combination of up to 11 types of operating conditions. The 55 ton crawler tower suits for various business requirements.ParametersModelSCC450ASCC550ASCC600ASCC750ASCC800ABoom Luffing Angle-2~78°-2-78°-2~78°30~80°30~80°Jib Angle10,15,20°10,30°10,15,20°0,15,30°15,30°Longest Boom + Longest Jib31+15.25m43+15.25m43+15.25m45+18m48+18mMax Boom Length40m52m52m57m57mMax Jib Length15.25m15.25m15.25m18m18mMax Lifting Capacity45T55T60T75T80TMax Lifting Moment150t/m203.5t/m222t/m288t/m350t/mMax Rated Lifting Capacity45T55T60T75T80TModel/DisplacementDCECQSB5.9-C210DCECQSB5.9-C2106HK16HK16HK1Rated Power154kW154kW212kW212kW212kWRevolution Speed2200rpm2200rpm2000rpm2000rpm2000rpmPictures
