• Model NO.：SQ10ZA3
• Shaft Number：3
• Crane Jib：Four-Arm
• Type：Folding
• Color：According Customer Requirement
• Painting：Galvanized, Anti Oxidation
• Materials：Hq60, Hq70, Q345
• Boom Type：Knuckle Boom
• Max Working Radius：9.57m
• The Min Capacity：1, 600kg
• Installation Space：1, 200mm
• Self Weight：3, 250kg
• Rotation Angle：380.
• Product Name：Knuckle Boom Truck with Crane 10 Ton
• Transport Package：Wooden Cases
• Specification：2372*1080*2418
• Trademark：BOB-LIFT
• Origin：Xuzhou, China
• HS Code：83269100
• Production Capacity：100 Sets,Month

SQ10ZA3 Max Lifting Capacity Ton 10 Max Lifting Moment Ton.m 20 Recommend Power KW 25 Hydraulic System Flow L/min 40 Hydraulic System Pressure MPa 28 Oil Tank Capacity L 160 Installation Space mm 1200 Self Weight kg

3250

 Rotation Angle °380

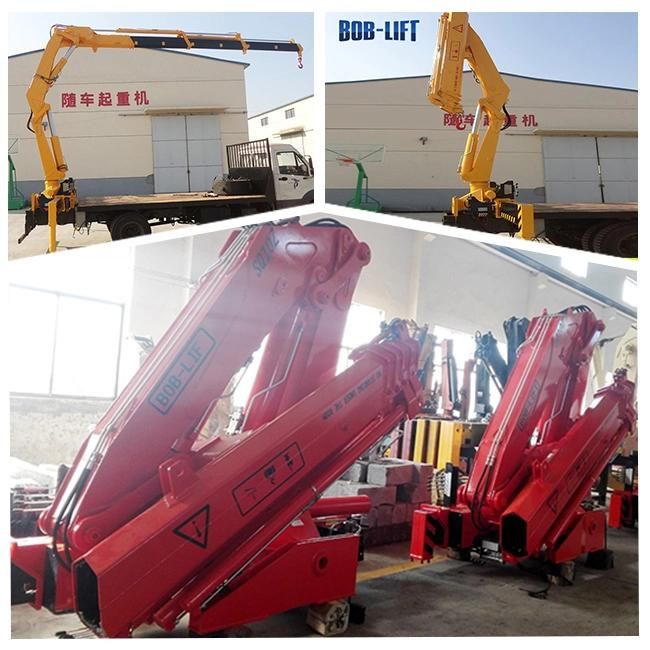

PRODUCT PICTURES

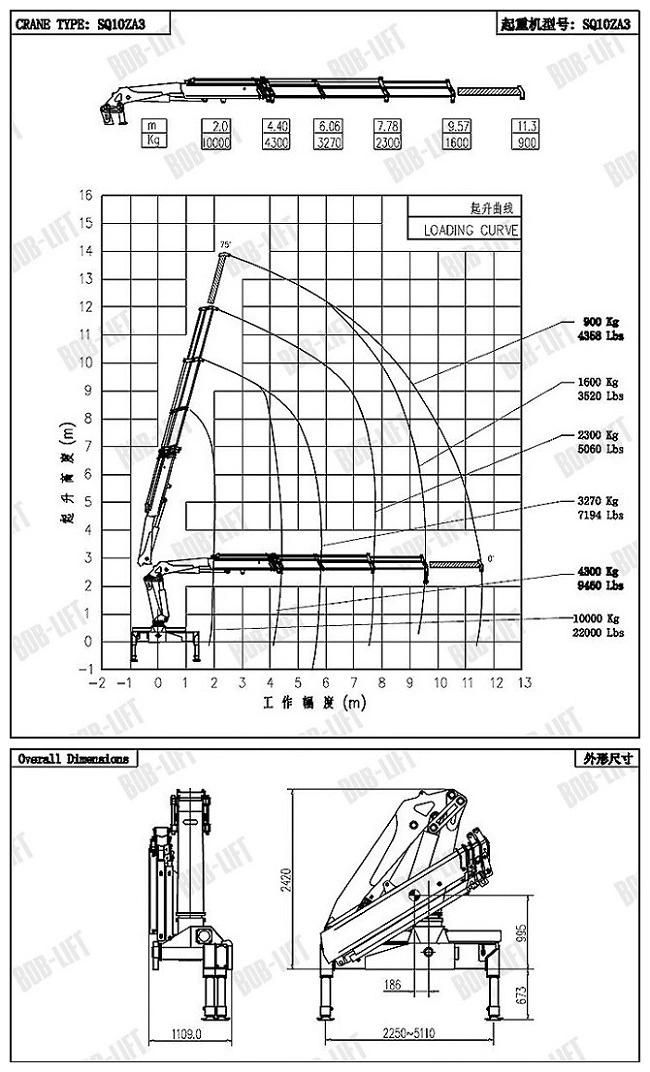

TECHNICAL DATA



PACKING DETAILS

CERTIFICATE


FAQ

1. Factory History?

16 Years production, 10 years export experience.

2. Steel material manufacturer?
Shanghai Baosteel

3. Type of the boom?
Hydraulic boom+jib/manual boom(optional attachment)

4. How to finish the preshipment inspection?
Factory Inspection, video provided

5. Optional Attachments

Remote Control, Moment Limited Valve, Top Seat, Work Basket, Assistant Stabilizer leg...
