12 Ton Hydraulic Knuckle Boom Self Loader Truck Mounted Crane
XUZHOU BOB-LIFT CONSTRUCTION MACHINERY CO., LTD.- Certification：CE, ISO9001
- Condition：New
- Maximum Lifting Height：10-15m
- Maximum Lifting Weight：11-13t
- Shaft Number：3
- Crane Jib：Four-Arm
Base Info
- Model NO.：SQ12ZA3
- Type：Folding
- Control System：Hydraulic System
- Color：Color Can Be Selected by Customers
- Power：Hydraulic System
- Max Elevation Angle：75 Degree
- Property：Safe and Reliable
- Boom：2 Sections
- Remote Control Equipment：Optional Attachments
- Hydraulic Parts：Made in Italy
- Arm Type：Knuckle Folding Arm
- Quality：Reliable
- Name：Truck Mounted Hydraulic China Articulated Lifting
- Transport Package：Wooden Box
- Specification：12 ton
- Trademark：BOB-LIFT
- Origin：Made in China
- HS Code：84269100
- Production Capacity：100 Sets,Month
Description
SQ12ZA3 Max Lifting Capacity Ton 12 Max Lifting Moment Ton.m 27 Recommend Power KW 30 Hydraulic System Flow L/min 55 Hydraulic System Pressure MPa 28 Oil Tank Capacity L 160 Installation Space mm 1400 Rotation Angle ° 380

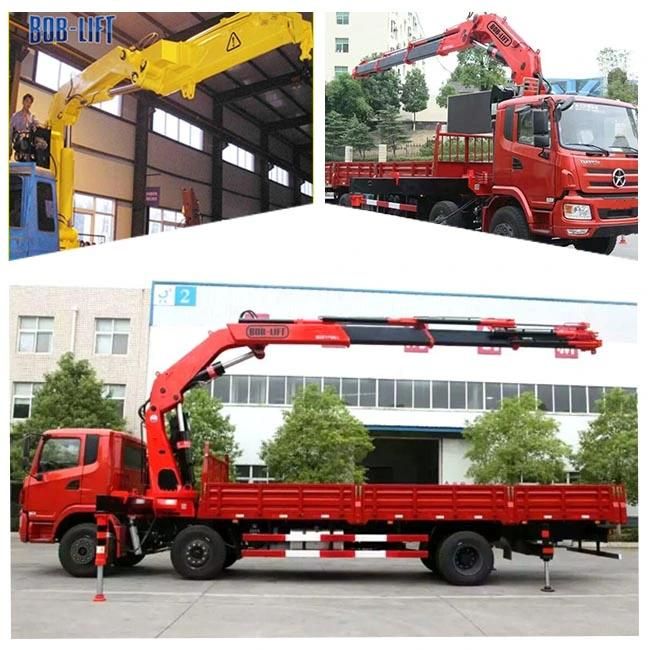

PRODUCT PICTURES

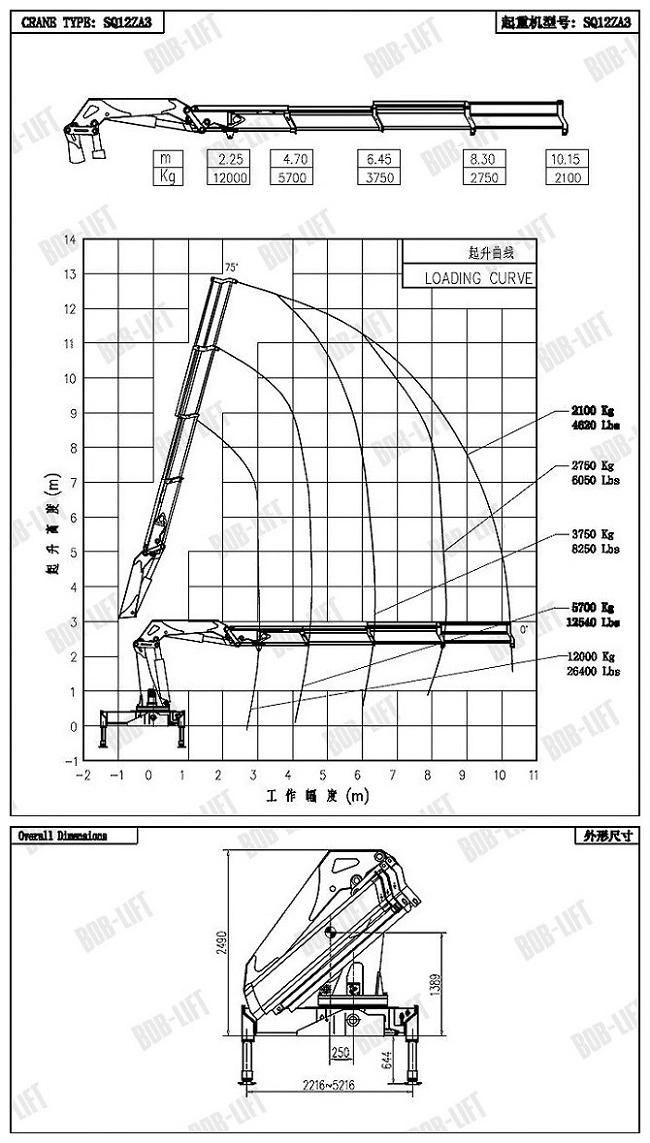

TECHNICAL DATA
PACKING DETAILS
CERTIFICATE
FAQ
1. Factory History?
16 Years production, 10 years export experience.
2. Steel material manufacturer?
Shanghai Baosteel
3. Type of the boom?
Hydraulic boom+jib/manual boom(optional attachment)
4. How to finish the preshipment inspection?
Factory Inspection, video provided
5. Optional Attachments
Remote Control, Moment Limited Valve, Top Seat, Work Basket, Assistant Stabilizer leg...
