• Model NO.：SCC1350A
• Max Lifting Moment：720TM
• Max Boom Length：76m
• Engine：Cummins, Weichai
• Transport Package：Nude Package, Containers
• Specification：135T crawler crane
• Trademark：SA,NY
• Origin：Hunan, China
• HS Code：8426491000
• Production Capacity：100 Sets,Month

Basic Info.

Model NO. SCC1350A Max Lifting Moment 720TM Max Boom Length 76m Engine Cummins, Weichai Transport Package Nude Package, Containers Specification 135T crawler crane Trademark SA/NY Origin Hunan, China HS Code 8426491000 Production Capacity 100 Sets/Month

Product Description

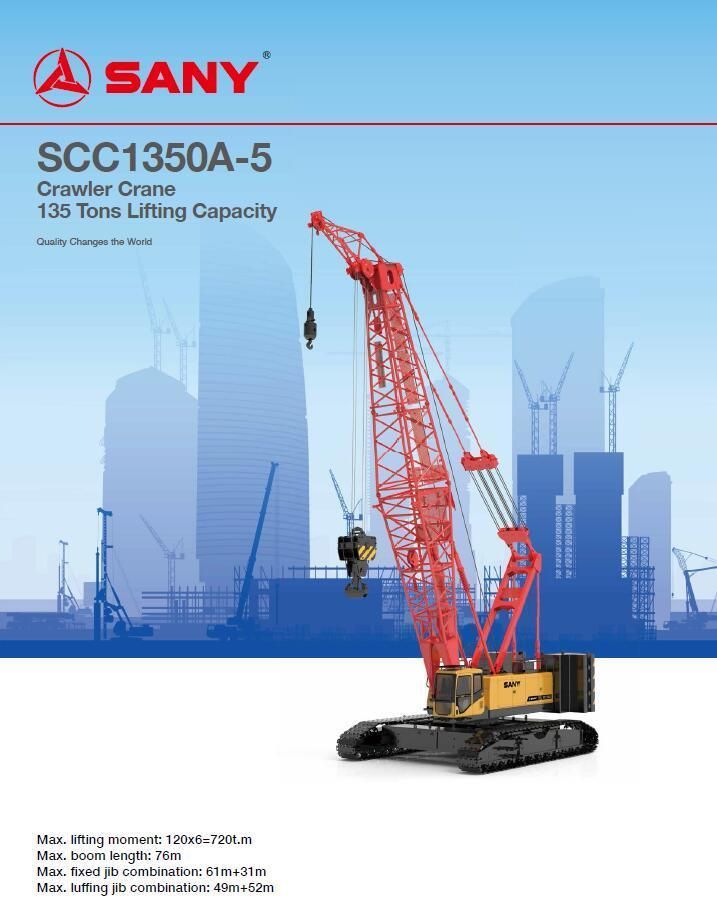

SCC1350A-5 135t Crawler Crane for sale with Cummins Engine

Max. lifting moment: 120x6=720t.m
Max. boom length: 76m
Max. fi xed jib combination: 61m+31m
Max. luffi ng jib combination: 49m+52m

NEW GENERATION OF INTELLIGENT CAB
Novel operator's cab with fashionable profile and nice interior.
There are low and high-beam lights, back-view mirror, heater and A/C, radio and other functions.

EASY TO TRANSPORT
Transport performance in line with global standards, low transport costs.

INTELLIGENT CONTROL SYSTEM
Self-developed SYIC-II integrated control system is adopted with higher integration, precise operation and reliable quality.

Engine
▪▪Model: DCEC (Cummins China) QSL8.9-C325 Diesel engine;
▪▪Type: 4-stroke, water-cooled, vertical in-line 6 cylinders, direct
injection, turbo-charger, intercooler, complied with European
Off-way Tier III Emission Standard and Chinese Off-way Tier III
Emission Standard;
▪▪Displacement: 8.9L;
▪▪Rated power: 242kW/2100rpm;
▪▪Operation power: 234kW/1800rpm;
▪▪Max. Torque: 1385N·m/1500rpm;
▪▪Starter: 24V-7.5kW;
▪▪Radiator: fin type aluminum plate core;
▪▪Air cleaner: Dry type system with main filter element, safety
element and resistance indicator;
▪▪Throttle: Grip type hand throttle, electrically-controlled;
▪▪Fuel filter: Replaceable paper element;
▪▪Batteries: Two 12V×165Ah capacity batteries, connected in
series;
▪▪Fuel tank capacity: 400L.

Electrical Control System
▪▪Self-developed SYIC-II integrated control system is adopted with
higher integration, precise operation and reliable quality;
▪▪Control system consists of power system, engine system,
main control system, LMI system, auxiliary system and safety
monitoring system. CAN BUS is used for data communication
between controller, monitor and the engine;
▪▪Monitor: the working parameters and status are shown on the
monitor, such as the engine speed, fuel volume, engine oil
pressure, servo pressure, engine working hours, lifting conditions
and boom angle.



	SCC1350A-5
Max Lifting Capacity	135T
Max Lifting Moment	720t·m
Max Boom Length	76m
Fixed jib length	31m
Longest main boom + fixed jib	61+31m
Luffing jib length	52m
Longest main boom + luffing jib	49+52m
Engine	CUMMINS QSL8.9
Engine output	242/2100kW/ rpm
