• Model NO.：SCC600A
• Model：Scc600A
• Lifting Moment：222 T..M
• Boom Length：13- 52m
• Engine Power：212kw,2000rpm
• Transport Package：Nude Package
• Specification：7030*3360*3304mm
• Trademark：ORIEMAC
• Origin：Hunan, China(Mainland)
• HS Code：84295212
• Production Capacity：5000PCS,Year

ItemParametersUnitPerformanceMax rated lifting capacity60tMax lifting moment222t.mMax rated lifting capacity with luffing jib12.5tMax lifting moment with fixed jib100.1t.mMax lifting moment with luffing jib10.1*14t.mBoom length13-52mLongest (boom+fixed jib)43+15.25mLongest (boom+luffing jib)40.3+28mBoom luffing angle30-80°Fixed jib offset angle10,30°Jib luffing angle15-75°Speeds
 Rope speed of main/auxiliary winches0-120 (3rd layer)m/minm/minRope speed of boom/jib luffing winches0-50 (4th layer)
72(magnetic valve connected)m/minSingle rope pull6.5tRope diameterΦ20mTravelling speed0-1.2km/hSlewing speed0-2rpmGradeability30%Engine Model6HK1 Rated power212/2000 kW/rpmRated torque1080/1500 Nm/rpmEmissionsEuro 3 TransportationCrane weight--t Max transport weight of single part28.5

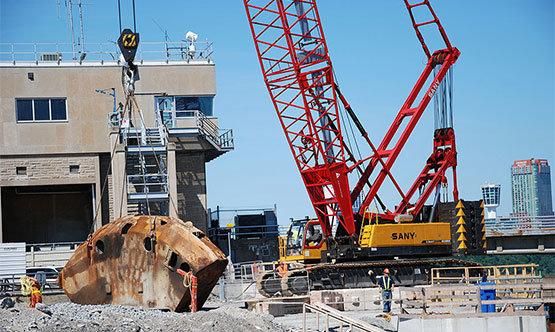

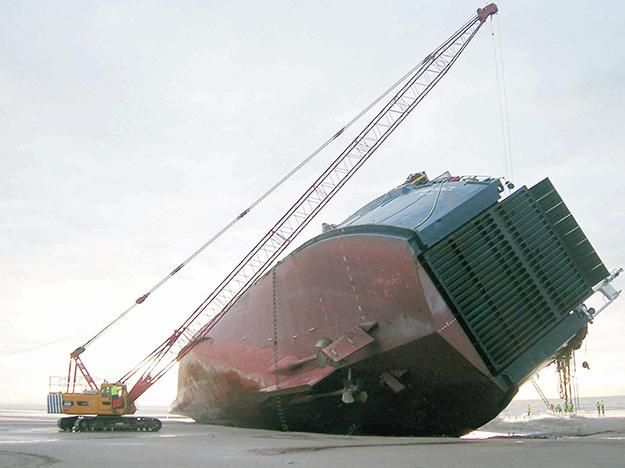

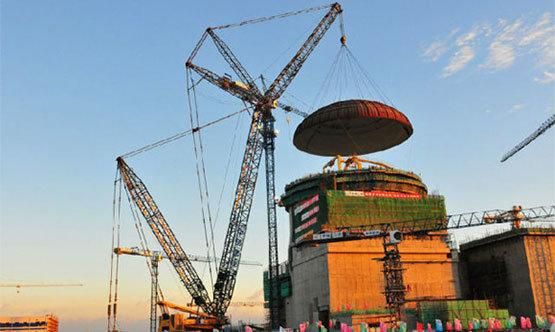

(with chassis, boom base, without counterweight)t Maxtransport dimensions7030×3360×3304mm Average ground pressure0.059MPaProduct Pictures
