Xgc100 New Hydraulic Crane 100 Ton Heavy Crawler Crane for Sale
Newindu Construction Engineering (Shanghai) Co., Ltd.- After-sales Service：Online Service, Spare Parts
- Warranty：2 Years
- Certification：GS, RoHS, CE, ISO9001
- Condition：New
- Maximum Lifting Height：30-40m
- Maximum Lifting Weight：>16t
Base Info
- Model NO.：XGC100
- Shaft Number：3
- Crane Jib：Five-Arm
- Type：Folding
- Boom Length：19-73m
- Fixed Jib Length：13-25m
- Operation Weight：100 Ton
- Engine Power：200kw
- Max. Load Moment：575t.M
- Application：Construction
- Engine：Weichai,Cummins,Shangchai

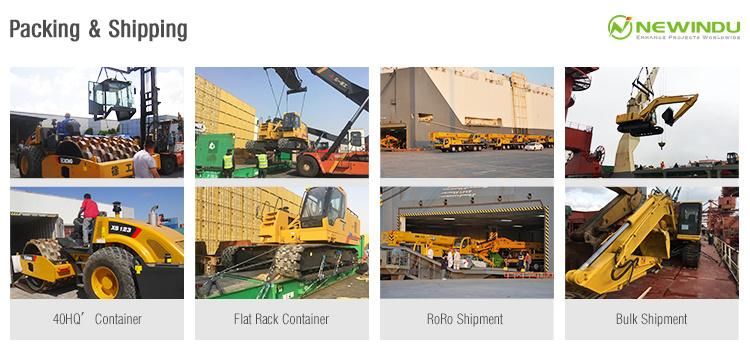

- Transport Package：Bulk Vessel
- Specification：150
- Trademark：Chinese Brand
- Origin：China
- HS Code：9480092
- Production Capacity：100pieces,Month
Description
Basic Info.
Model NO. XGC100 Shaft Number 3 Crane Jib Five-Arm Type Folding Boom Length 19-73m Fixed Jib Length 13-25m Operation Weight 100 Ton Engine Power 200kw Max. Load Moment 575t.M Application Construction Engine Weichai/Cummins/Shangchai Transport Package Bulk Vessel Specification 150 Trademark Chinese Brand Origin China HS Code 9480092 Production Capacity 100pieces/MonthProduct Description

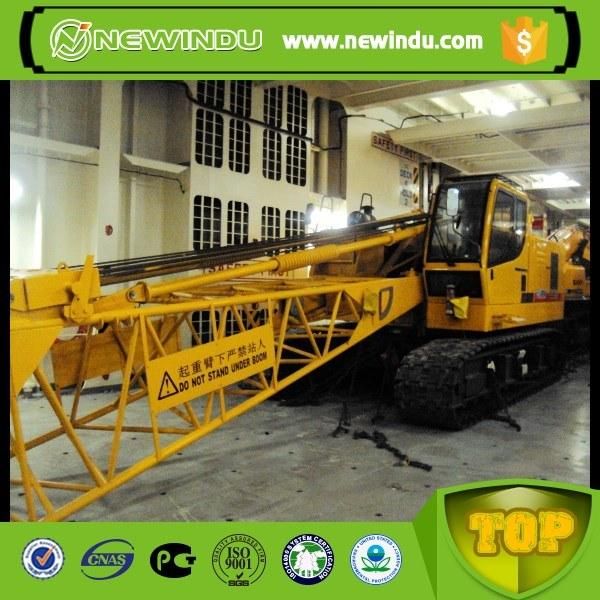

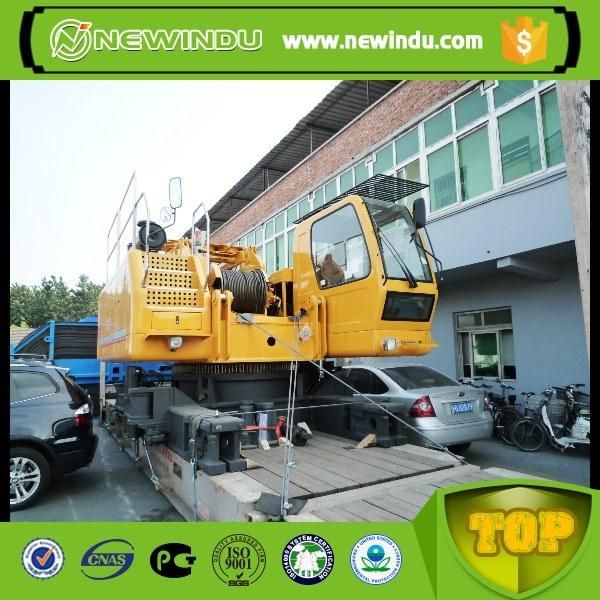

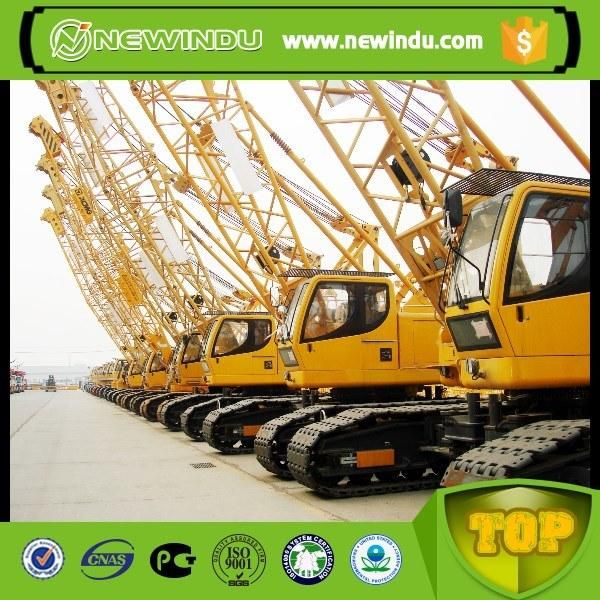

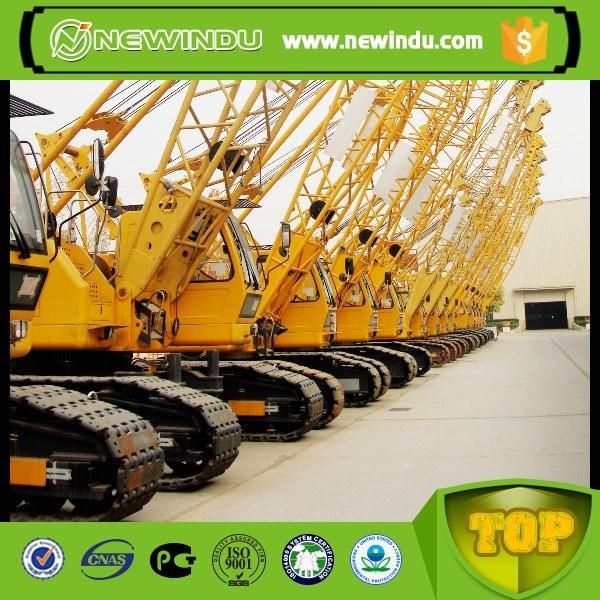

XGC100 New crane 100 Ton Heavy Crawler Crane for SaleFeature
Based on many years' development and application experiences of crawler crane, launched the new generation XGC100 in 2013 according to the market demands. Inheriting the advantages from the old generation product, XGC100 crawler crane pays more attention to the improvement of lifting performance, assembly/disassembly and transport convenience and operation comfort. It will bring new experience to customers with multiple outstanding features such as new appearance, industry leading lifting capacity and perfect self-assembly and disassembly function. This crawler crane can be used for farmland construction and water conservancy construction, petrochemical & power engineering, iron and steel, non-ferrous metals, coal and other resource exploration and construction, building construction, municipal construction, port construction and other fields.
Parameters
| Item | Unit | Parameter value |
| Parameter Item | - | XGC100 |
| Operation performance parameter | * | |
| Max. rated lifting capacity for boom | (t) | 100 |
| Max. rated lifting capacity for fixed jib | (t) | 15.6 |
| Max. rated lifting capacity for luffing jib | (t) | - |
| Max. load moment | (t.m) | 575 |
| Max. rated lifting capacity for tower jib | (t) | - |
| Max. rated lifting capacity for boom single top | (t) | 13 |
| Max. rated lifting capacity for special jib | (t) | - |
| Dimension parameter | * | |
| Boom length | (m) | 19~73 |
| Boom luffing angle | (°) | 30~81 |
| Fixed jib length | (m) | 13~25 |
| Tower jib length | (m) | - |
| Max. dimension of single unit in transport state(L×W×H) | (m) | 10.5×3.0×3.35 |
| Fixed jib offset angle | (°) | 15,30 |
| Special jib length | (m) | - |
| Speed parameter | * | |
| Max. single line speed for hoist mechanism | (m/min) | 110/120 |
| Max. single line speed for boom luffing mechanism | (m/min) | 34/46 |
| Max. single line speed for jib luffing mechanism | (m/min) | - |
| Max. slewing speed | (r/min) | 1.4 |
| Max. travel speed | (km/h) | 1.3 |
| Grade ability | (%) | 30 |
| Mean ground pressure | (MPa) | 0.087 |
| Max. single line speed for tower jib luffing mechanism | (m/min) | - |
| Max. single line speed for superlift luffing | (m/min) | - |
| Engine | * | |
| Model | - | SC9DK270G3/QSC |
| Engine power | (kW) | 200/183 |
| Emission | - | National III/EU III |
| Mass parameter | * | |
| Overall crane mass | (t) | 104.5(main hook, 19m boom) |
| Max. mass of single unit in transport state | (t) | 32.5 |

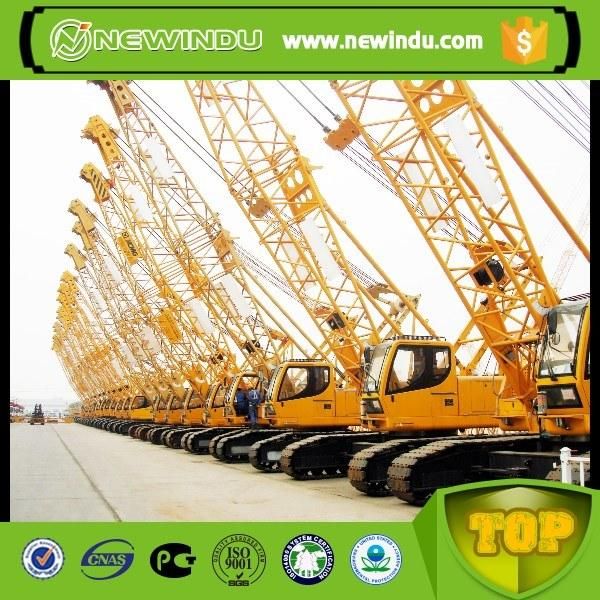

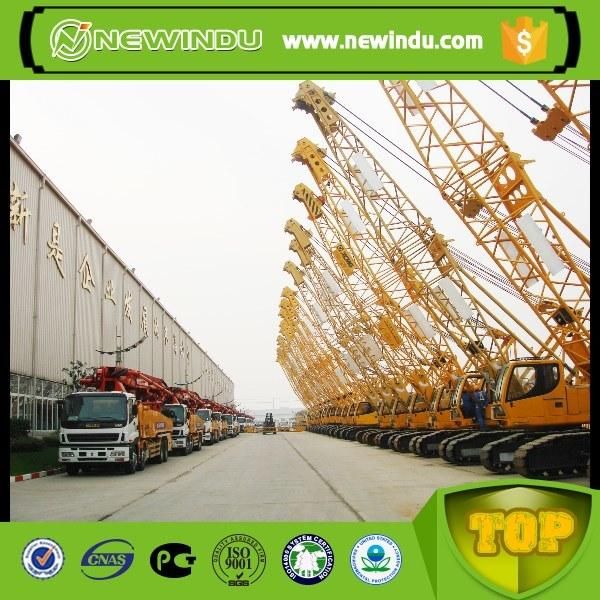

Our factory
