• Model NO.：QY16D
• Shaft Number：3
• Crane Jib：Three-Arm
• Type：Straight Arm
• Max. Lifting Height：61m
• Rated Lifting Moment：5252.8kn.M
• Span：8.0m

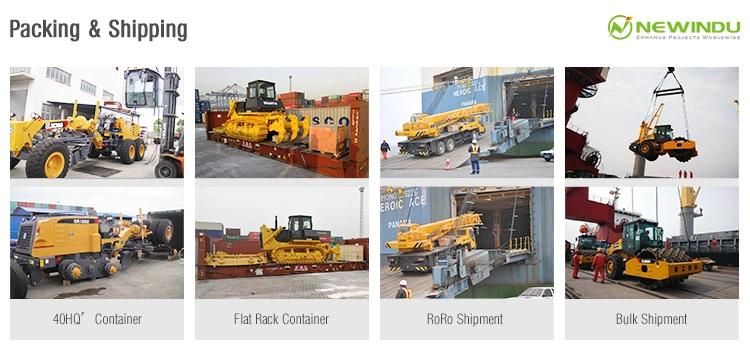

• Transport Package：Nude Packing by Roro Shipment
• Specification：160ton
• Trademark：Newindu
• Origin：China
• HS Code：8705109100
• Production Capacity：100sets,Month

ClassificatoryItemUnitParameterEngineModel D6114ZLQ5BOutline dimensionOverall lengthmm11990Overall widthmm≤2500Overall heightmm3350Wheel baseAxle 1, Axle 2mm4025Axle 2, Axle 3mm1350MassTotal mass in travel statekg24000Axle loadAxle 1kg6400Axle 2kg17600Travel performanceTravel speedMax. travel speedkm/h≥70Min. stable travel speedkm/h3~4Turning diameterMin. turning diameterm≤20Min. turning diameter at boom tipm≤23Min. ground clearancemm270Approach angle(°)21Departure angle(°)10Braking distance (at 30km/h with full load)m9.5Max. grade-ability%24Fuel consumption for 100kmL35
Main Technical Data for Lifting Operation
 ClassificatoryItemUnitParameterLifting performanceMax. total rated lifting capacityt16Min. rated working radiusm3Turning radius at turntable tailm≤3.12Max. load momentBase boomkN.m686Fully extended boomkN.m388Fully extended boom + JibkN.m254Outrigger spanLongitudinalm4.6Lateralm5.4Lifting heightBase boomm≥9.9Fully extended boomm≥30.7Fully extended boom + Jibm≥38.5Working speedBoom raising times≤60Boom full extension times≤95Max. swing speedr/min≥2.5Hoist speedMain winchFull loadm/min≥54(single line)No loadm/min≥100 Aux. winchFull loadm/min≥54 No loadm/min≥100Noise limitCrane exterior noisedB (A)≤118At seated positiondB (A)≤90

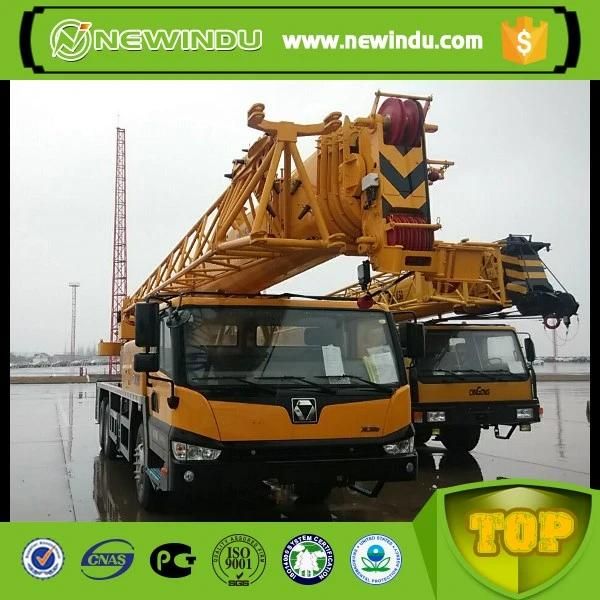

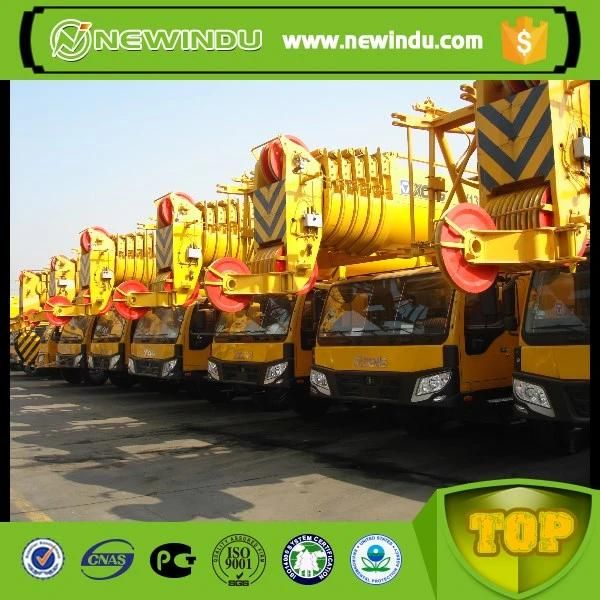

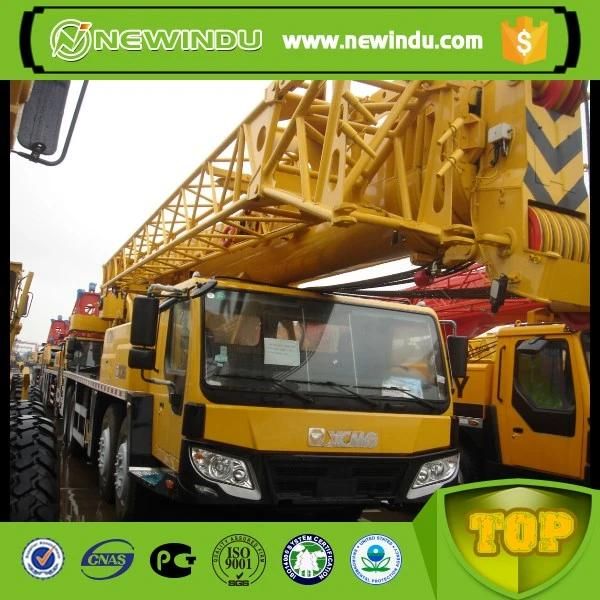

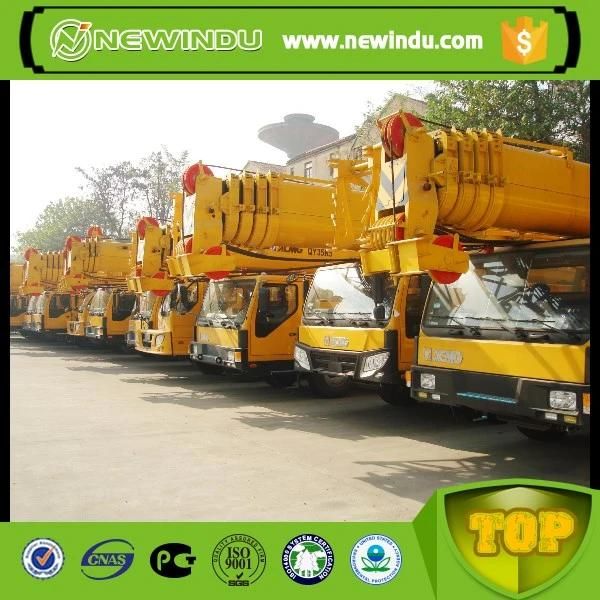

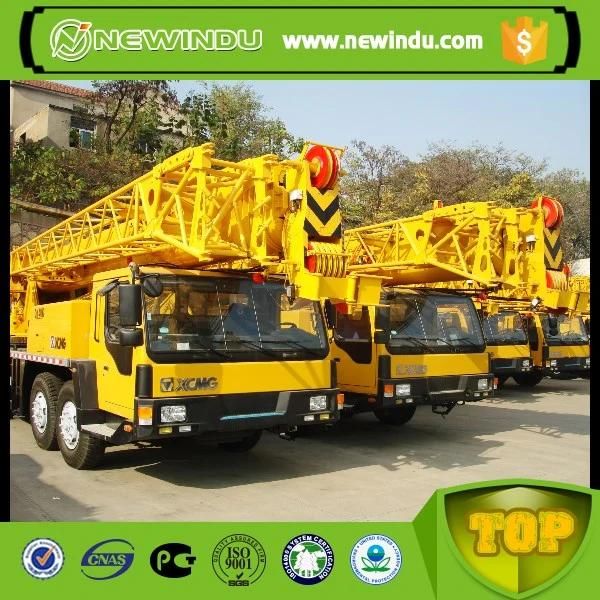

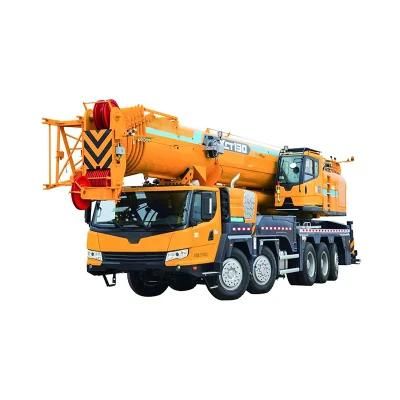

Pictures





Our Company
