Ouco 1t10m Folding and Telescoping Marine Crane Is a Hot Product

JIANGSU OUCO HEAVY INDUSTRY AND TECHNOLOGY CO., LTD.
  • After-sales Service：Provided
  • Operation Form：Crane Console
  • Warranty：1 Year
  • Certification：CE, ISO9001, ABS,CCS,BV
  • Product Name：1t10m Marine Commerical Vessel Knuckle Telescopic
  • Crane Swl：1t10m

Base Info

  • Model NO.：OUCO-1T10M-KTB
  • Max.Working Radius：10m
  • Min.Working Radius：2m
  • Hoisting Speed：0-12m,Min
  • Hook Travel：25m
  • Luffing Time：~40s
  • Power：22kw
  • Transport Package：Nude
  • Specification：1t10m
  • Trademark：OUCO
  • Origin：China
  • HS Code：8426990000
  • Production Capacity：100sets,Year

Description

SWL1T10MSlewing speed1r/minSlewing angle360°Luffing time~40sLluffing angle0-75°Working conditionTrim ≤2°  ,Heel ≤5°Power22kwSpeed1450rpmPower resourceAC440V/60HZDesign temperature-10 ~  +45°Dead weight2700kg
Remark: The specification can also be customized as client's requirement.

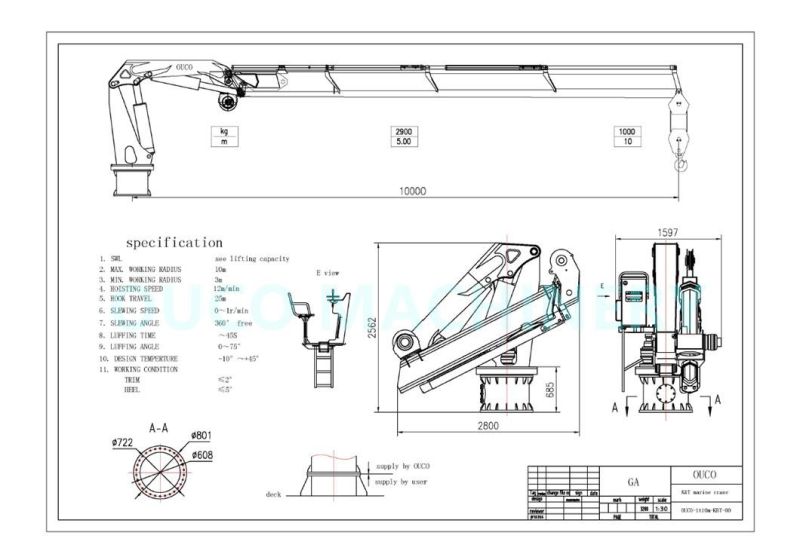

Drawing
Ouco 1t10m Folding and Telescoping Marine Crane Is a Hot Product

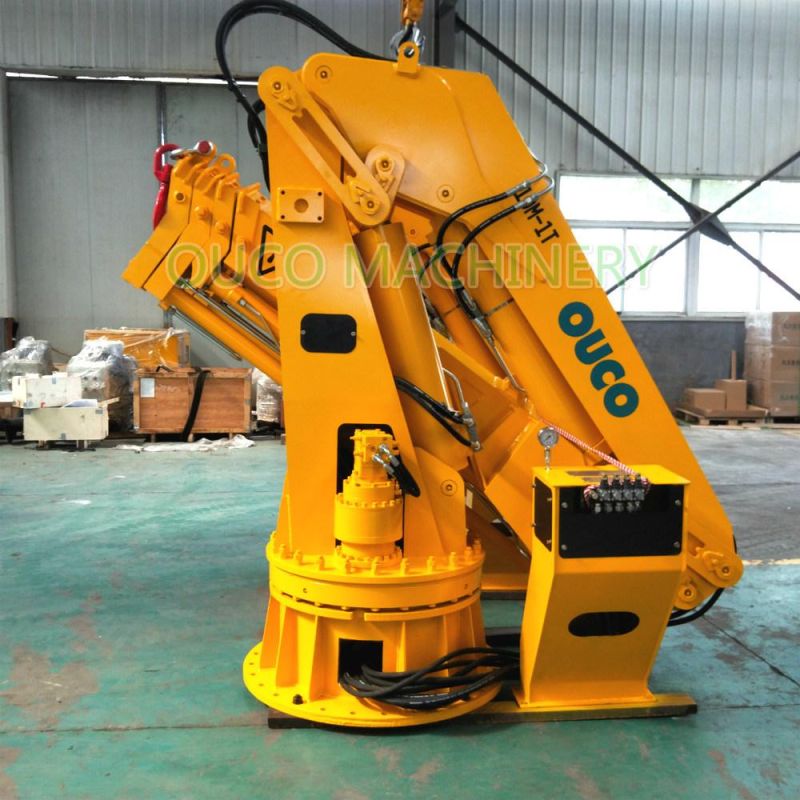

Details Pictures
Ouco 1t10m Folding and Telescoping Marine Crane Is a Hot Product

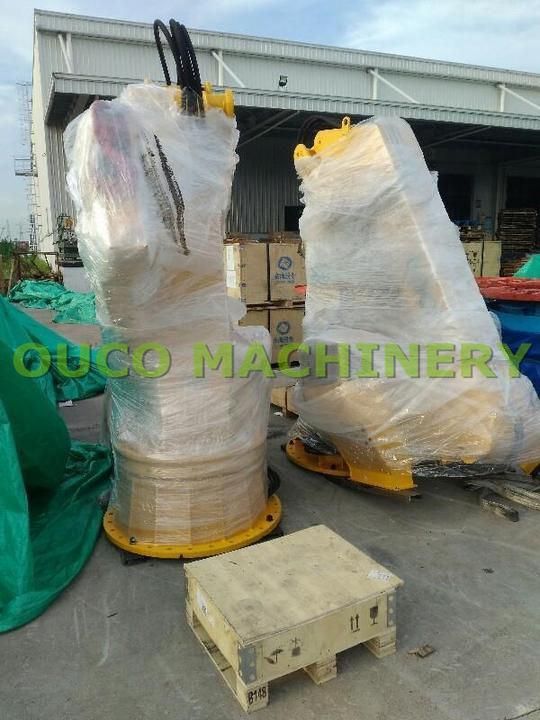

Packing
Ouco 1t10m Folding and Telescoping Marine Crane Is a Hot ProductStandard product : 1monthCustomized product: 2 monthsCertified products: 3-4 months

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.


Ouco 1t10m Folding and Telescoping Marine Crane Is a Hot ProductOuco 1t10m Folding and Telescoping Marine Crane Is a Hot Product

FAQ

Q: What's working radius of your crane?
A: From 1m to 100m, we can design and make according to your requirement.

Q: Which crane type should I choose?
A: We have foldable boom, knuckle boom, telescopic boom, stiff boom, etc.

Q: Can this crane be explosion proof?
A: Sure, we can equip any extra functio based on your requirement.

Q: Does your crane have safety devices?
A: Of course, we have all cut off limits and alarms for safety reasons.

Q: How can I install the crane to my vessel?
A: We can send our service engineers to the vessel site for guiding or ship the crane in whole piece.
