• Model NO.：STC250
• Type：Straight Arm
• Transport Package：Nude Roro Container
• Specification：12.75*2.5*3.55 m
• Trademark：Evangel
• Origin：China
• Production Capacity：1000,Year

Basic Info.

Model NO. STC250 Type Straight Arm Transport Package Nude Roro Container Specification 12.75*2.5*3.55 m Trademark Evangel Origin China Production Capacity 1000/Year

Product Description

Powerful Lifting Capacity

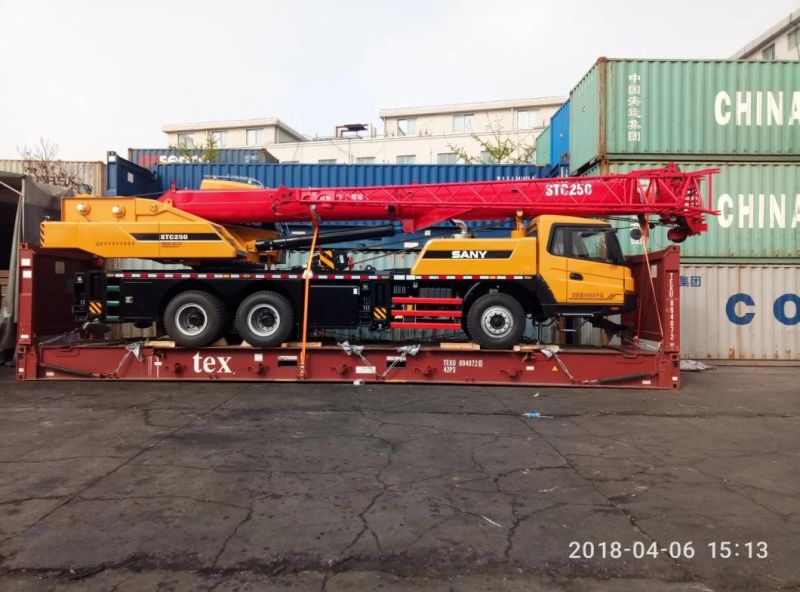

STC250 25 ton crane has four-section boom of high strength steel structure and optimized U-shaped cross section with max.lifting capacity of 25t, full-extended boom length of 33.5m, max.lifting height including jib of 42m, reduce weight and improve safety significantly.

Jib mounting angles are 0°, 15°, and 30°, which ensure fast and convenient change-over between different operating conditions so as to improve working efficiency of the machine.

Efficient & Unique Hydraulic System

Triple gear pump, load feedback and constant power control are applied to provide strong lifting capacity and good micro-mobility. Unique steering buffer design guarantees smooth braking operation.

Intelligent Electronic Control

Self-developed controller SYMC special for engineering machinery is configured. The adoption of CAN-bus full-digital network control technology ensures stable control signal, simple harness, and high reliability. Timely feedback of data information can achieve the monitoring of the overall working status in real time.

The Load Moment Limiter

Equipped with the comprehensive intelligent protection system is with accuracy within 3%. The adoption of comprehensive logic and interlock control system ensures more safe and reliable operation.

More Safe Devices

Main and auxiliary winches are equipped with over roll-out limiter to prevent over rolling-out of wire rope.

Boom and jib ends are equipped with height limiters respectively to prevent over-hoisting of wire rope.

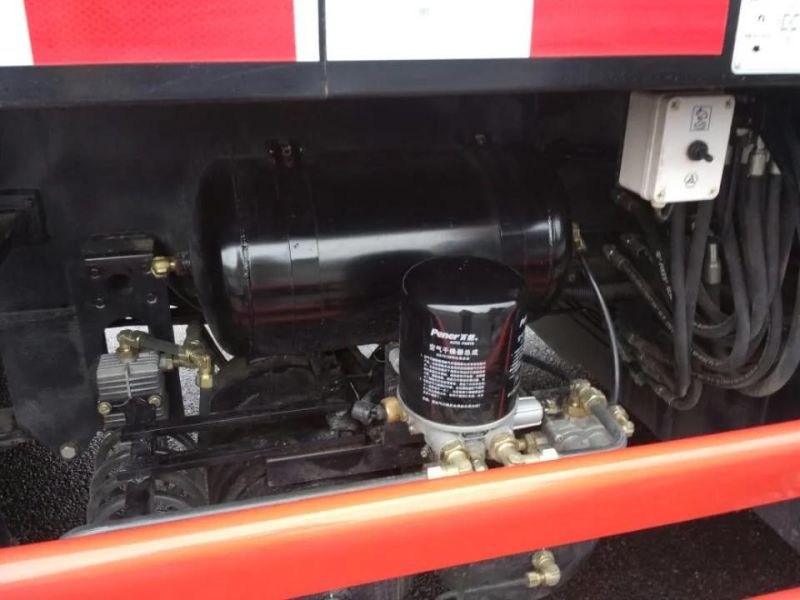

Hydraulic system is configured with the balance valve, overflow valve and two-way hydraulic lock etc., to ensure stable and reliable operation.
