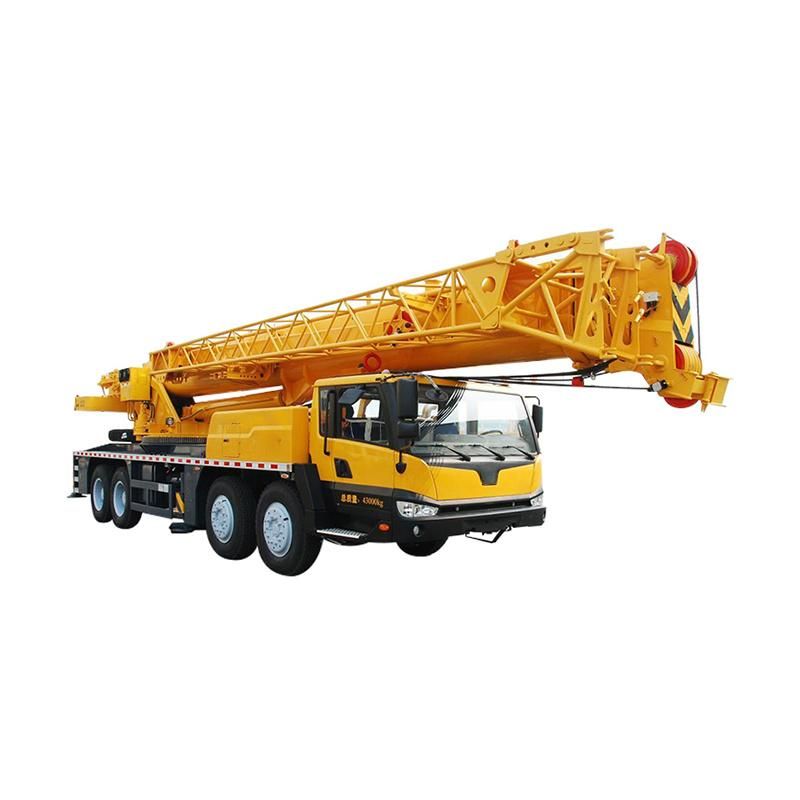

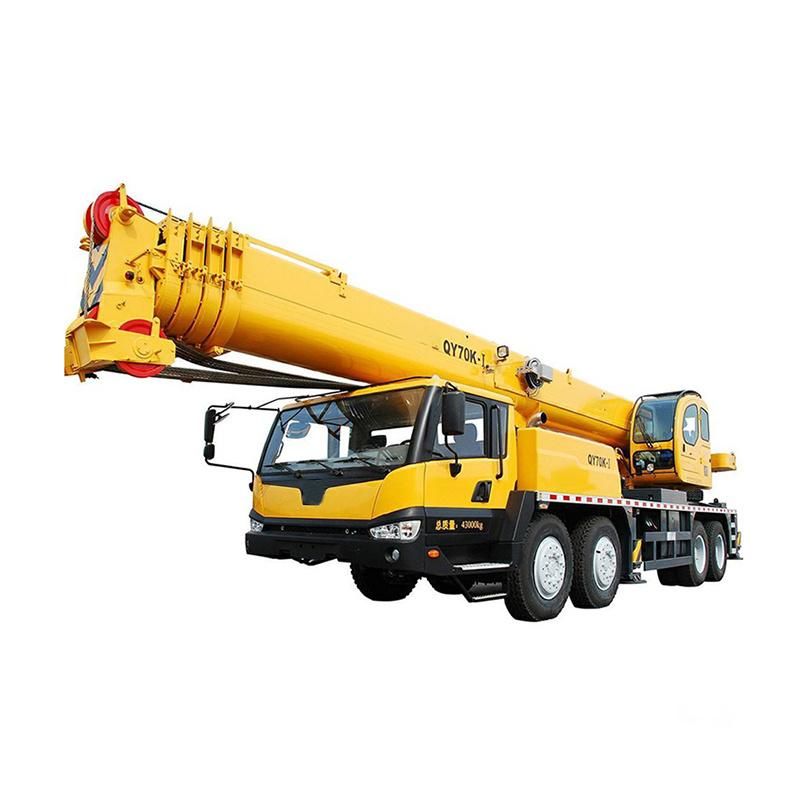

Heavy Duty 70tons Mobile Crane Qy70kc Qy70kh

Oriemac Machinery & Equipment (Shanghai) Co., Ltd.
  • After-sales Service：One Year
  • Warranty：One Year
  • Certification：GS, RoHS, CE, ISO9001, ISO9001: 2000
  • Condition：New
  • Maximum Lifting Height：>40m
  • Maximum Lifting Weight：70ton

Base Info

  • Model NO.：QY70KH
  • Shaft Number：4
  • Crane Jib：Five-Arm
  • Type：Straight Arm
  • Size：13750*2800*3520mm
  • Engine Model：Wd615.334(Domestic III)
  • Rated Power：247kw
  • Weight in Travel：70000kg
  • Engine Rated Torque：1350,1400n.M,(R,Min)
  • Fully Extended Boom+ Jib：57.7m
  • Max.Lifting：70t
  • Boom Type：U Style
  • Boom Luffing Time：88s
  • Color：Yellow
  • Overall Length：13930mm
  • Overall Width：2800mm
  • Overall Height：3575mm
  • Transport Package：Nude
  • Specification：ISO, CCC, Gost
  • Trademark：Oriemac
  • Origin：Jiangsu, China
  • HS Code：87051092
  • Production Capacity：3000PCS,Month

Description

DescriptionUnitParameter valueMax. total rated lifting capacityt70Min. rated working radiusm3Turning radius at turntable tailmm3550Max. load momentBase boomKN.m2303Fully-extended boom 1129Fully-extended boom + Jib 580.2Hoist heightBase boomm11.8Fully-extended boom 44.2Fully-extended boom + Jib 59.4Boom lengthBase boomm11.6Fully-extended boom 44.5Fully-extended boom + Jib 59.5Overall lengthmm13900Overall widthmm2800Overall Heightmm3575Wheel Basemm 2304+2075Total vehicle mass in travel configurationkg43000 (not including auxiliary counterweight of 1t)Engine Model WD615.338Engine rated powerkw/(r/min)276/2200Engine rated torqueN.m/(r/min)1500/1400Engine rated rotational speedr/min2100Max. travel speedkm/h80
