• Model NO.：QY25K QY25K5
• Type：Gantry Crane
• Application：Construction Usage
• Moving Type：Wheel
• Power Source：Hydraulic
• Sling Type：Wire Rope
• Installation：Assembled
• Tower Crane Type：Slewing Tower Crane
• Main Girder Form：Double Girder
• Transport Package：Nude
• Specification：Euro III
• Trademark：EVANGEL
• Origin：Jiangsu, China
• HS Code：87051091
• Production Capacity：30 Sets Per Month

Basic Info.

Model NO. QY25K QY25K5 Type Gantry Crane Application Construction Usage Moving Type Wheel Power Source Hydraulic Sling Type Wire Rope Installation Assembled Tower Crane Type Slewing Tower Crane Main Girder Form Double Girder Transport Package Nude Specification Euro III Trademark EVANGEL Origin Jiangsu, China HS Code 87051091 Production Capacity 30 Sets Per Month

Product Description

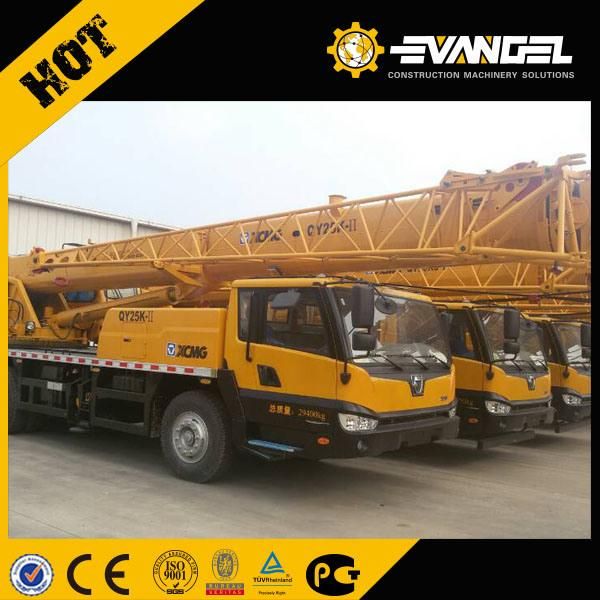

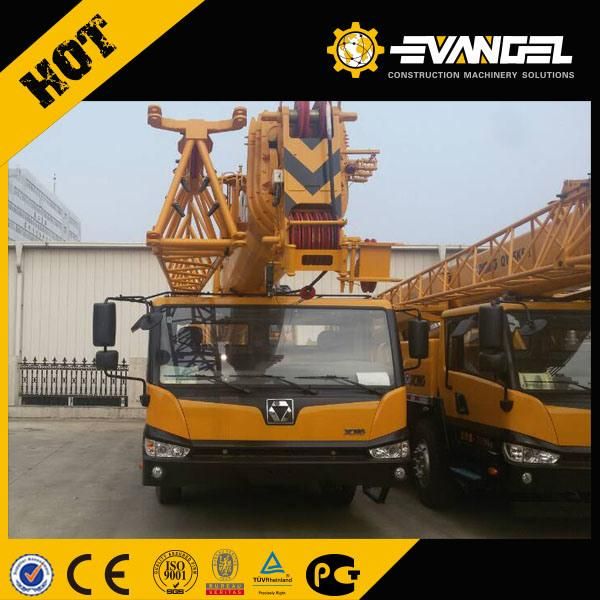

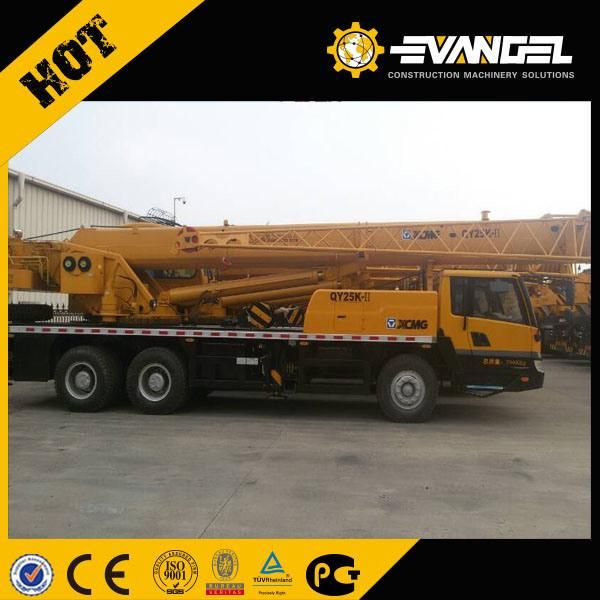

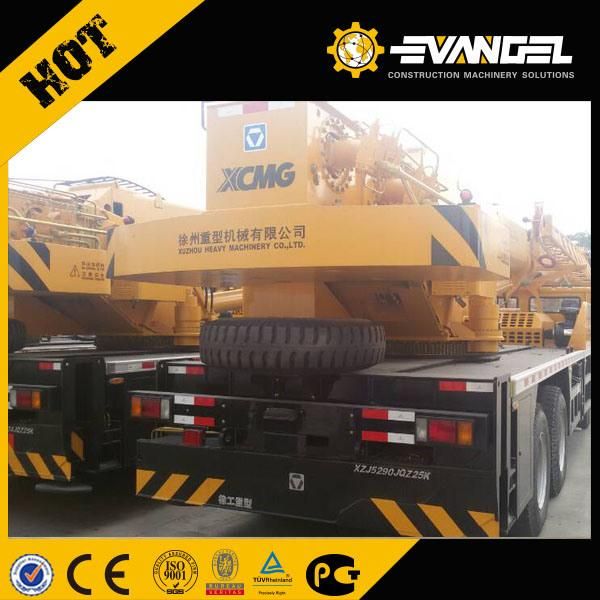

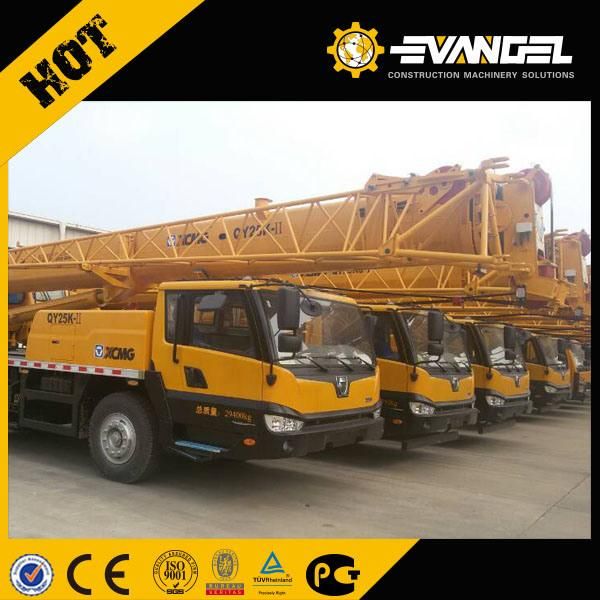

 QY25K-II Truck Crane
1. Three axles
2. Shangchai (206KW) or Hangzhou (213KW) EURO III, full coverage board
3. 4-section dodecagon main boom 34m and one jib 8.15m, dual independent winch, Hirschman force limiter
4. Cooling and heating air conditioner and heat emitter and five outriggers
5. Full head cab, pilot
6. Total dimension(mm): 12360*2500*3380
7. Max. Operation weight(Kg): 26400

Dimension	Unit	QY25K-II
Overall length	mm	12550
Overall width	mm	2500
Overall height	mm	3380
Weight
Total weight in travel	kg	29400
Front axle load	kg	6200
Rear axle load	kg	23200
Power
Engine model		SC8DK280Q3 / WD615.329(domestic III)
Engine rated power	kW/(r/min)	206/2200    213/2200
Engine rated torque	N. m/(r/min)	1112/1400  1160/1400
Travel
Max. travel speed	km/h	75
Min. turning diameter	m	22
Min. ground clearance	mm	260
Approach angle	°	16
Departure angle	°	13
Max. grade ability	%	30
Fuel consumption for 100km	L	≈ 37
Main performance
Max. rated total lifting capacity	t	25
Min. rated working radius	mm	3000
Turning radius at turntable tail	m	3.065
Max. lifting torque	kN. m	1000
Base boom	m	10.6
Fully extended boom	m	33
Fully extended boom+jib	m	41.15
Longitudinal outrigger span	m	5.14
Lateral outrigger span	m	6
Working speed
Boom luffing time	s	75
Boom full extension time	s	100
Max. swing speed	r/min	≥ 2.5
Max. speed of main winch (single rope)	m/min	≥ 120
Max. speed of aux. winch (single rope)	m/min	≥ 120
