• Model NO.：QDY
• Type：Beam
• Lifting Mechanism：Electrical Hoist
• Polyurethane Material Buffer：Included
• Main Electrical Parts：Siemens Brand
• Voltage Lower Protection Function：Included
• GB/T 24001-2004 Idt ISO14001: 2004：Passed
• Certificates：CE GOST SGS ISO BV
• Limited Switch：Included
• Current Overload Protection System：Included
• Guarranty：One Year
• Working Temperature：High Temperature in Steel Melting
• Transport Package：Exporting Standard
• Specification：Chinese Standard
• Trademark：Kuangyuan
• Origin：Xinxiang, Henan Province, China
• HS Code：84261120
• Production Capacity：6000sets,Year

Basic Info.

Model NO. QDY Type Beam Lifting Mechanism Electrical Hoist Polyurethane Material Buffer Included Main Electrical Parts Siemens Brand Voltage Lower Protection Function Included GB/T 24001-2004 Idt ISO14001: 2004 Passed Certificates CE GOST SGS ISO BV Limited Switch Included Current Overload Protection System Included Guarranty One Year Working Temperature High Temperature in Steel Melting Transport Package Exporting Standard Specification Chinese Standard Trademark Kuangyuan Origin Xinxiang, Henan Province, China HS Code 84261120 Production Capacity 6000sets/Year

Product Description

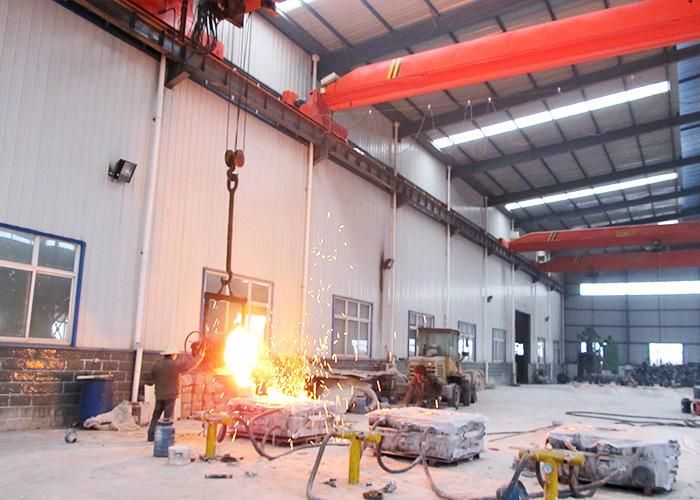

Single Girder Casting Crane-Metal Foundry Overhead Crane

Features of the single girder casting crane:

Where safety has always been written with a capital 'S' in the interest of people and processes. Casting cranes of 2 or 4 girder design with trolleys for transferring molten materials on both sides. Hot metal is handled safely and efficiently.

Key words which characterize our "steel production" application focus are:

1. High ambient temperatures
2. High level of availability
3. Severe operating conditions
4. Low-maintenance designs with a long service life
5. Safety hoist units
6. Redundant drive systems

Equipment and structure:

Normally there are four beams and two trolleys assembled on the crane, laminated ladle hook is equipped on the main trolley for lifting the ladle, and Aux trolley is for overturning the ladle and other assistant handing. The electrical appliance is installed inside of the main girder with heat insulation device and cooling device, the crane can work efficiently under harsh conditions such as high temperature and dust-laden

Use various frequency speed system with speed ratio as1: 10 for main mechanisms such as hoisting, trolley traversing and crane travelling. Also we can choose the suitable speed under the customer requirement.

Type/Model	Single Girder Casting Crane
Structure	Main Beam, End Carriage, Hoist trolley, Complete Electrical system and control system
Quality Standard	ISO 9001: 2000 ISO 14001: 2004 and OHSAS 18001
Motor	Slipring motors, dust proof construction foot
Brakes:	Independent Hydraulic Brake
Gear Box:	All gears & pinions running on antifriction type ball / roller bearings in totally enclosed oil bath giving constant splash lubrication
Limit Switch	Safety limit switches for stoppers will be provided to prevent over traveling in all motions.
Optional Features:	Wireless Radio Remote control Shrouded DSL system for power feeding Flameproof Anti-explosion Cabin Operated PLC automatic Control system

Any doubt or needs welcome to send us emails or calling, we are at your serveice all the time!
