• Type：Straight Arm

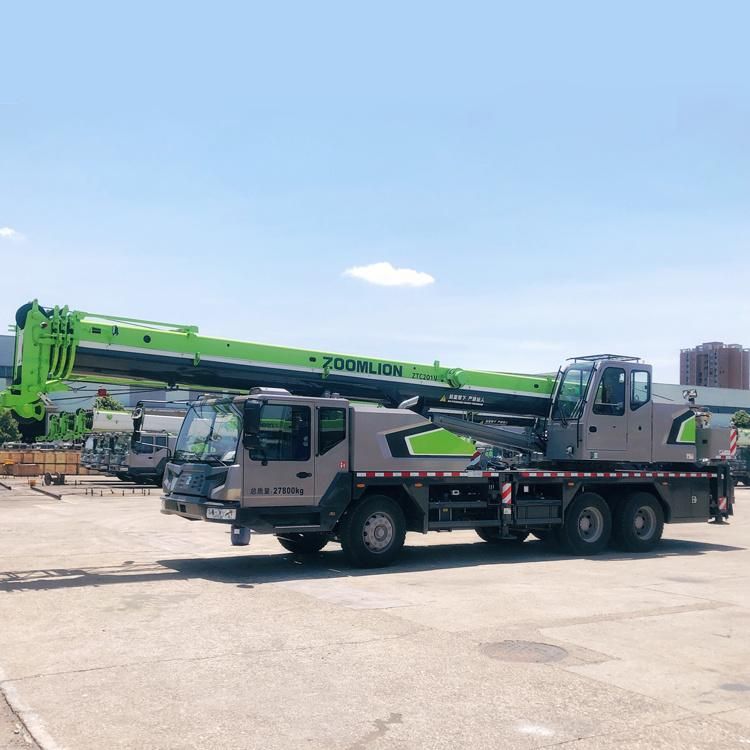

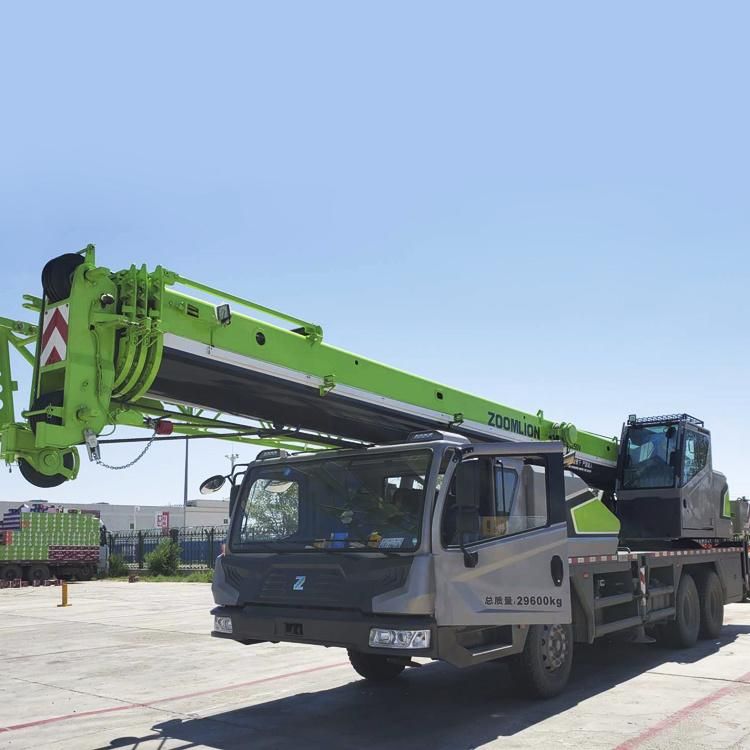

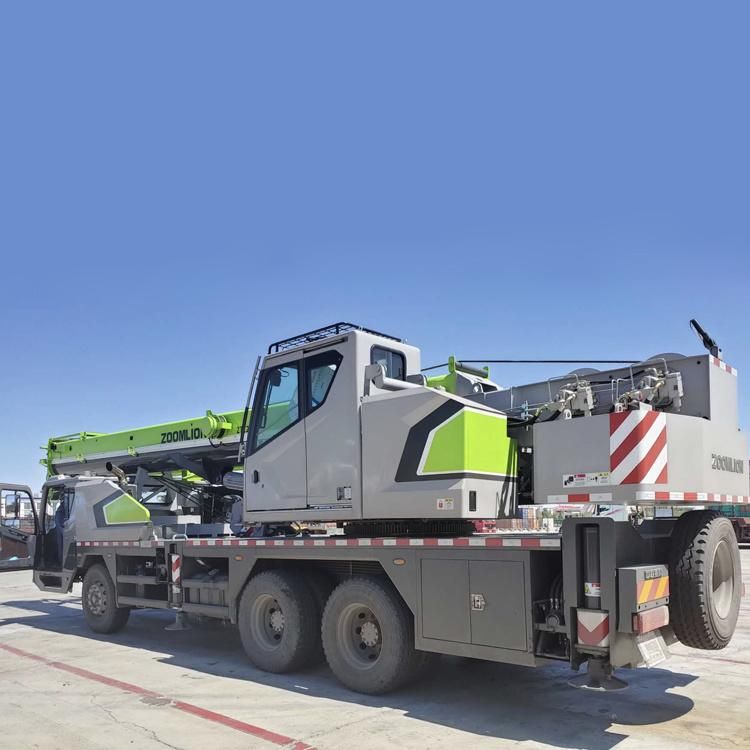

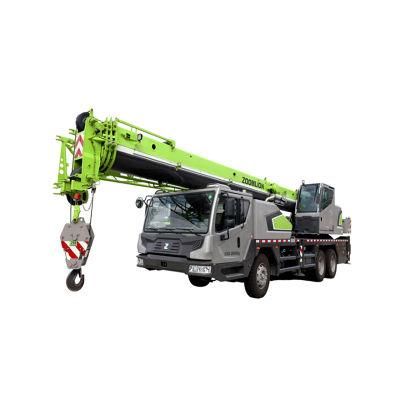

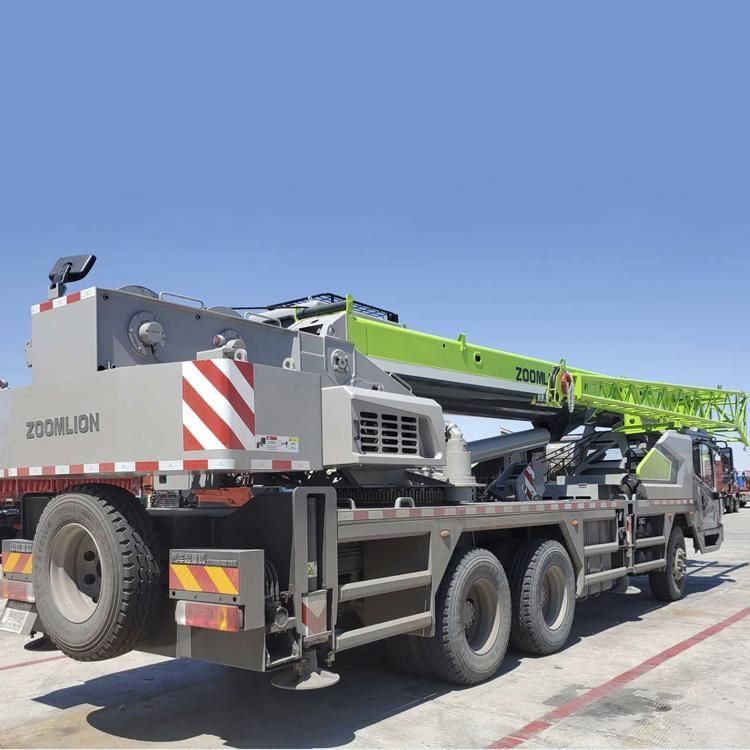

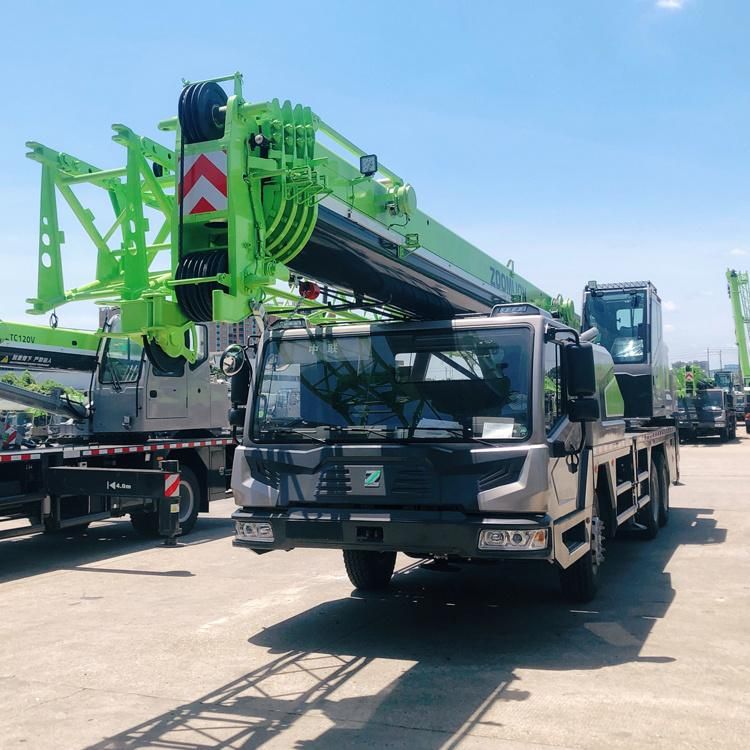

• Product：Zoomlion Ztc250A552 Lattice Boom Truck Crane
• Brand：Zoomlion
• Model：Ztc250A552
• Lifting Capacity：25t
• Engine Model：Wp10.270
• Total Weight in Travel：30000kg
• Engine Power：155,2300
• Base Boom：9.2 M
• Fully Extended Boom+Jib：41.6 M
• Min. Rated Working Radius：3m
• Travel Speed：78 Km,H
• Gradeability %：37
• Overall Dimensions：12800×2500×3430mm
• Boom Length M：10.5~33.3
• Boom Angle°：-2~80
• Transport Package：Nude
• Specification：25t
• Trademark：zoomlion
• Origin：China
• HS Code：87051091
• Production Capacity：1000unit,Year

ItemValueRemarks Working performance rated lifting capacitykg25000  load moment of basic boom980  kN.m  load moment of boom lengthkN.m573  lifting height of basic boom m11.5   lifting height of boom m33.8Deformation of the boom is not taken into consideration.  lifting height of jib m41.6 Working speedhoist rope speed (main winch) m/min120At 4^th layer  hoist rope speed(auxiliary winch) m/min100At 2^nd layer Boom derricking times40  Boom extending times60  Slewing speed r/min0~2.2  Traveling specifications traveling speed km/h78   gradeability %37  Min. turning diameter m≤22  Min. ground clearance mm220  Limits for exhaust pollutants and smokeMeet with related standardsGB3847-2005 GB17691-2005 (National stage III) Oil consumption per hundred kilometers L45  WeightsDeadweight in traveling condition30000  kg Complete vehicle kerb mass kg29870  Front axle load kg6800  Rear axle loadkg23200  DimensionsOverall dimensions (L×W×H) mm12800×2500×3430  Longitudinal distance between outriggersm5.36  Transversal distance between outriggers m6.1  Boom length m10.5~33.3  Boom angle°-2~80  Jib length m8  Offset °0, 30       ChassisModelZLJ5325Code: ZLJ5325V3ClassII EngineModelWP10.270
