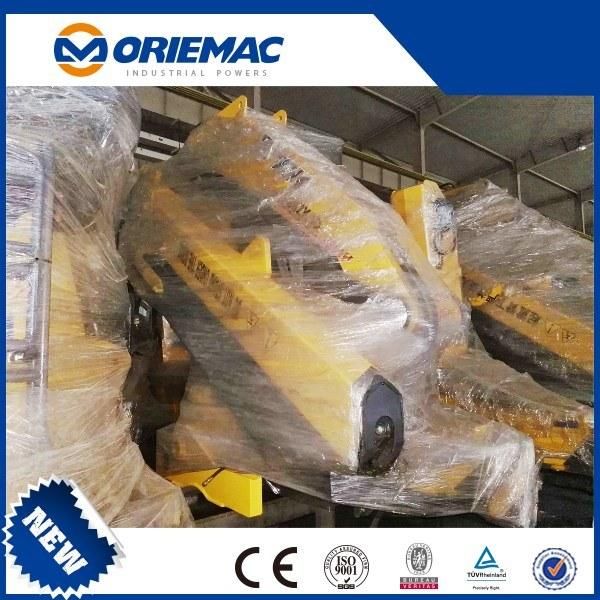

HOWO 12ton Telescopic Boom Mounted Crane Truck
Oriemac Machinery & Equipment (Shanghai) Co., Ltd.- After-sales Service：Oversea
- Warranty：1 Year
- Certification：GS, RoHS, ISO9001
- Condition：New
- Maximum Lifting Height：25-30m
- Maximum Lifting Weight：11-13t
Base Info
- Model NO.：SQ12S
- Shaft Number：3
- Crane Jib：Four-Arm
- Type：Straight Arm
- Max Lifting Capacity：12000kg
- Crane Weight：4200kg
- Max Lifting Moment：30t.M
- Boom：3
- Transport Package：Nude Packing
- Specification：Standard Configuration
- Trademark：Oriemac
- Origin：Jiangsu, China
- HS Code：84269100
- Production Capacity：5000 Set,Sets , Month
Description
Model
SQ12SK3Q
Unit
Max Lifting Capacity
12000
kg
Max Lifting Moment
30
T.M
Recommend Power
30
kw
Max Oil Flow of Hydraulic System
63
L/min
Max Pressure of Hydraulic System
26
MPa
Oil Tank Capacity
160
L
Rotation Angle
All Rotation
Crane Weight
4200
kg
Installation Space
1300
mm
Choice of Chassis
DFL1250A9 DFL1311A3 CA1240PK2L7T4EA81 EQ5201GFJ6 BJ1317VNPJJ-S5 BJ5253ZKPJJ DFL1253AX
SQ12SK3Q Lifting capability diagramWorking radius (m)
2.5
4.8
7
9
12.5
Lifting capacity (kg)
12000
6000
3500
2700
1800
1. Advanced hydraulic system;
2.1. High efficiency High strength Long service life
3. Convenient maintenance Comfortable operat
Model
SQ12SK3Q
Unit
Max Lifting Capacity
12000
kg
Max Lifting Moment
30
T.M
Recommend Power
30
kw
Max Oil Flow of Hydraulic System
63
L/min
Max Pressure of Hydraulic System
26
MPa
Oil Tank Capacity
160
L
Rotation Angle
All Rotation
Crane Weight
4200
kg
Installation Space
1300
mm
Choice of Chassis
DFL1250A9 DFL1311A3 CA1240PK2L7T4EA81 EQ5201GFJ6 BJ1317VNPJJ-S5 BJ5253ZKPJJ DFL1253AX
SQ12SK3Q Lifting capability diagramWorking radius (m)
2.5
4.8
7
9
12.5
Lifting capacity (kg)
12000
6000
3500
2700
1800
