• Model NO.：HP1000
• Type：Small Crane
• Product Name：DC12V Foldable Truck Crane 500kgs,800kgs
• Max Single Line Lifting Capacity：500kgs
• Max Double Line Lifting Capacity：800kgs
• Lifting Height Max. Std . (Base to Hook：1940mm
• Reach Max (From Center to Rotation )：1490mm
• Rotation (Continuous ) with Brake：360 Manual
• Lifting Cable：4.8mmx4.5m -1PC (for Single Line Lifting )
• Line Speed with No Load：3.6m,Min Single Line
• Power Requirements：12V DC 125 AMPS
• Switch Cable：4.2m
• Transport Package：Standard Export Packaging
• Specification：CE ISO SGS
• Trademark：China Coal
• Origin：China
• HS Code：8479102100
• Production Capacity：50000sets Per Month

Basic Info.

Model NO. HP1000 Type Small Crane Product Name DC12V Foldable Truck Crane 500kgs/800kgs Max Single Line Lifting Capacity 500kgs Max Double Line Lifting Capacity 800kgs Lifting Height Max. Std . (Base to Hook 1940mm Reach Max (From Center to Rotation ) 1490mm Rotation (Continuous ) with Brake 360 Manual Lifting Cable 4.8mmx4.5m -1PC (for Single Line Lifting ) Line Speed with No Load 3.6m/Min Single Line Power Requirements 12V DC 125 AMPS Switch Cable 4.2m Transport Package Standard Export Packaging Specification CE ISO SGS Trademark China Coal Origin China HS Code 8479102100 Production Capacity 50000sets Per Month

Product Description

Introduction of Mini DC12V Foldable Truck Crane 500kgs Truck Hoist Crane

500kgs DC12V Truck crane ,boom track crane, foldable truck crane, Application: Highways, Construction, Utilities, General
 500kgs DC12V Truck crane ,boom track crane , foldable truck crane
China coal special produce vehicle-mounted electric crane ,with DC12V Vehicle power as power .Specially suitable in outdoor on power place , it is widely used ,mainly used for light-weight wagon ,Vans, loading dock ,platform .Outstanding feature ,compact structure , single size , lightest weight take up minimal room , HP1000 matched with 3000lbs winch ,is the best ideal option for lifting little object.


Parameter of Mini DC12V Foldable Truck Crane 500kgs Truck Hoist Crane



Max Single line lifting capacity	500kg
Max Double line lifting capacity	800kg
Lifting Height max. Std . (base to hook )	1940mm
Reach Max (from center to rotation )	1490mm
Rotation (continuous ) with Brake	360 Manual
Lifting Cable	4.8mmx4.5m -1pc (for single line lifting )
Lifting Cable	4.8mmx5.5m -1pc (for double line lifting )
Line speed with No load	3.6m/min single line
Power requirements	12V DC 125 amps
Switch Cable	4.2m
Mounting Base	250*250*18mm
Mounting Bolt Hole Pattern	170*170mm
Finish	Powder Coated
Net Weight of Crane	58.5Kgs

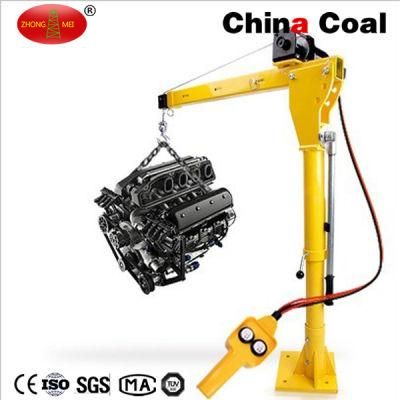

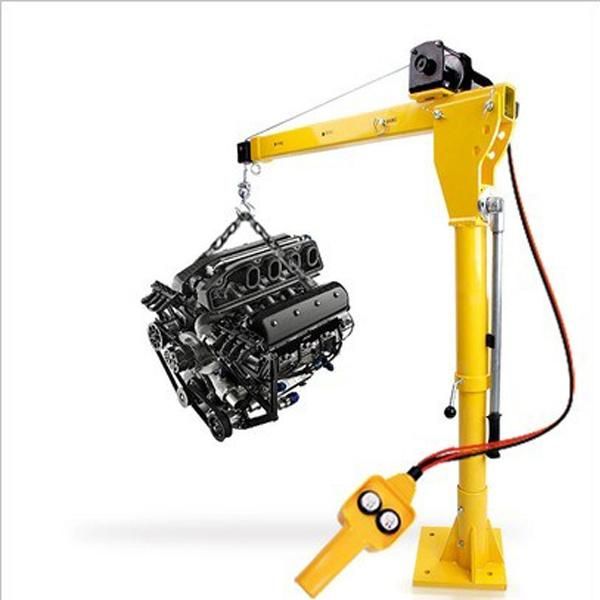

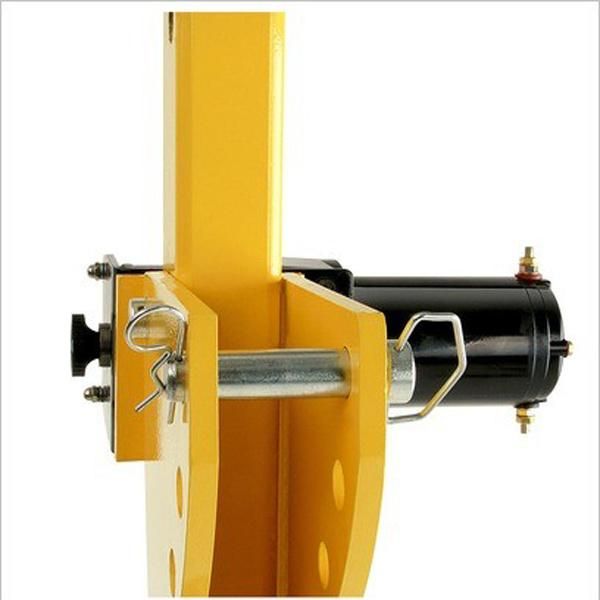

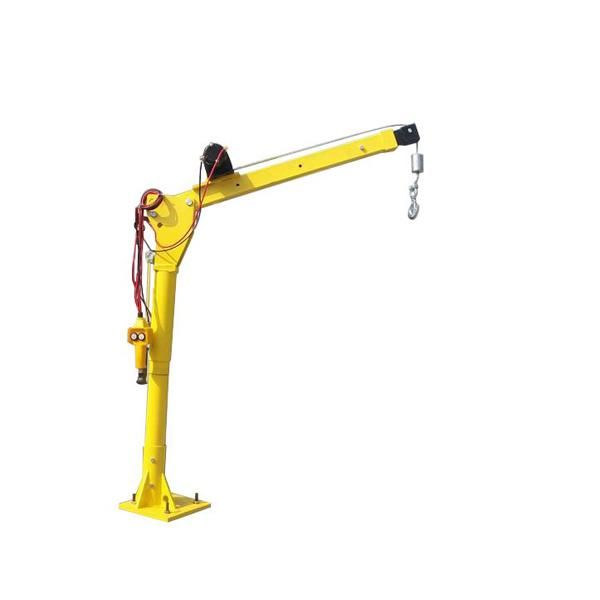

Photos Of Mini DC12V Foldable Truck Crane 500kgs Truck Hoist Crane
