Chinese Classic 70 Ton High Quality Truck Crane Qy70K-I

Fujian Raygoo Machinery Co., Ltd.
  • After-sales Service:Spare Parts Support
  • Warranty:1 Year
  • Certification:GS, RoHS, CE, ISO9001
  • Condition:New
  • Maximum Lifting Height:>40m
  • Maximum Lifting Weight:70t

Base Info

  • Model NO.:Qy70K-I
  • Installation:Overall Rapid Disassembly
  • Moving Type:Wheel
  • Type:Under-Slewing Crane
  • Overall Length:13900mm
  • Overall Width:2800mm
  • Overall Height:3575mm
  • Dead Weight in Travel State:43000kg
  • Power Source:Hydraulic
  • Sling Type:Wire Rope
  • Engine Rated Power:276,2200kw,(R,Min)
  • Rated Lifting Moment:2303kn.M
  • Transport Package:Container, RO-RO
  • Specification:13900*2800*3575mm
  • Trademark:Raygoo
  • Origin:Fujian, China
  • HS Code:84295100
  • Production Capacity:5000

Description

Overview DescriptionUnitParameter valueOverall lengthmm13900Overall widthmm2800Overall Heightmm3575Axle base1st ,2nd axlemm14702nd ,3rd axle41053rd ,4th axle1350Wheel Basemm2304+2075Total vehicle mass in travel configurationkg43000 (not including auxiliary counterweight of 1t)Axle load1st and 2nd Axlekg170003rd and 4th Axle26000Engine Model WD615.338Engine rated powerkw/(r/min)276/2200Engine rated torqueN.m/(r/min)1500/1400Engine rated rotational speedr/min2100Max. travel speedkm/h80Min. steady travel speedkm/h3Min. turning diameterm24Min. turning diameter at boom tipm29Min. ground clearancemm327Max. grade ability%40Approach angle°19Departure angle°11Braking distance (at 30 km/h, full load )m≤10Oil consumption per 100kmL45Product Picture

Our machines advantages

Why choose RAYGOO GROUP

1. Quality assurance
2. Multi-currency payment ( RMB / USD / EUR) & Multi Payment team: T/T, L/C at sight....
3. Cheap shipment costs, Rich container package & Fast shipment:
Raygoo group cooperated with many shipping company many years, which can get the cheapest ocean freight with latest shipping date, even whole shipping tracking.
Chinese Classic 70 Ton High Quality Truck Crane Qy70K-I

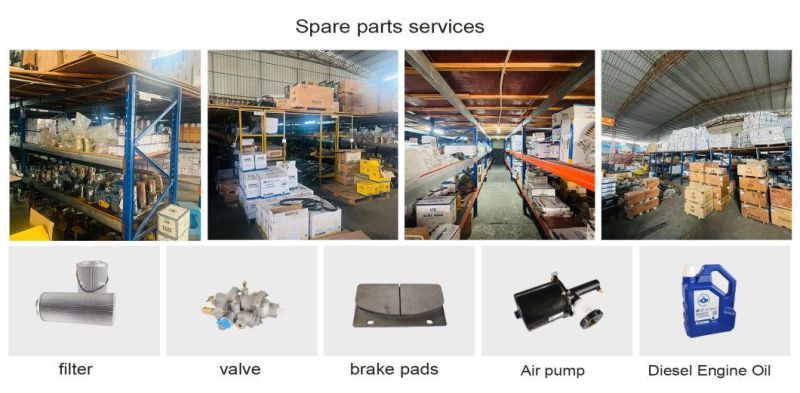

4. Long-term spare parts support:
Since 2015, in order to effectively solve our customers spare parts demand, we built a spare parts department, which get high speaking feedback from our clients.
Chinese Classic 70 Ton High Quality Truck Crane Qy70K-I

5. Long-term technical service support:
We have a professional technical team which provide technical support for our domestic or oversea clients. If clients have some technical problems which can't deal with it by self, we can provide video support or door to door support.
6. Door and door service:
Till now, we can support door and door assembling service if they can't assemble it when container arrived in some countries,such as Philippines, Zimbabwe, Mozambique, Kenya, Cambodia, Indonesia.... If the quantity is large, even can provide engineer indoor support.
Chinese Classic 70 Ton High Quality Truck Crane Qy70K-I

Chinese Classic 70 Ton High Quality Truck Crane Qy70K-I
7. Rich brands:

As we worked on construction machines more than 15 years, which already build nice strategic relationship with world brand company for competitive price and quality.support

Chinese Classic 70 Ton High Quality Truck Crane Qy70K-I

FAQ
1: What kind terms of payment can be accepted?
A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted
2: What certificates are available in Machinery?
A: For the certificate, we have CE, ISO, Gost, EPA(USA)CCC,
3: What about the delivery time?
A: 30 days after receiving the deposit.
4: What about the warranty time?
A: 12 months after shipment or 2000 working hours, whichever occuts first.
5. What about the Minimum Order Quantity?
A: The MOQ is 1 pcs
