Hot Sale XCMG Official Manufacturer Qy50k 50ton Truck Crane
Xuzhou Construction Machinery Group Co., Ltd.- After-sales Service:Overseas Service Center Available
- Warranty:1year
- Certification:CE, ISO9001: 2000
- Condition:New
- Maximum Lifting Height:>40m
- Maximum Lifting Weight:>16t
Base Info
- Model NO.:Qy50k
- Shaft Number:2
- Crane Jib:Two-Arm
- Type:Truck Crane
- Application:Construction Usage
- Tower Crane Type:Under Slewing Cranes
- Sling Type:Cable
- Main Girder Form:Double Girder
- Power Source:Hydraulic
- Moving Type:Wheel
- Installation:Assembled
- Total Length:13100mm
- Total Width:2750mm
- Total Height:3350mm
- Transport Package:Comply with Export Packaging Requirements
- Specification:ISO
- Trademark:XCMG
- Origin:Xuzhou, Jiangsu, China
- HS Code:87059091
- Production Capacity:10000,Year
Description
Overview
Item QY50K Unit Dimensions Total length 13100 mm Total width 2750 mm Total height 3350 mm Weight Total weight in a traveling state 38580 kg Front axle load 12950 kg Rear axle load 25630 kg Power Engine model Euro lll Hangfa WD615.334/Euro ll hangfa WD615.46 Rated Engine Power 206/2200 266/2200 kW/(r/min) Engine rated torque 1100/1400 1460/1400 N.m/(r/min) Travel Max.travel speed 66 75 Km/h Min. turning diameter 24 24 mm Min. ground clearance 285 285 mm Approach angle 16 16 ° Departure angle 11 11 ° Max. grade ability 27 46 % Fuel consumption of 100km 42 42 L Lifting performance Max. lifting capacity 50 t Min. rated working radius 3 m Turning radius at swing table tail 3482 m Max. lifting torque kN.m Basic boom lifting height 1764 m Fully-extended boom lifting height 823.2 m Fully-extended boom+ luffing jib m Outrigger longitudinal distance span 5.65 m Outrigger lateral distance span 6.6 m Working speed Boom elevating time 88 s Boom full elevating time 180 s Max. slewing speed 2 r/min Main winch max. speed(single line) 85 m/min Auxiliary winch max. speed(single line) 85 m/min

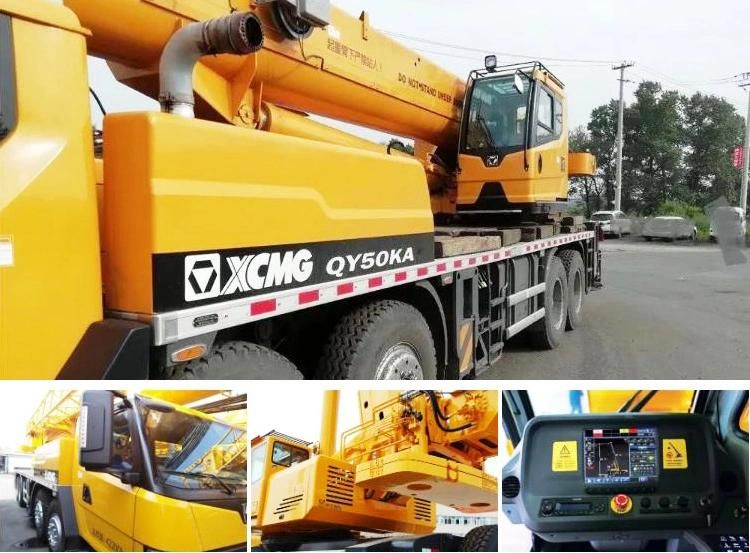

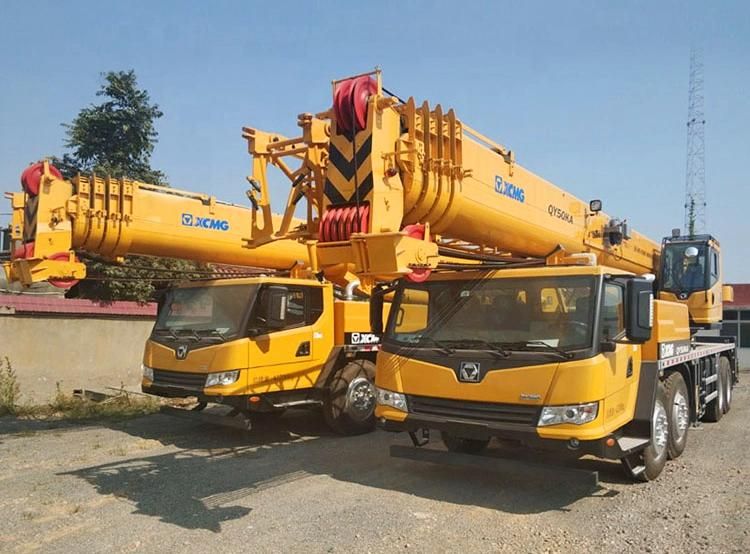

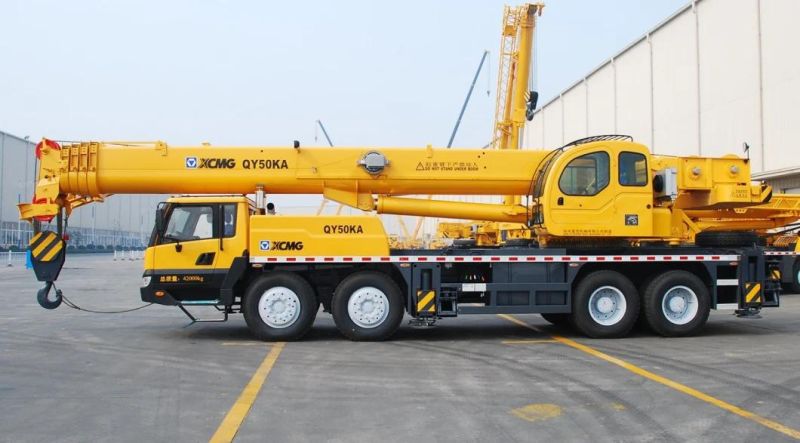

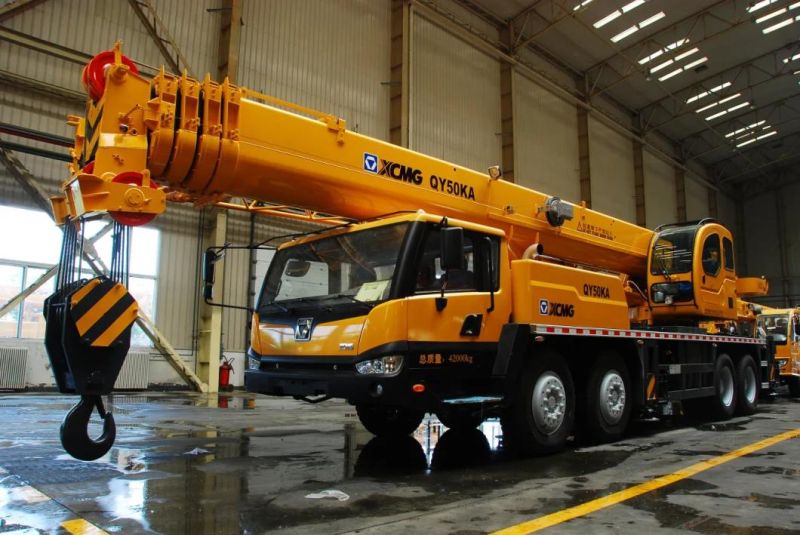

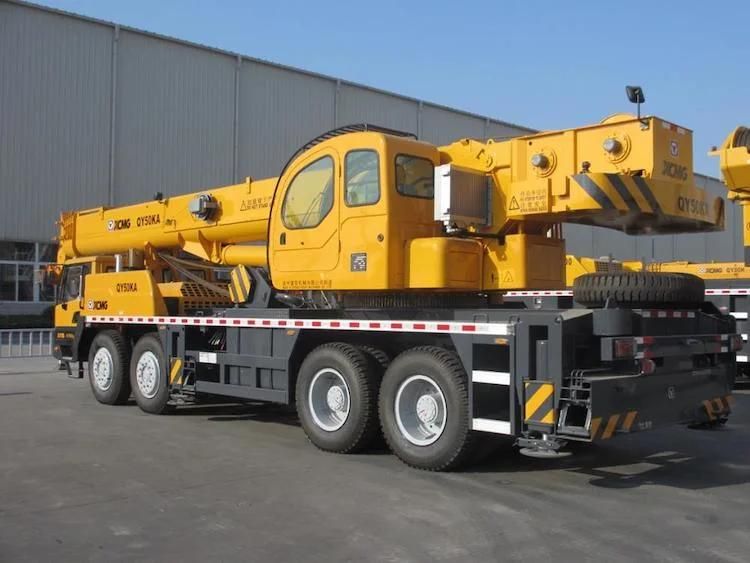

Product Show
Company Profile
FAQ
1: What kind terms of payment can be accepted?
A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted
2: What certificates are available in Machinery?
A: For the certificate, we have CE, ISO, Gost, EPA(USA)CCC,
3: What about the delivery time?
A: 30 days after receiving the deposit.
4: What about the warranty time?
A: 12 months after shipment or 2000 working hours, whichever occuts first.
5. What about the Minimum Order Quantity?
A: The MOQ is 1 pcs.
