• Model NO.：XGC16000
• Specification：15.5*3.4*3.12m
• Trademark：XCMG
• Origin：Jiangsu, China
• Production Capacity：10000 Unit,Units Per Year

ItemUnitParameter valueParameter Item-XGC16000Max. rated lifting capacity for boom(t)1250Max. rated lifting capacity for luffing jib(t)477Max. load moment(t.m)15510Max. rated lifting capacity for tower jib(t)477Max. rated lifting capacity for boom single top(t)45Max. rated lifting capacity for special jib(t)629Boom length(m)30~120( heavy type)48~150(light type)Boom luffing angle(°)-3~85Tower jib length(m)30~108Max. dimension of single unit in transport state (L×W×H)(m)15.5×3.4×3.12Special jib length(m)18Max. single line speed for hoist mechanism(m/min)130Max. single line speed for boom luffing mechanism(m/min)2×53Max. slewing speed(r/min)0.9Max. travel speed(km/h)0.8Grade ability(%)30Mean ground pressure(MPa)0.156Max. single line speed for tower jib luffing mechanism(m/min)125Max. single line speed for superlift luffing(m/min)130Model-QSK23Engine power(kW)641Emission-EU IIOverall crane mass(t)850(main hook, 30m boom)Max. mass of single unit in transport state(t)59

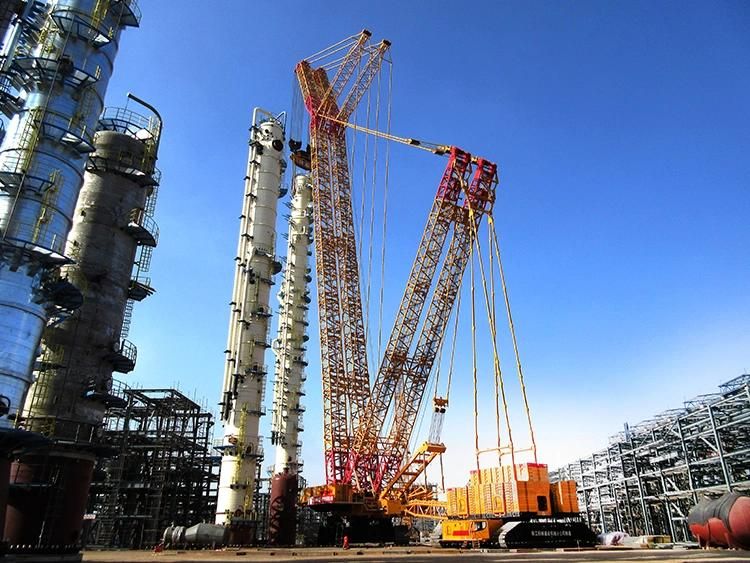

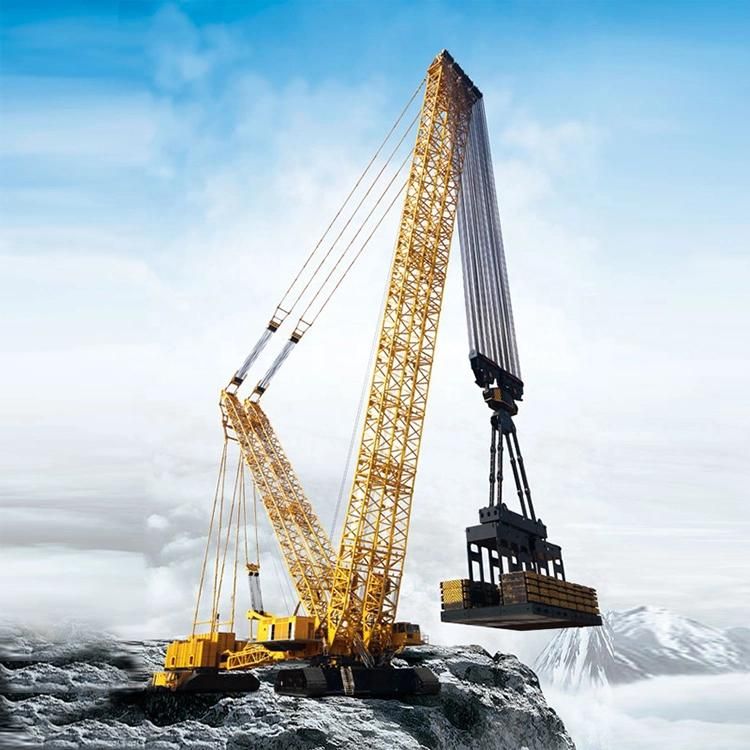

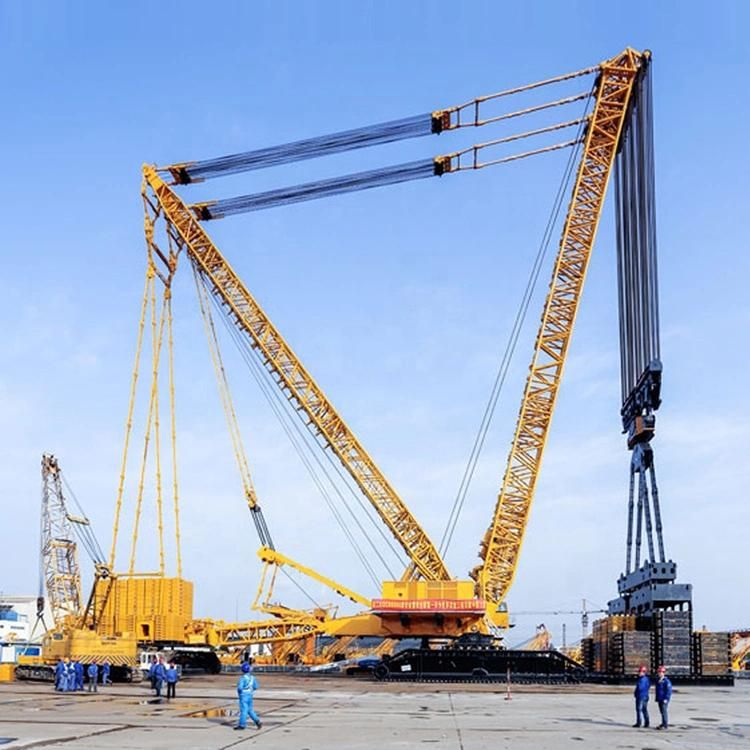

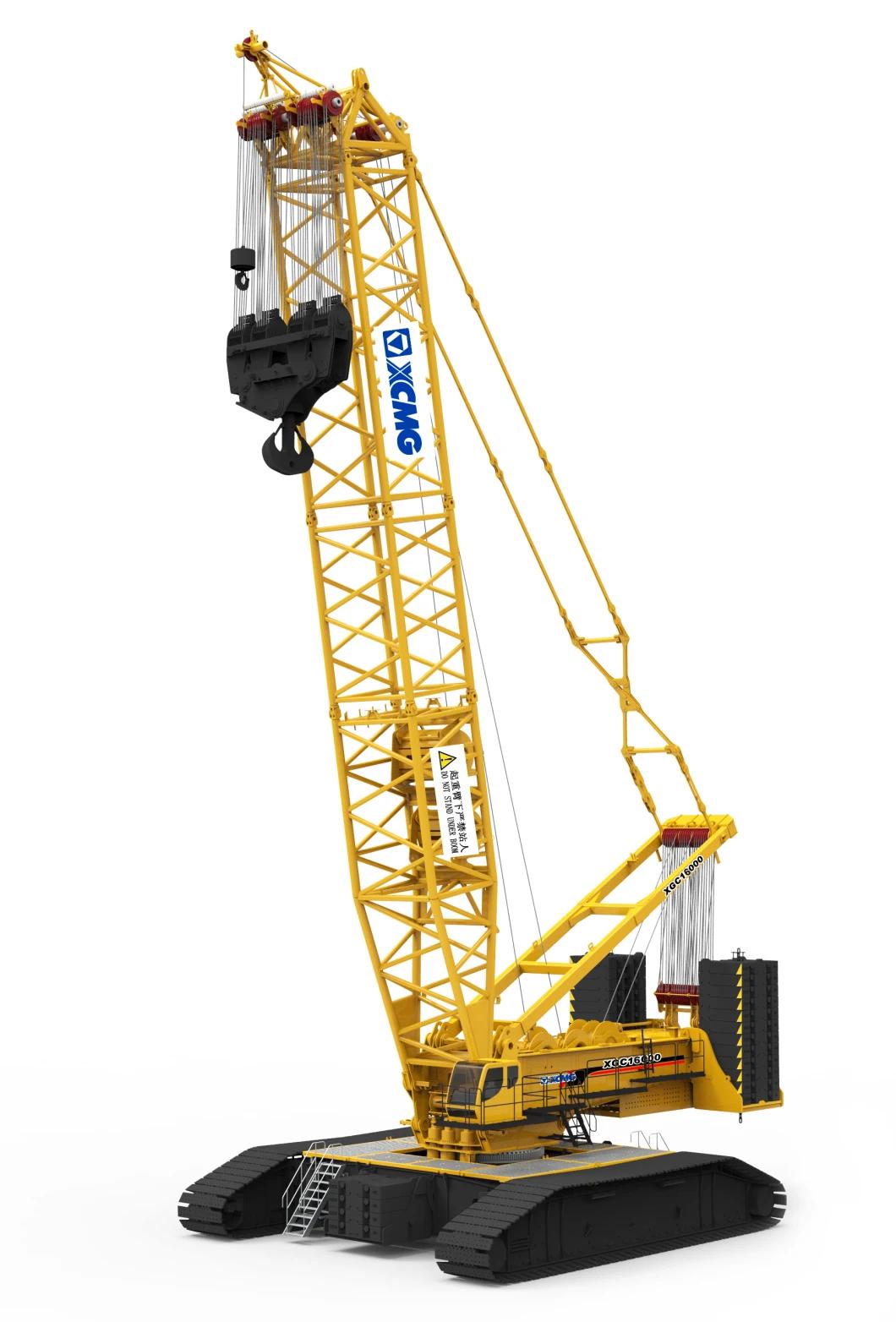

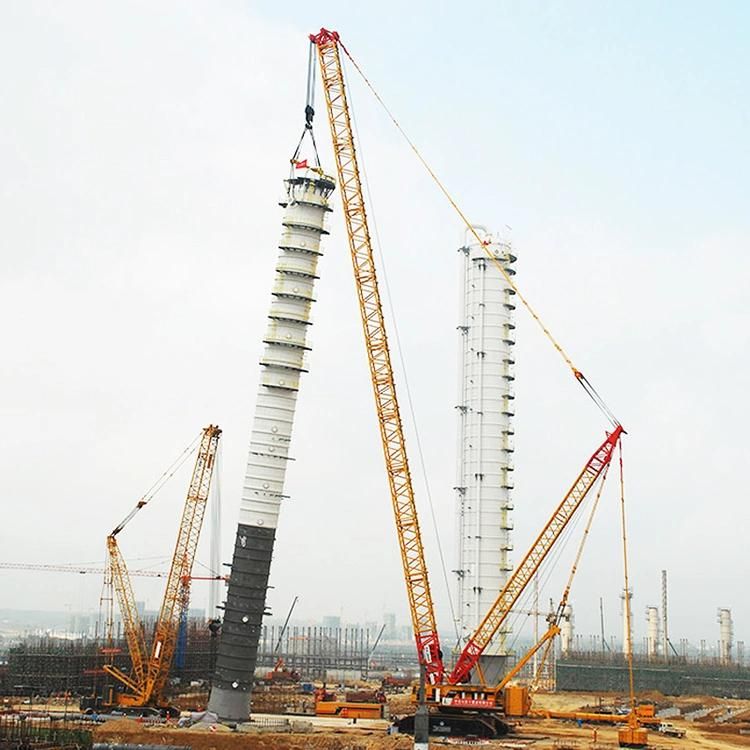

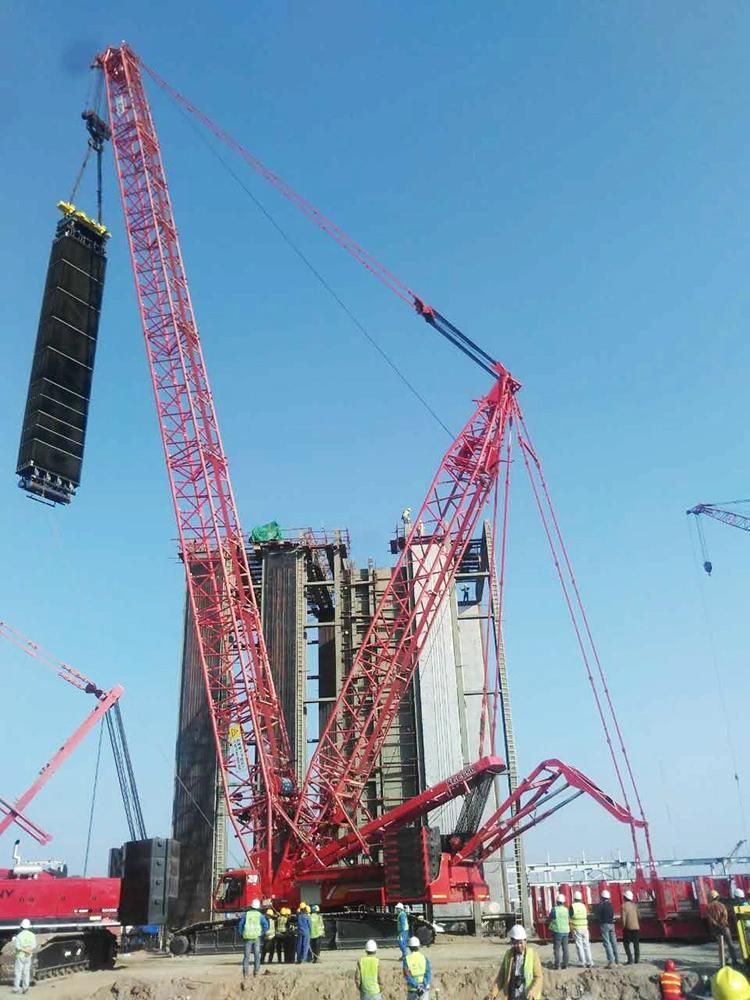

product show
