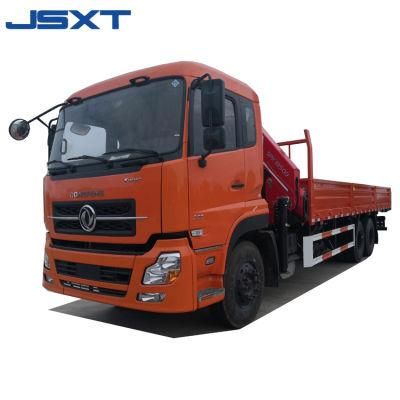

Big Promotion 55ton Crane Truck Mounted Crane for Sale
Newindu Construction Engineering (Shanghai) Co., Ltd.- After-sales Service：Video Technical Support, Online Support
- Warranty：1 Year
- Certification：CE, ISO9001
- Condition：New
- Maximum Lifting Height：>40m
- Maximum Lifting Weight：>16t
Base Info
- Model NO.：QY55V
- Shaft Number：3
- Crane Jib：Five-Arm
- Type：Straight Arm
- Max. Traveling Speed：76km,H
- Max. Gradeability：32%
- Min. Ground Clearance：260mm
- Power：247kw
- Fuel Consumption：43L
- Transport Package：Nude
- Specification：13300*2750*3550 mm
- Trademark：NEWINDU
- Origin：China
- Production Capacity：1000units,Month
Description
Detailed PhotosProduct Parameters 1470 (Outrigger beam half extended)Item Value Remarks Working performance specification Max. rated total lifting capacity kg 50000 Max. load moment of basic boom kN.m 1764 Max. load moment with max. main boom length kN.m 940.8 793.8(Outrigger beam half extended) Max. lifting height of basic boom m 11.6 Max. lifting height of main boomm 42.1 Deformation of boom is not taken into consideration Max. lifting height of fly jibm 58.3 Working speed Max. speed of single rope on main winch m/min 130 The 4th layer of drum Max. speed of single rope onauxiliary winch m/min 72 The 2nd layer of drum Derricking time of boom s 50 Telescopic time of boom s 95 Slewing speed r/min 0~2 Traveling specification Max. traveling speed km/h 76 Max. gradeability % 32 Min. turning circle diameter m 24 Min. ground clearance mm 260 Limits for exhaust pollutants and smoke Comply with related standards GB3847-2005 GB17691-2005 (Stage III)
