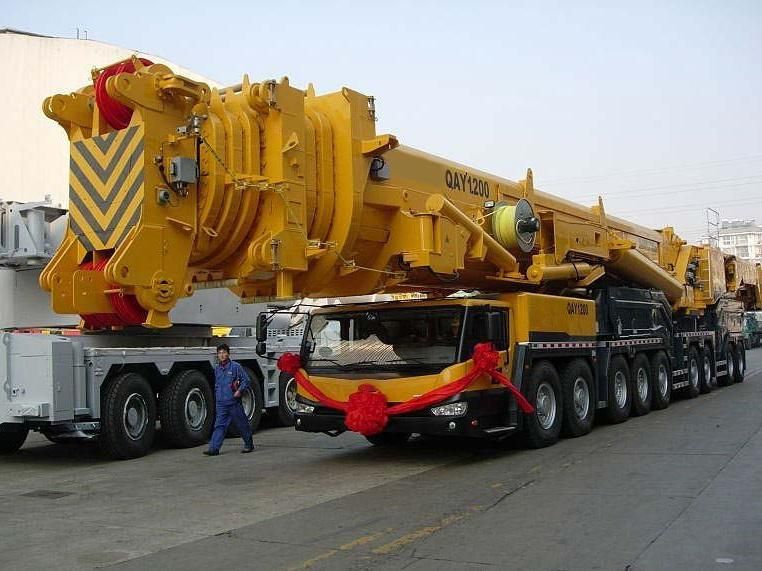

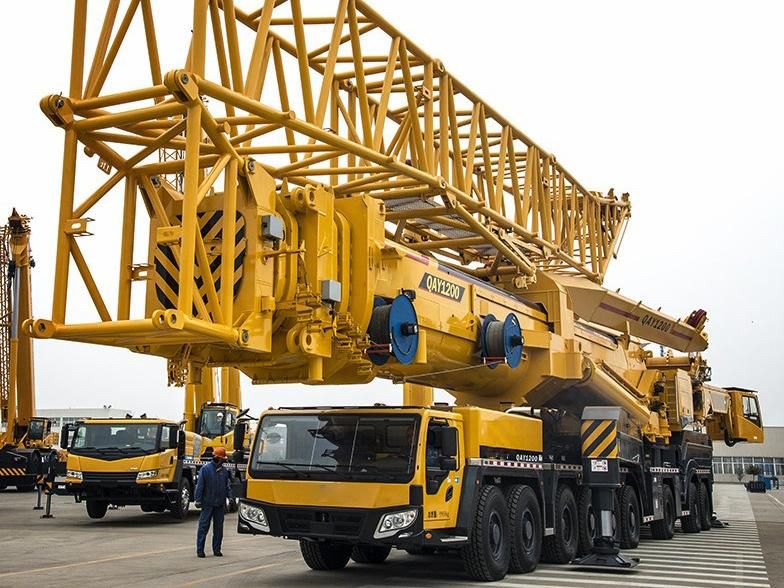

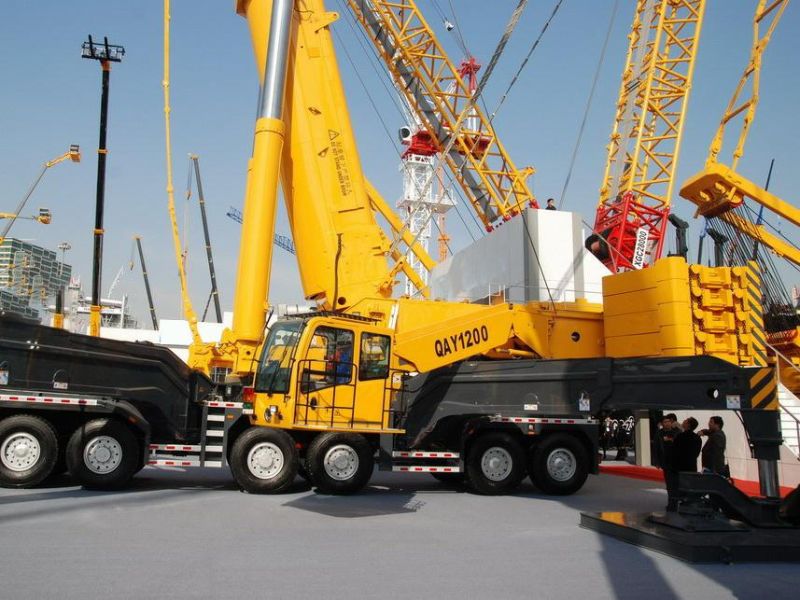

• Model NO.：QAY1200
• Shaft Number：3
• Crane Jib：Five-Arm
• Type：Straight Arm
• Application：Construction
• Place of Origin：Hunan, China
• Rated Lifting Moment：6664kn.M
• Span：8m
• Weight：450000 Kg
• Max Lifting Height：136m
• Max Boom Length：84m
• Counter Weight：142t
• Max Traveling Speed：70km,H
• Wheel Formula：12 * 8 * 12
• Max Gradeability：45%
• Jib Length：42 (Fixed), 84 (Luffing)M
• Max Lifting Moment：6664kn.M
• Max Lifting Capacity：450t
• Max. Lifting Height：25m
• Transport Package：Nude Packing
• Specification：SAC3500
• Trademark：Truck crane
• Origin：Jiangsu, China
• HS Code：8705109200
• Production Capacity：1000 Unit,Units Per Month

Product OverviewProduct ParamentersWhole length20490(mm)Full width of the whole machine3000(mm)Whole machine high4000(mm)Wheelbase1500+2170+1500(mm)Tread2590(mm)General quality of running state95000(kg)Axle load10800×3+11170+10870(kg)Engine model (on the bus)OM460LA.E3A/5-Engine rated power260/1800(kw/(r/min))Engine rated torque1750/1300(N.m/(r/min))Engine model (get off)OM502LA.E3B/1-Engine rated power482.2/1800(kw/(r/min))Engine rated torque3000/1300(N.m/(r/min))Maximum travel speed≥75(km/h)Minimum stable running speed≤2(km/h)Minimum turning diameter≤30(m)Minimum turning diameter-(m)Maximum climb40(95t)(%)Minimum ground clearance278(mm)Approach angle12(°)Departure angle28(°)Maximum rated total weight1200(t)Minimum rating3(m)Maximum lifting torque of the basic arm35280(kN·m)Turning radius10700(mm)
