Rail Mounted Mobile Low Head Room 5t 10t 15t Lh Gantry Crane with Good Quality and Low Price and Quality for Sale
Shandong Mingdao Heavy Industry Machinery Co., Ltd.- Warranty：2 Years
- Certification：RoHS, CE, ISO9001
- Condition：New
- Maximum Lifting Weight：50-100t
- Maximum Lifting Height：25-30m
- Operation Form：Pendent Control+ Remote Controco , Remote Control
Base Info
- Type：Common Gantry Crane
- Main Girder Form：Single Girder
- Product Name：Half Gantry Crane
- Power Source：220V,380V,415V or on Request
- Color：Industrial Yellow,Red or on Request
- Girder Type：Box Type , Truss Type
- Insulation：F
- Moving Type：Rail Mounted
- Power Supply Type：Cable Reel
- Application：Widely Applied for Indoor and Outdoor Workplaces
- Aftersale Service：Engineer Overseas Service Available
- Electric Parts：Siemens Delixi Chnt
- Hoist Type：Rope Hoist , Chain Hoist on Request
- Work Duty：A3-A5
- Lift Capacity：on Request
- Motor：Gear Motor
- Transport Package：Standard Package for Ocean Shipping or Railway
- Specification：Materials: Q235B,Q345B
- Trademark：Mingdao
- Origin：China
- HS Code：8426193000
- Production Capacity：1000sets, Year
Description
Capacity
T
3
5
10
16
20
Span
m
12,16,20,24,30
Operational method
Pendent Line With Press Button /Cabin/ Remote
Speed
Lifting
m/min
8 ,8/0.8
8,8/0.8
7,7/0.7
3.5
3.5
Cross traveling
20
20
20
20
20
Long traveling
Ground
20
20
20
20
20
Cabin
20, 30,45
20, 30,40
30,40
30,40
30,40
Motor
Lifting
Type /kw
ZD41-4/4.5
ZDS1-4/0.4/4.5
ZD141-4/7.5 ZDS10.8/4.5
ZD151-4/13 ZDS11.5/4.5
ZD151-4/13
ZD152-4/18
Cross traveling
ZDY12-4/0.4
ZDY121-4/0.8
ZDY21-4/0.82
ZDY121-4/0.82
YZD-4/0.84
Long traveling
Ground
ZDY21-4/0.82
ZDY21-4/1.52
YZY22-4/1.52
YZR132M2-6/3.72
YZR22-4/1.52
YZR160M1-6/6.32
YZR160M2-6/8.52
YZR160M1-6/6.32
YZR160M2-6/8.52
Cabin
ZDR100-4/1.52
ZDR112-4/2.12
YZR112L1-4/2.12
YZR160M1-6/2.12
YZR112L1-4/2.12
YZR160M2
YZR160M2-6/8.52
YZR160L2-6/112
YZR160M2-6/8.52
YZR160L2-6/112
Electric hoist
Model
CD1/MD1
CD1/MD1
CD1/MD1
CD1
HC
Lifting height
m
6,9,12,18,24,30
Working duty
A3
Power supply
380V 60HZ 3phase AC (According to your demand
Safety Devices for overhead bridge crane:
To guarantee the normal operation of crane and avoid the personal casualty and mechanical damage, the safety device weprovide are not only the electric protective devices or alarm bell but also other
equipments as following:
1.Overload Limit Switch
2. Rubber Buffers
3.Electric Protective Devices
4.Emergency Stop System
5.Voltage Lower Protection Function
6. Current Overload Protection System
7. Rail Anchoring
8.Lifting Height Limit Device
Features:
- Crane traveling limit switch
- Weight overload protection device
- Lifting height limit device
- Voltage lower protection function
- Phase sequence protection function
- Emergency stop function
Appications indoor or outdoor:
Service:
Pre-Sales Service
1.Inquiry and consulting support* View our Factory
2.Design drawing of CAD
During production period
1.Strict quality control system, supervision the work to ensure the best crane for you.
2. Strict production line, make sure manufacture the goods on time.
3. Send real time production procedure video and pictures for customers
4. Best cooperation forwarder provide the soonest and reliable service for our goods.
After-Sales Service
1.Training how to instal the machine, training how to use the machine.* Engineers available to service machinery overseas.
2. Installation service
3. Online support* Radio support
4. Telephone support. Engineering service
5. Will provide all technical documents by U flash desk when delivery and soft copy (Installation manual, instruction, electrical drawing, 3D drawing etc)
Customer feedback:
Customer visiting factory :

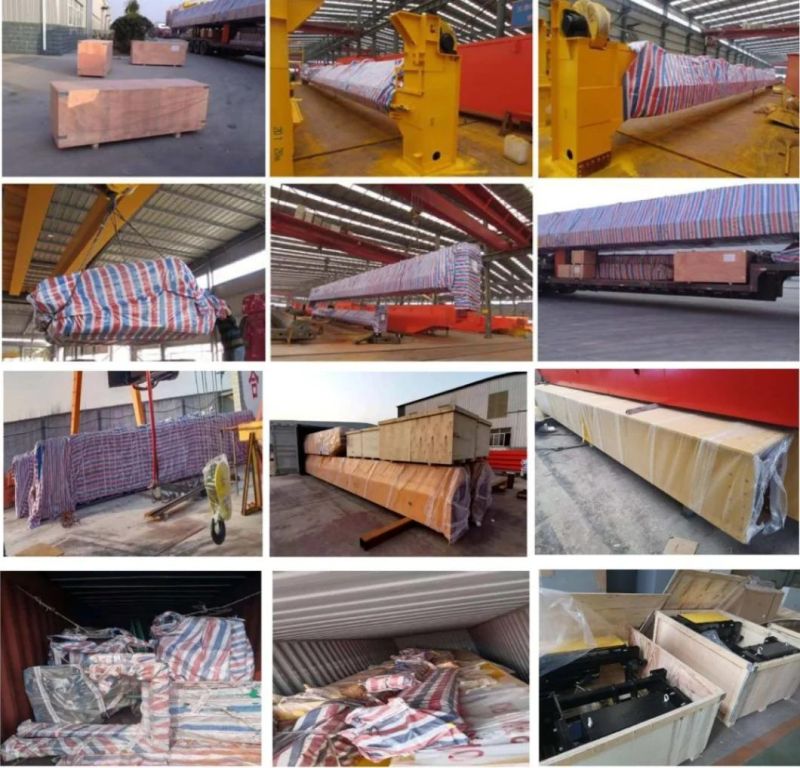

Packing and Shipping:
1.Electric parts and electric hoist packed by high quality plywood crate,
2.Other parts packed by Woven bag.3.Shipped by Conatiners or Bulk Ship
FAQ
1.Can the cranes be customized?
Yes,we are the lifting supplier more than 30 years experience, every customer's working condition is different, all of our products can be customized depend on customers' requirements.
Please give us the information as clear as you can, so we can give our best design to suit for your demands.
2.How many operation methods for my selections?
We provide pendent controller with push button control type, remote control type or cabin control type.Please tell us what kind
of operation way you need.
3.I have low headroom in my workshop, is it possible to install a crane in it?
We have special products for low headroom workshop, our engineer can give the best design according to your dimensions.
4.Do you supply lift tools?
Yes, we can provide any kind of lifting tools such as hook, electromagnetic, grab bucket etc...
5.In order to offer the most suitable design solution for you, it will be great helpful if you can offer us the following information to us:
1. Lifting capacity.
2. Span length.(rail center to rail center)
3. Lifting height.(hook center to ground)
4. Have you installed the rails? Do you need us to supply the rails? How long is it?
5. Power supply: Voltage.
6. Working condition: what kind of material to lift? temperature?
7. It would be much better if it is possible for you to offer the drawing photo of your workshop.
