• Model NO.：KSQ
• Maximum Lifting Weight：>200t
• Main Girder Form：Double Girder
• Type：Beam
• Overload Protective Device：Included
• Lower Voltage Protection Function：Included
• Emergency Stop Function：Included
• Working Duty：A3~A6
• Speed：Frequency Inverter
• Motor：China or Germany
• Transport Package：Fumigation Wooden Box
• Specification：GB,FEM,DIN
• Trademark：Kuangyuan
• Origin：Henan, China
• HS Code：84261120
• Production Capacity：6000 Sets Per Year

Basic Info.

Model NO. KSQ Maximum Lifting Weight >200t Main Girder Form Double Girder Type Beam Overload Protective Device Included Lower Voltage Protection Function Included Emergency Stop Function Included Working Duty A3~A6 Speed Frequency Inverter Motor China or Germany Transport Package Fumigation Wooden Box Specification GB/FEM/DIN Trademark Kuangyuan Origin Henan, China HS Code 84261120 Production Capacity 6000 Sets Per Year

Product Description

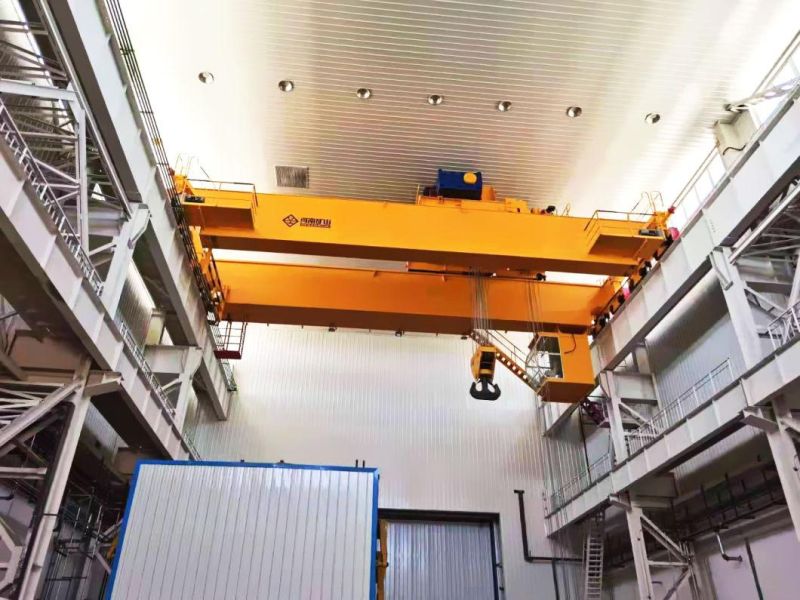

High quality cabin control electric double beam European overhead crane
Product introduction:
Capacity: 5,10,16/3.2,20/5,32/5,50/10T, up to 450/80T
Span: 10.5-31.5 m or more
Lifting height: 6-30 m or more
Lifting speed: 0.9-15 m/min or more
Cross traveling: 5~45 m/min or more
Long traveling: 20~92 m/min or more
Widely used in: Factories, warehouses, etc.

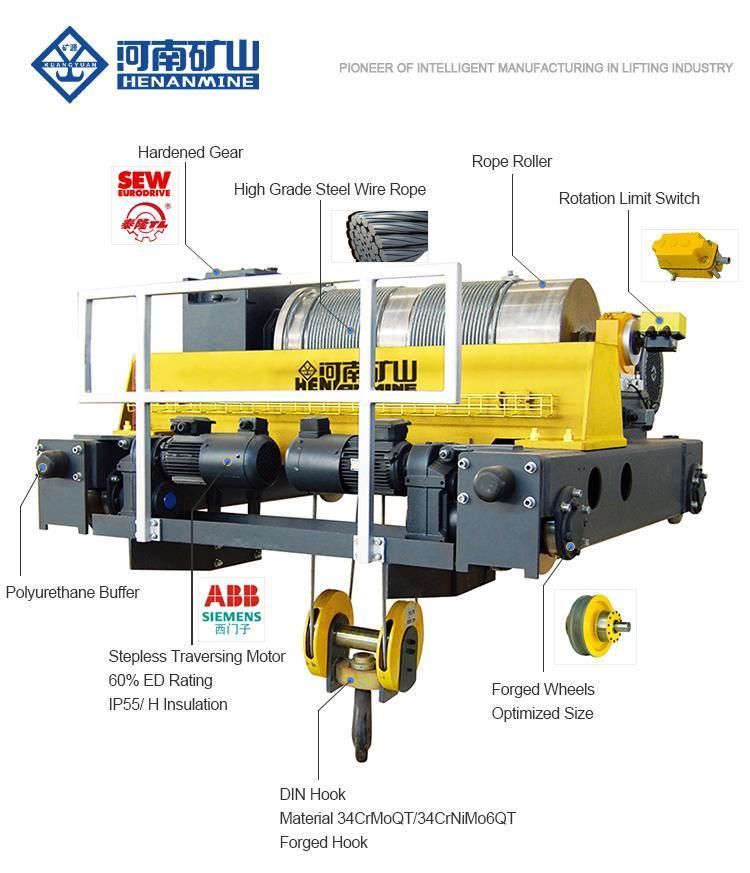

Double girder overhead crane is composed with double girder frame, crane traveling end truck, and the top running trolley with lifting and travelling device. The motors, reducers and brakes in this model crane lifting and traveling mechanism are separate parts, which makes the crane higher working duty from A3~A6 (ISO) and faster lifting and traveling speeds.
The cranes standard speeds are adjustable, which allow the crane adjust its speed under  10 grades speeds. It could move very slow which makes it possible to do very accurate works.

This model overhead crane is designed under GB regulation, passed ISO, CE certification.
The crane lifting and travelling speeds are steady and accurate.




Safety feature:
1. Overload protection in the event of overload, the hoist unit switches off and only the lowering motion is possible
2. Long and cross travel limited by means of preliminary and final limit switches or infrared anti-collision device
3. Anti-falling protection for the Three-in-One electric motor of trolley and crane prevents from accidental falling
4. All movements can be switched off by actuating the emergency-off switch at the control station via a main contact
5. High quality long time bearing polyurethane materials buffer fixed at the end of trolley travelling and crane travelling to prevent over traveling
6. Safety hook latch used for avoiding the lifted material out off from the hook
7. Audible and visual alarm device to inform the person stay near by the travelling crane
8. Rain Cover for lifting mechanism of outdoor cranes, electric cabinet and driving mechanism
9. Protective earth conductor is fitted as standard
10. Voltage lower protection system
11. Current overload protection system and more (contact with us more details)

Design standard
1. Overhead crane and gantry crane manufacturing and tolerances of rail installation GB/T10183-2005
2. Crane test specification and procedures GB/T5905-1986
3. Crane electric control equipment JB/T4315-1997
4. Important application wire rope GB8918-2006
5. Carbon structure steel GB/T700-2006
6. Low alloy high strength structure steel GB/T1591-2008
7. Welding joint radiographic inspection standard JB928-1994
8. Steel welding joint manual ultrasonic flaw detection way GB11345-1989

Installation service
Henan Mine Crane Co.,LTD crane could supply not only overhead crane but also the overhead crane solutions. Firstly, we will supply overhead bridge crane design, overhead crane manual, overhead crane drawing, overhead crane wiring diagram, overhead crane electrical diagram and overhead crane safety video before or after delivery, our technician will do supervision the installation according to the document, of course, the customer can do installation by themselves according to their requirement.

After installation, our technician will indicate to do the load test according to the overhead crane load test procedure, then overhead crane operator training and overhead crane maintenance training, all the procedure will be made according to the overhead crane training videos and overhead crane training PowerPoint.
