35 Ton Rough Terrain Crane, Heavy Hydraulic Crane

Jinan Sinoheng Import and Export Co., Ltd.
  • Certification：ISO9001
  • Condition：New
  • Maximum Lifting Height：30-40m
  • Maximum Lifting Weight：>16t
  • Shaft Number：2
  • Max Lifing Capacity：35 Tons

Base Info

  • Model NO.：QRY35
  • Overall Dimension：2600*3060*3760mm
  • Dead Weight in Travel State：2900kg
  • Tread：2560mm
  • Axle Base：3950mm
  • Engine Rated Output：169,2500kw (R,Min)
  • Engine Rated Torque：900,1200-1700n.M (R,Min)
  • Max. Travel Speed：40km,H
  • Min. Ground Clearance：400
  • Max. Grade Ability：55%
  • Transport Package：Nude
  • Specification：CE, ISO9001: 2000
  • Trademark：SINOHENG
  • Origin：China
  • Production Capacity：500PCS,Month

Description

ItemsUnitParametersOutline DimensionOverall lengthmm12600Overall widthmm3060Overall heightmm3760 Axle Base mm3950Treadmm2560WeightDead weight in travel stateKg29000Axle loadFront axleKg14000Rear axleKg15000PowerEngine rated outputKw (r/min)169/2500Engine rated torqueN.m (r/min)900/1200-1700TravelTravel speed
Max. travel speedKm/h40
Min. tTuring radius

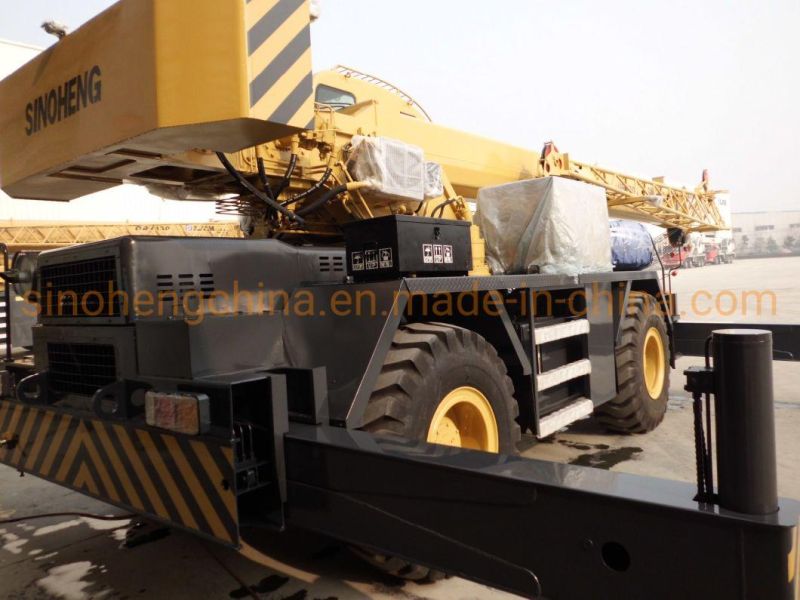

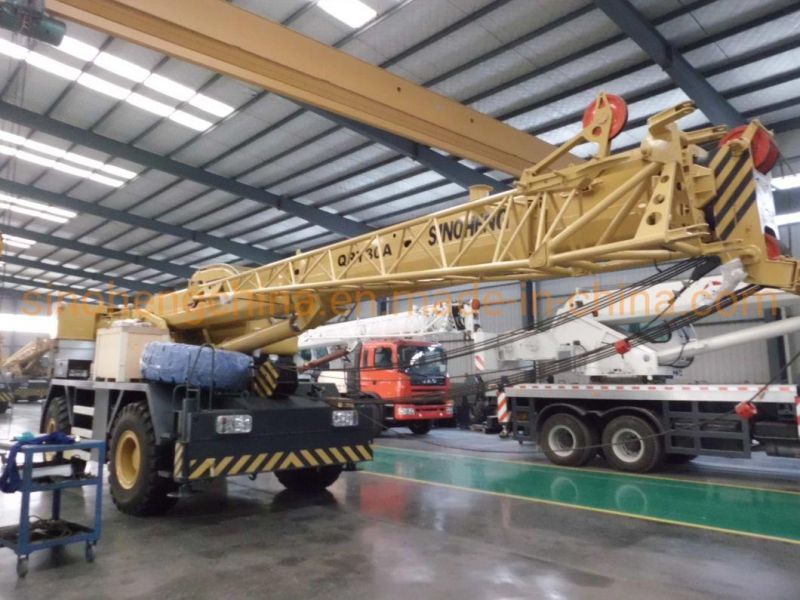

urning radiusmm5100Turning radius at swing table tailmm3530Min. ground clearancemm400Approach angle°26Departure angle°25Braking distance (travel speed 30km/h)m≤8.5Max. grade ability%55Max. noise out of crane when acceleratingdB (A)88SINOHENG 35 ton Rough Terrain Crane photos :
35 Ton Rough Terrain Crane, Heavy Hydraulic Crane35 Ton Rough Terrain Crane, Heavy Hydraulic Crane35 Ton Rough Terrain Crane, Heavy Hydraulic Crane
