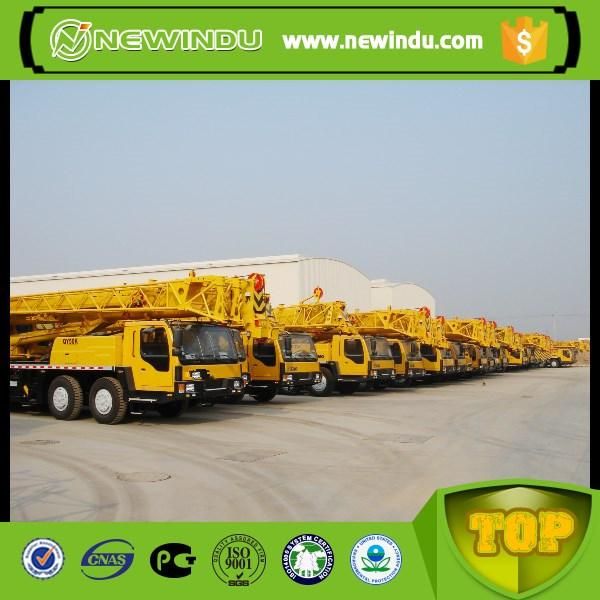

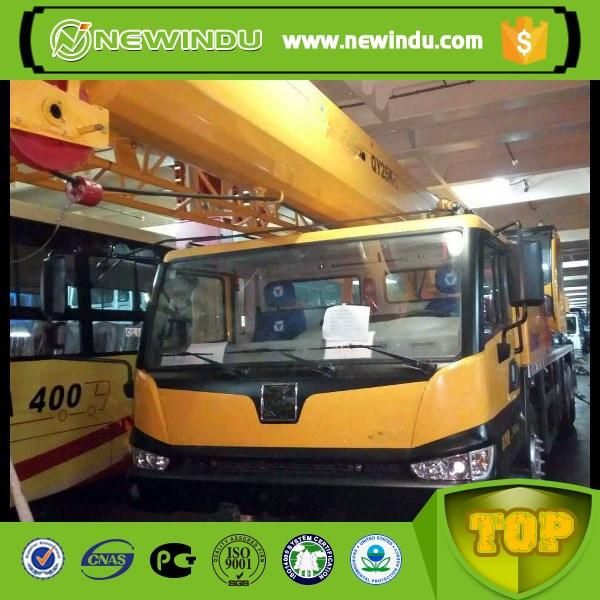

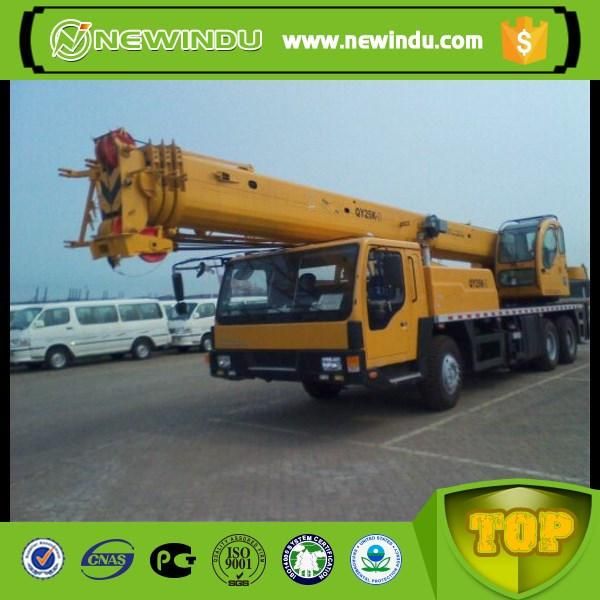

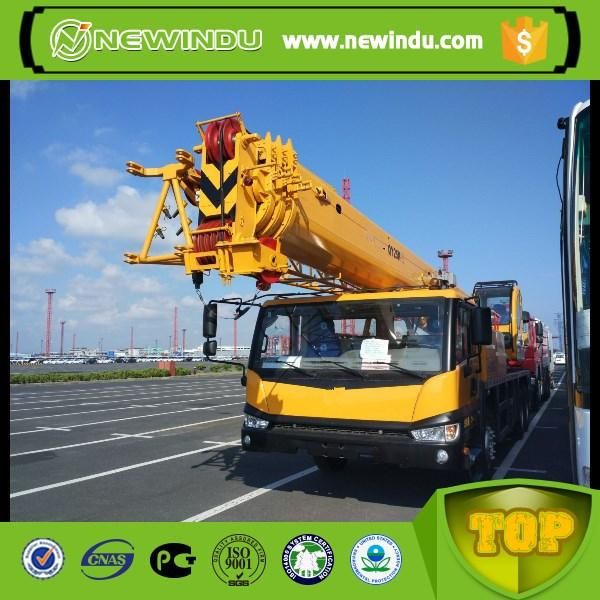

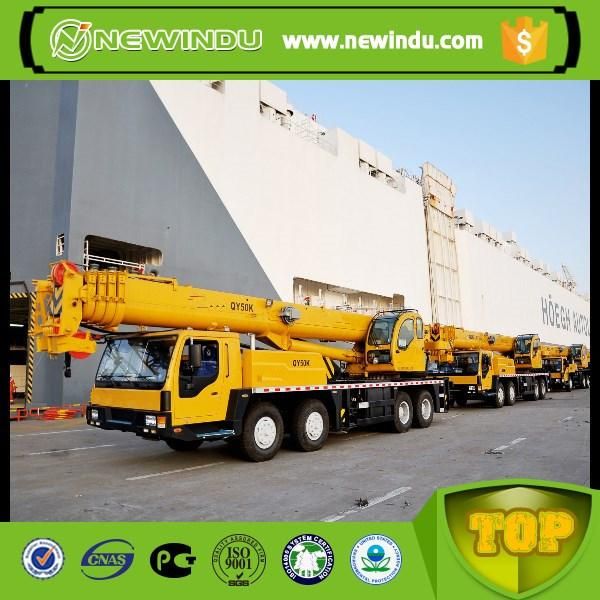

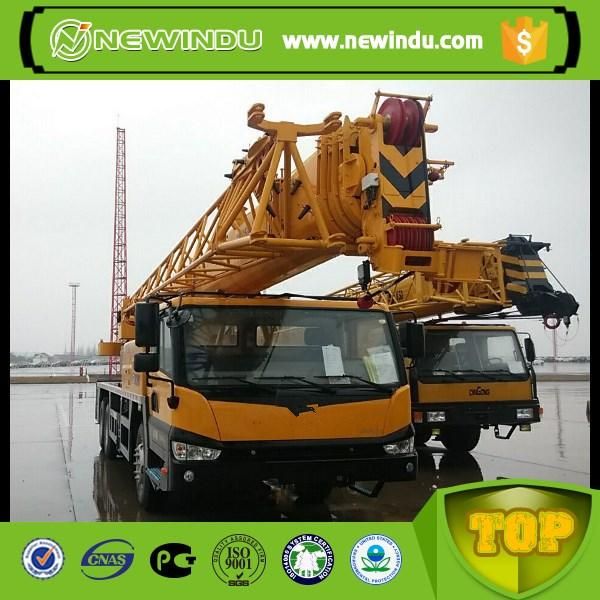

China Brand Qy16b. 5 16ton Grue Mobile Truck Crane
Newindu Construction Engineering (Shanghai) Co., Ltd.- After-sales Service：Overseas Service
- Warranty：One Year
- Certification：ISO9001
- Condition：New
- Maximum Lifting Height：30-40m
- Maximum Lifting Weight：14-16t
Base Info
- Model NO.：QY16B. 5
- Shaft Number：3
- Crane Jib：Four-Arm
- Type：Straight Arm
- Operating Weight：24000kg
- Engine：Wd415.21
- Max. Travel Speed：68-75km,H
- Min. Ground Clearance：270mm
- Transport Package：Nude Packing
- Specification：12110x2500x3250mm
- Trademark：China brand
- Origin：China
- HS Code：87051091
- Production Capacity：20units, Month
Description
Dimension
Unit
QY16B.5
Overall length
mm
12110
Overall width
mm
2500
Overall height
mm
3250
Weight
Total weight in travel
kg
24000
Front axle load
kg
6400
Rear axle load
kg
17600
Power
Engine model
WD415.21
SC8DK230Q3
Engine rated power
kW/(r/min)
155/2200,170/2200
Engine rated torque
N.m/(r/min)
820/1400
830/1400
Travel
Max. travel speed
km/h
75
Min. turning diameter
mm
20000
Min. ground clearance
mm
270
Approach angle
°
21
Departure angle
°
10
Max. grade ability
%
24
Fuel consumption for 100km
L
≤35
Main performance
Max. rated total lifting capacity
t
16
Min. rated working radius
m
3
Turning radius at turntable tail
m
3.14
Max. lifting torque
KN.m
720
Base boom
m
9.9
Fully extended boom
m
31.1
Fully extended boom+jib
m
39.4
Longitudinal outrigger span
m
4.6
Lateral outrigger span
m
5.4
Working speed
Boom luffing time
s
60
Boom full extension time
s
95
Max. swing speed
r/min
2.5
Main winch full load/no load (single rope)
m/min
54/100
Aux. winch full load/no load (single rope)
m/min
54/100
