Ouco 0.7t6m Hydraulic Telescopic Marine Crane Stable Operation

JIANGSU OUCO HEAVY INDUSTRY AND TECHNOLOGY CO., LTD.
  • After-sales Service：Provided
  • Operation Form：Crane Console
  • Warranty：1 Year
  • Certification：CE, ISO9001
  • Product Name：Mini Electric Hydraulic Telescopic Boom Marine DEC
  • Swl：0.6t5m

Base Info

  • Model NO.：OUCO-0.7T6M-SB
  • Crane Type：Telescopic Boom
  • Max.Working Radius：5m
  • Hoisting Height：12m
  • Slewing Speed：1.5rpm
  • Hoisting Speed：18m,Min
  • Dead Weight：800kgs
  • Transport Package：Nude
  • Specification：Standard
  • Trademark：OUCO
  • Origin：Jiangsu. China
  • HS Code：8426990000
  • Production Capacity：100sets,Year

Description

Basic Info.

Model NO. OUCO-0.7T6M-SB Crane Type Telescopic Boom Max.Working Radius 5m Hoisting Height 12m Slewing Speed 1.5rpm Hoisting Speed 18m/Min Dead Weight 800kgs Transport Package Nude Specification Standard Trademark OUCO Origin Jiangsu. China HS Code 8426990000 Production Capacity 100sets/Year

Product Description

Product descriptionThis 0.7T6M telescopic boom marine crane is mainly installed on the deck of bulk carriers or yachts, mainly used for lifting various goods, with multiple lifting points and a large operating range, this telescopic boom marine crane has the advantages of light weight, stable operation, sturdy and reliable, can be shipped as a whole, easy to install and maintain, and after various tests and inspections before leaving the factory, the quality is trustworthy!
Main Features and advantages
The advantages of the telescopic cranes are low weight and less complex design making them maintenance-friendly.
This offshore crane especially wildly been used in the mild-east area for the OSV (oil service vessel); which is especially
designed according to the harsh working environment there. OUCO Marine Telescopic cranes can be designed and
manufactured by clients' requirements in our own factory.
Technical Specification

SWL0.7t6m
Working Radius1~6m
Hoisting Speed20m/min
Hoisting Height12m
Slewing Speed~1.5r/min
Slewing Angle360°
Luffing Angle0-75°
Design Temperature-10° - +45 °
Tirm≤2°
Heel≤5°
HPU7.5KW
Hydraulic system pressure18Mpa
Power sourceAC380V, 50Hz, 3P
Protect ClassIP56
Hydraulic syste flow20L/min
Dead weight + HPU weight580kg +200kg

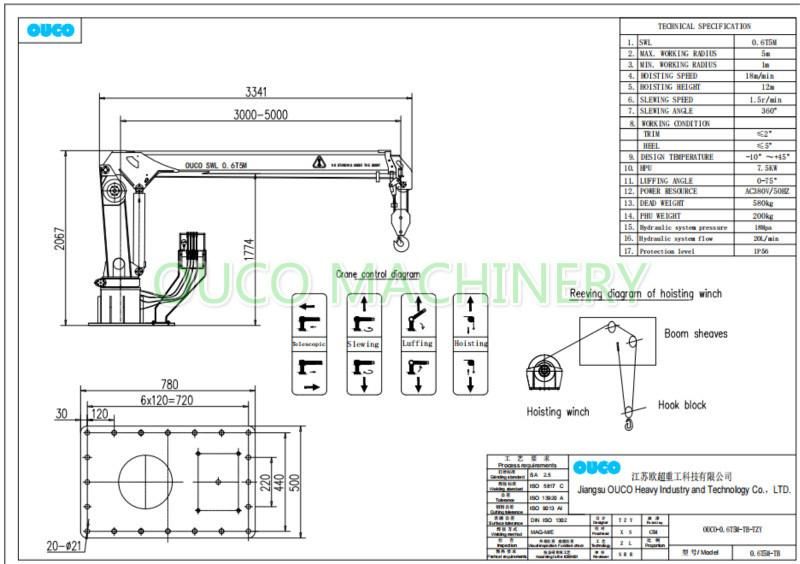

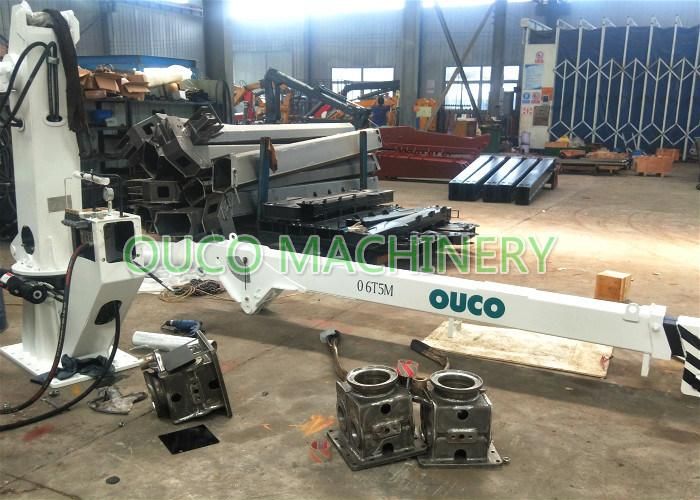

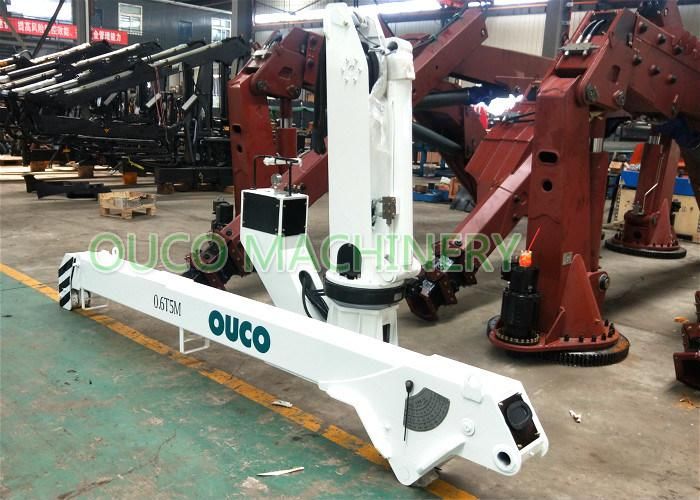

   General ArrangementOuco 0.7t6m Hydraulic Telescopic Marine Crane Stable Operation Ouco 0.7t6m Hydraulic Telescopic Marine Crane Stable Operation Detailed Images Ouco 0.7t6m Hydraulic Telescopic Marine Crane Stable OperationOuco 0.7t6m Hydraulic Telescopic Marine Crane Stable Operation  Ouco 0.7t6m Hydraulic Telescopic Marine Crane Stable Operation

FAQ:



Q: What's the capacity of your request crane?
A: From 0.5t to 100t.


Q: What's working radius of your request crane?
A: From 1m to 100m.


Q: Which type of the crane should I choose?
A: Folding boom, knuckle boom, telescopic boom, stiff boom, etc. Some advices can be offered accordingly.


Q: Can this crane be explosion proof?
A: Sure, any extra function based on your requirement.


Q: Does your crane have safety devices?
A: Of course, all cut off limits and alarms for safety reasons.


Q: How can I install the crane to my vessel?
A: Our service engineers will go to the vessel site for guiding or ship the crane in whole piece.


Anything else? We will be pleased to answer all your questions and doubts.
