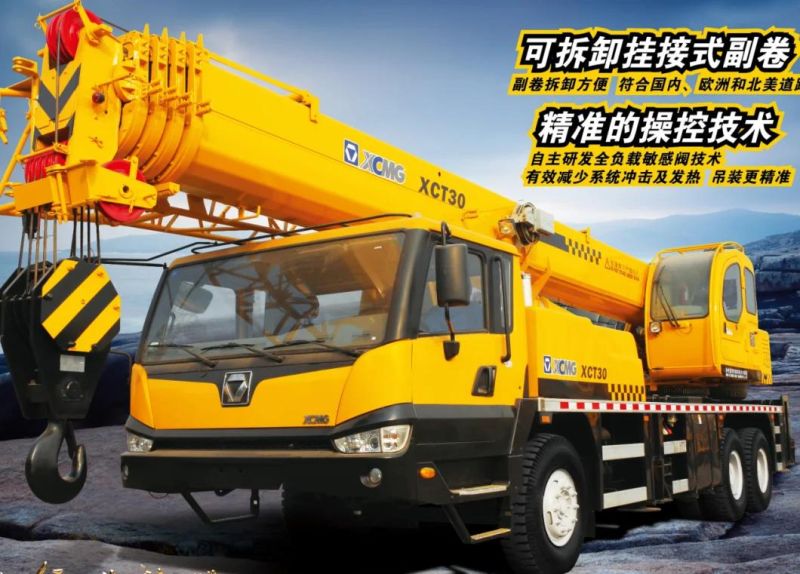

• Model NO.：XCT30E
• Shaft Number：3
• Crane Jib：Five-Arm
• Model：Benz
• Rated Power/Revolution Speed：390 Kw,1800 Rpm
• HVAC in Low Cab：Cooling and Heating
• Swing Speed：1.8 R,Min
• HVAC in up Cab：Cooling and Heating
• Weight：60000kg
• 50000 Kg Front Axle Load：12000 Kg
• Transport Package：Regular Package
• Specification：15530*3000*4000kg
• Origin：China
• Production Capacity：100

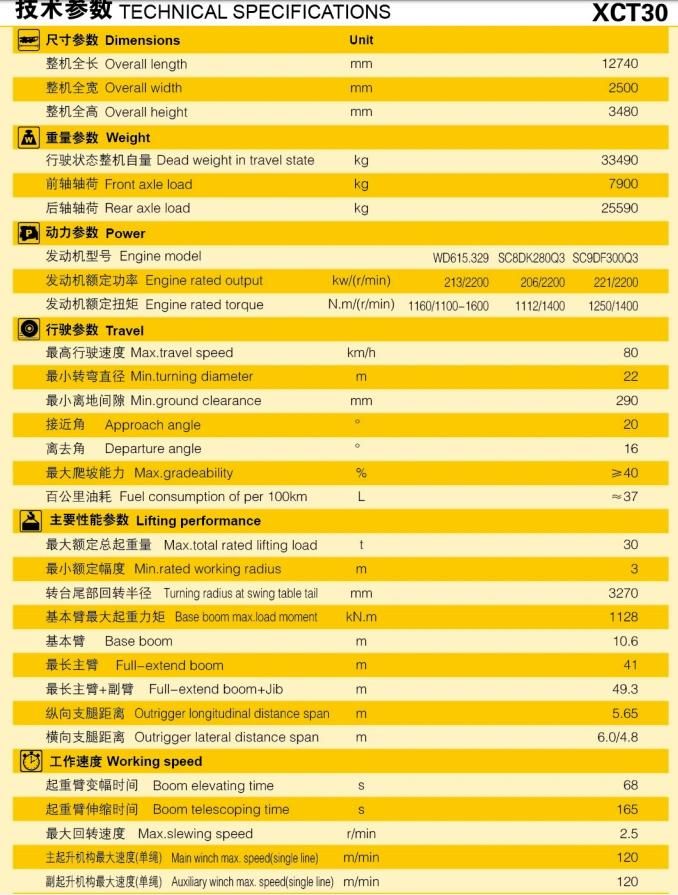

DimensionsUnit Overall lengthMm12740Overall widthMm2500Overall heightMm3480Weight  Dead weight in travel stateKg33490Front axle loadKg7900Rear axle loadKg25590Power  Engine model SC8DK280Q3 SC9DF300Q3 WD615.329Engine rated outputKw(r/min)206/2200 221/2200 213/2200Engine rated torqueN.m(r/min)1112/1400 1250/1400 1160/1100-1600Travel  Max.travel speedKm/h80Min. turning diameterM22Min. ground clearanceMm290Approach angle.20Departure angle.16Max. gradeability%≥40Fuel consumption of per 100kmL≈37Lifting performance  Max. total rated lifting loadT30Min. rated working radiusM3Turning radius at swing table tailMm3270Base boom max. load momentKn.m1128Base boomM10.6Full-extend boomM41Full-extend boom+Jibm49.3Outrigger longitudinal distance spanM5.65Outrigger lateral distance spanM6.0/4.8Working speed  Boom elevating timeS68Boom telescoping timeS165Max. slewing speedr/min2.5Main winch max. speed(single line)m/min120Auxiliary winch max.speed(single line)m/min120
