• Model NO.：CLW5089SCD
• Type：Folding
• Chassis Brand：Dongfeng, Sinotruk HOWO, Foton, FAW, JAC, Jmc, Isu
• Engine Brand：Wd615.69, 336HP
• Gearbox：10forwards & 2reverse
• Crane Brand：Sany, X Cmg, Clw, etc.
• Crane Capacity：2ton, 3ton, 3.2ton, 4ton, etc.
• Crane Boom Type：Straight Telescopic Crane, Knuckle Crane
• Boom Type：Knuckle 3-Arm Telescopic Boom
• Cargo Material：Q235 Carbon Steel
• Cargo Thickness：Side 3mm, Bottom 4mm
• Warranty：1 Year
• Transport Package：Naked, Waxed, Bulk Ship, RO-RO
• Specification：2ton, 3ton, 3.2ton
• Trademark：CLW
• Origin：Suizhou, China
• HS Code：8705909090
• Production Capacity：500 Unit,Month

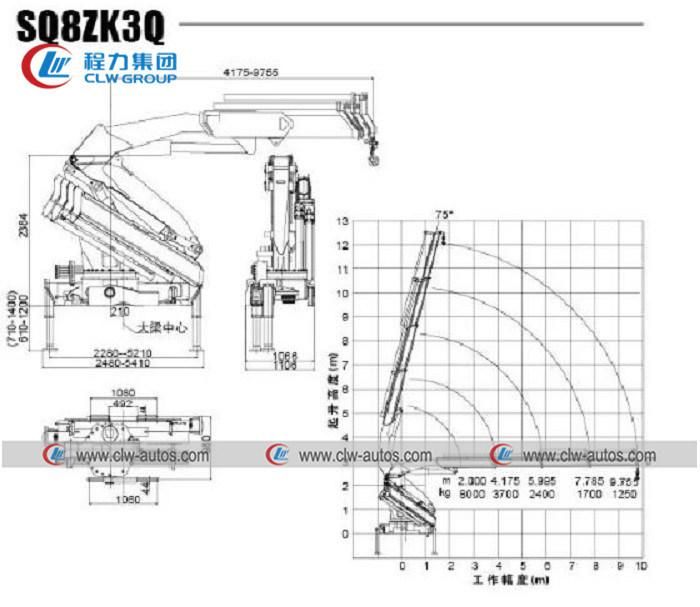

Vehicle Main DimensionsOverall dimensions (L x W x H) mm9800×2500×3718Carriage Size (L x W x H) mm7100×2326×600Wheel base (mm)4325+1350Wheel track (front/rear) (mm)1500/2625Approach/Departure angle(°)16/15Weight in KGSCurb Weight13870payload25000Front axles loading capacity1x9000Rear axles loading capacity2x16000Max. driving speed(km/h)90EngineBrandSinotrukModelWD615.69Type4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-coolingHorse Power(HP)336 HPEmission standardEuro 2GearboxHW19710,10 Forwards gear & 2 reverse gear.SteeringZF8098, from Germany,Tire12R22.5 tubeless radial tires, 11pieces including one spareClutchReinforced diaphragm clutch, diameter 430 mmCrane specificationsBrand : CLW or SANY or other brandsType: KnuckleMax lift capacity: 8000 kgMax working radius 12.5 m, Max lifting height : 10m2TYPEMax Lifting CapacityMax Lifting MomentRecommend Power Needed At Recommend Oil FlowMax Oil Flow of Hydraulic SystemRated Pressure Of Hydraulic SystemOil Tank CapacityRotation AngleCrane WeightInstallation SpaceSQ8ZK3Q8000KG16
T.M28
KW40
L/MIN28
MPA160
LAll Rotation2970
KG1150
MM

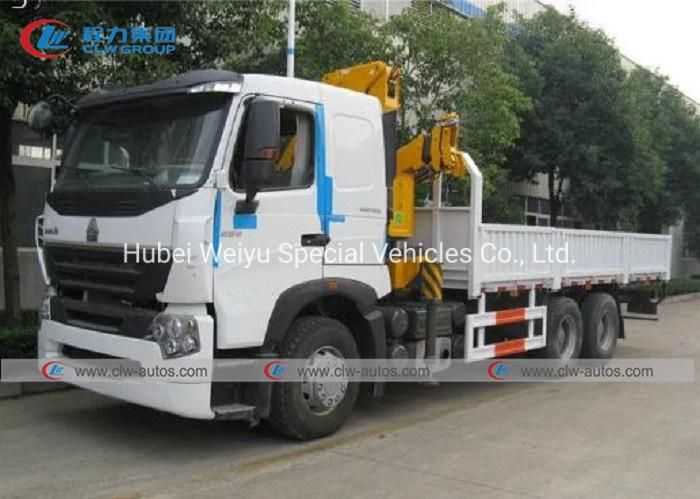

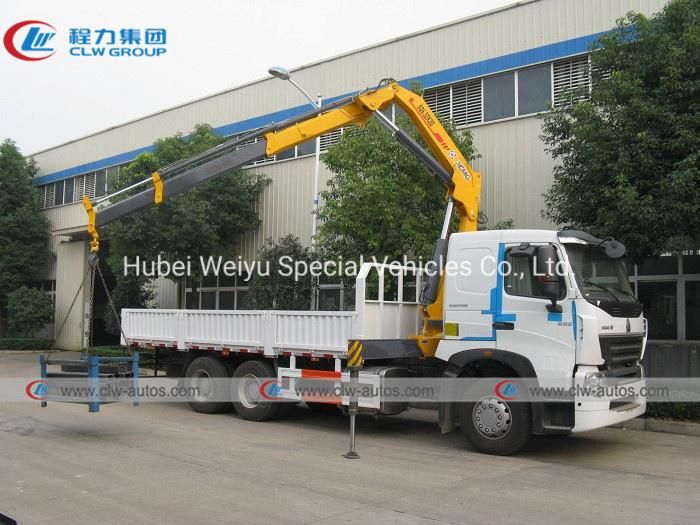

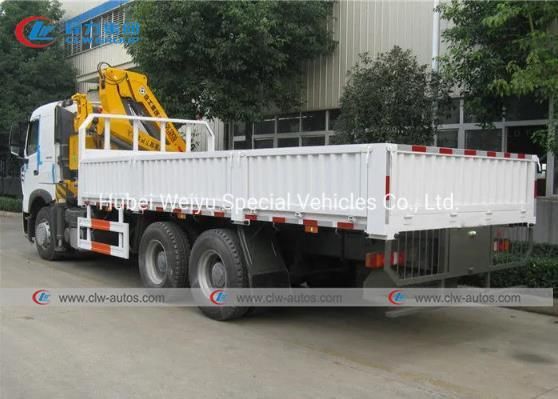

Reference Photos






Main Parts


Working Scene
