• Model NO.：CLW5089SCD
• Type：Straight Arm
• Chassis Brand：Dongfeng, Sinotruk HOWO, Foton, FAW, JAC, Jmc, Isu
• Engine Brand：Wd615.69, 336HP
• Gearbox：10forwards & 2reverse
• Crane Brand：Sany, Chengli, Clw, etc.
• Crane Capacity：5ton, 6ton, 8ton, 9ton, 10ton, etc.
• Crane Boom Type：Straight Telescopic Crane, Knuckle Crane
• Boom Type：Straight 4-Arm Telescopic Boom
• Cargo Material：Q235 Carbon Steel
• Cargo Thickness：Side 2mm, Bottom 3mm
• Warranty：1 Year
• Transport Package：Naked, Waxed, Bulk Ship, RO-RO
• Specification：5ton, 6ton, 8ton, 9ton, 10ton
• Trademark：CLW
• Origin：Suizhou, China
• HS Code：8705909090
• Production Capacity：500 Unit,Month

 CabinDriving type 6x4    HOWO 76 cab, with air condition and one bed, 70°hydraulically tillable to the front as attached photo for ref.Vehicle Main DimensionsOverall dimensions (L x W x H) mm10350×2500×3800Carriage Size (L x W x H) mm6300×2300×600Wheel base  (mm)4600+1350Wheel track  (front/rear) (mm)2022/1830Approach/Departure angle(°)16/12Weight in KGSTare Weight14000payload27000Front axles loading capacity1x9000Rear axles loading capacity2x16000Max. driving speed(km/h)90EngineBrandSINOTRUKModelWD615.69Type4-stroke direct injection ,  6-cylinder in-line with water cooling, turbo-charging and inter-coolingHorse Power(HP)336 HPEmission standardEuro 2GearboxHW19710, 10 forwards gear & 2 reverse gearSteeringZF8098 power steeringTire12R22.5 tubeless tires with one spareFuel tank400LClutchReinforced diaphragm clutch, diameter 430 mmCrane specificationsBrand : according to customer's requests.Type: TelescopicMax lift capacity: 14000 kgMax working radius 15.8 m,  Max lifting height : 17.8 m

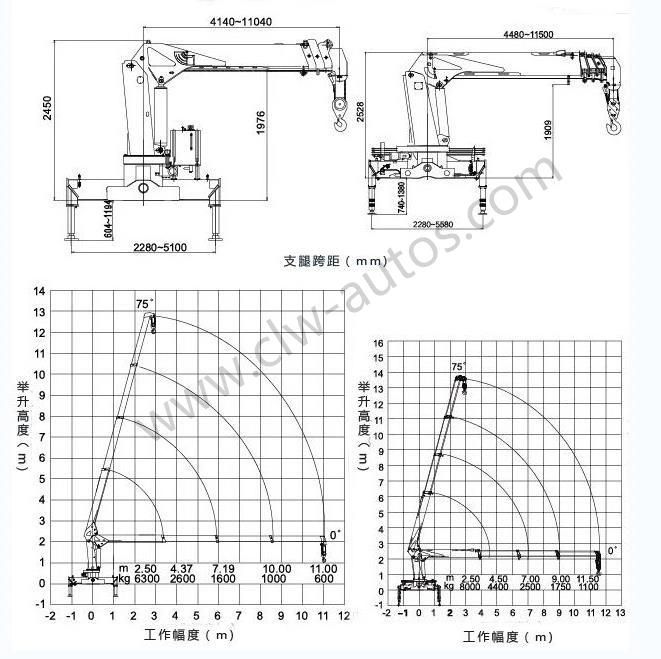

14 T Telescopic crane

TYPE	Max Lifting Capacity	Max Lifting Moment	Recommend Power Needed At Recommend Oil Flow	Max Oil Flow of Hydraulic System	Rated Pressure Of Hydraulic System	Oil Tank Capacity	Rotation Angle	Crane Weight	Installation Space
SQ14SK4Q	14000KG	35 T.M	30 KW	63 L/MIN	26 MPA	160 L	All Rotation	4800 KG	1300 MM

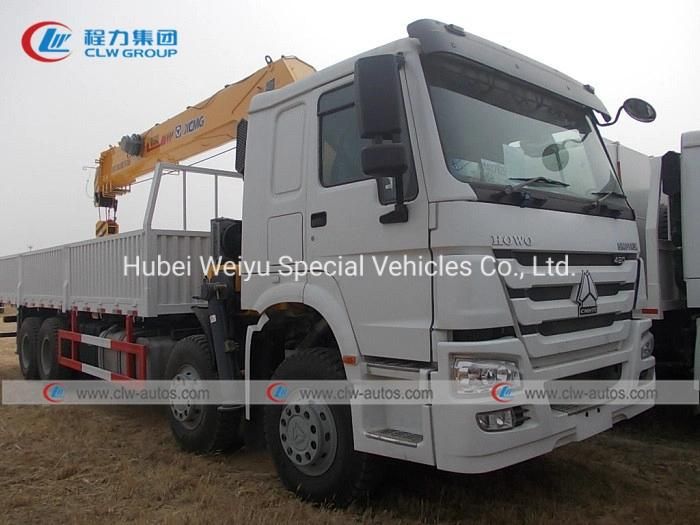

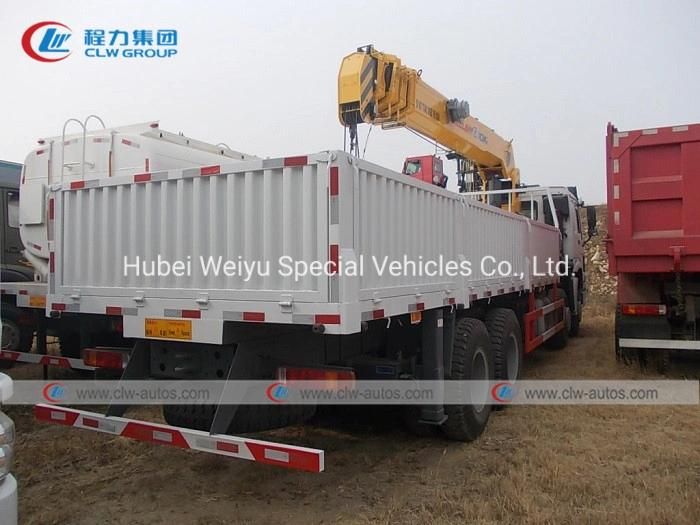

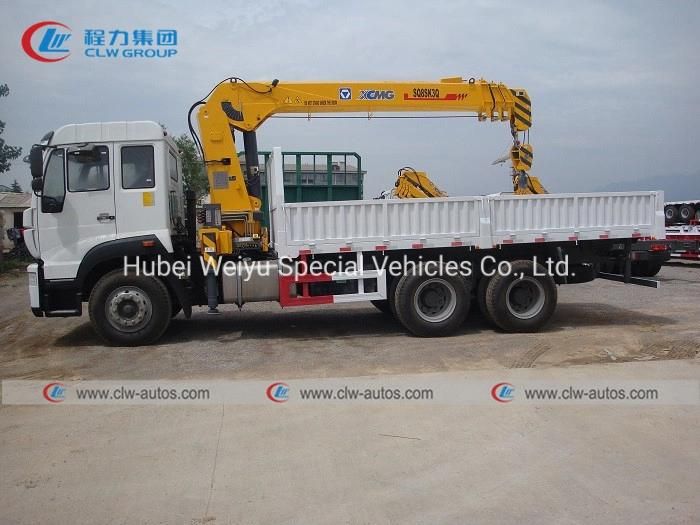

Reference Photos

Main Parts


Working Scene
