Portable 40 Ton Lifter Diesel Powered Mini Container Gantry Crane
Henan Nucrane Machinery Co.,Ltd.- Certification：CE, ISO9001
- Condition：New
- Maximum Lifting Weight：<20t
- Maximum Lifting Height：10-15m
- Operation Form：Air Operation+Ground Operation
- Type：Common Gantry Crane
Base Info
- Model NO.：GC
- Main Girder Form：Single Girder
- Portico Crane Travling Speed：0.3~ 10 M,Min
- Single Beam Gantry Cranlifting Mechanism：Wire Rope Hoist or Electric Chain Hoist
- Truss Gantry Crane Working Class：A3~A8
- Crane Working Temperature：-20 ~ 40
- Gantry Crane Power Supply：AC-3phase-220,230,380,400,415,440V-50,60Hz
- Mobile Gantry Cranemotor Protector Class：IP54,IP55
- Gantry Crane Max. Wheel Pressure/Kn：95~183
- Lifting Machine Steel Track Recommended：P38

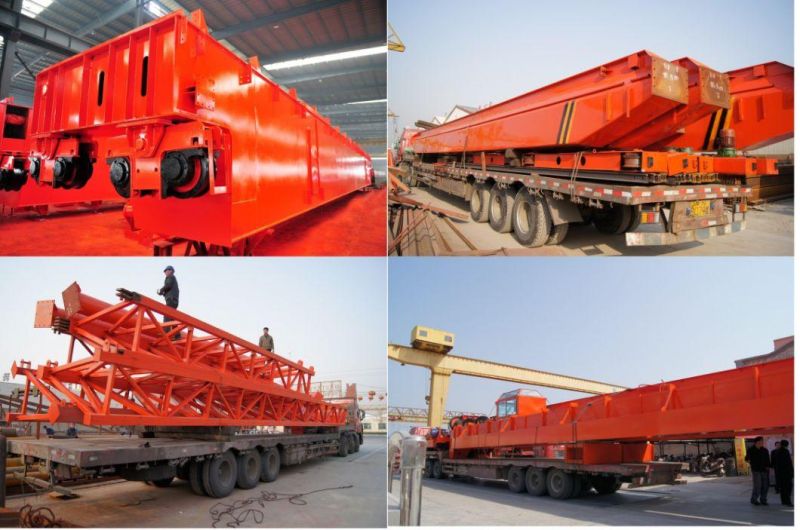

- Transport Package：Electric Parts and Hoist Are Packed Wooden
- Specification：20 or 40feet container
- Trademark：Nucrane
- Origin：Henan Changyuan City
- Production Capacity：1500sets,Month
Description
A3/1bM Lifting speed/m/min 8 7 3.5 3.5 3 Trolley running speed/m/min 20 20 20 20 20 Crane running speed/m/min 20 20 20 20 20 Dead weight/t 10.5~37.5 16.8~52 18.9~65 24.5~77 27.5~98 Number of wheel 4 4 4 4 4/8
Max. wheel pressure/KN 52.5~12.1 95~183 131~242 167~298 238~41.5 Steel track recommended P24 P38 P43 P43 P43
Gantry crane safety protection
1. Overload limiter.
2. High quality, long-term use, impact-resistant polyurethane buffer.
3. Crane travel limit switch.
4. Loss of pressure protection, phase protection.
5. Emergency parking system.
6. Lift the height limiter.
About the product: Please inform the following data so that we can confirm your needs faster! 1. Lifting capacity.
2. Span (track center to rail center)
3. Lifting height (hook center grounding)
4. Whether it needs to be overhanged (please provide the overhang length)
5. Need rails and cables? (please provide the running length)
6. Other special requirements
Gantry crane safety protection
1. Overload limiter.
2. High quality, long-term use, impact-resistant polyurethane buffer.
3. Crane travel limit switch.
4. Loss of pressure protection, phase protection.
5. Emergency parking system.
6. Lift the height limiter.
About the product: Please inform the following data so that we can confirm your needs faster! 1. Lifting capacity.
2. Span (track center to rail center)
3. Lifting height (hook center grounding)
4. Whether it needs to be overhanged (please provide the overhang length)
5. Need rails and cables? (please provide the running length)
6. Other special requirements
