• Model NO.：SC200,200 EB,BZ,BG
• Type：Top-Slewing Crane
• Trademark：Zoomlion
• Origin：China

Basic Info.

Model NO. SC200/200 EB/BZ/BG Type Top-Slewing Crane Trademark Zoomlion Origin China

Product Description

Feature

Energy efficient

Using imported NORD (Germany) reducer motor, the efficiency of the drive unit is increased by 26%,and the
operation is stable and reliable.

Intelligent

1. Equipped with an intelligent control system, functions such as booting with one card, identity authen-
    tication, status display, and fault self-diagnosis can be realized.

2. Equipped with a manual and automatic integrated operating system, labor intensity and the damage
    to the shock electrical components can be reduced.

3. Equipped with the secretary smart application, remote management, fault diagnosis, maintenance
    reminder, and personnel management of the construction elevator can be realized.

Low operating cost

1. Easy to install and dismantle: quick-install structure design such as underframe guardrail, attached wall
    frame, etc., can save time and effort for installation and disassembly.

2. Easy maintenance: Easy-caring design, such as lubrication-free rollers, anti-loosing back wheels, anti-
    loosing double rollers, hot-dip galvanized underframe guardrails, hot-dip galvanized doors, etc. can favor
    to the customers without maintenance costs or low maintenance costs.


Parameters


Model	SC200/200 EB	SC200/200 BZ	SC200/200 BG
Capacity(kg)	2*2000	2*2000	2*2000
Lifting Speed(m/min)	0~40	0~63	0~90
Motor Power(kw)	2*2*13	2*3*9.2(NORD)	2*3*18.5(NORD)
Speed Ratio of Reducer	1:16	1:13.69	1:11.4
Inverter Power(kw)	2*30	2*75	2*110
Max Lifting Height(m)	500	500	500
Working Current	2*2*27	2*3*32.6	2*3*59.9

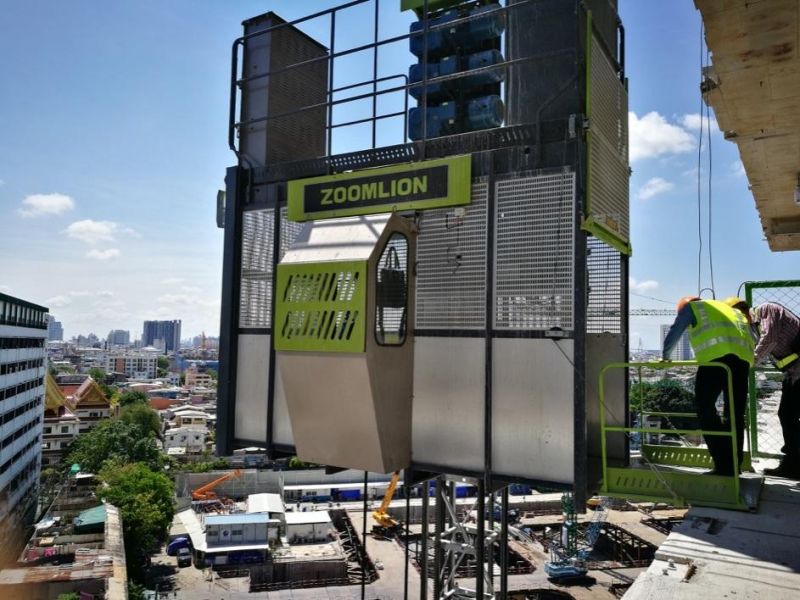

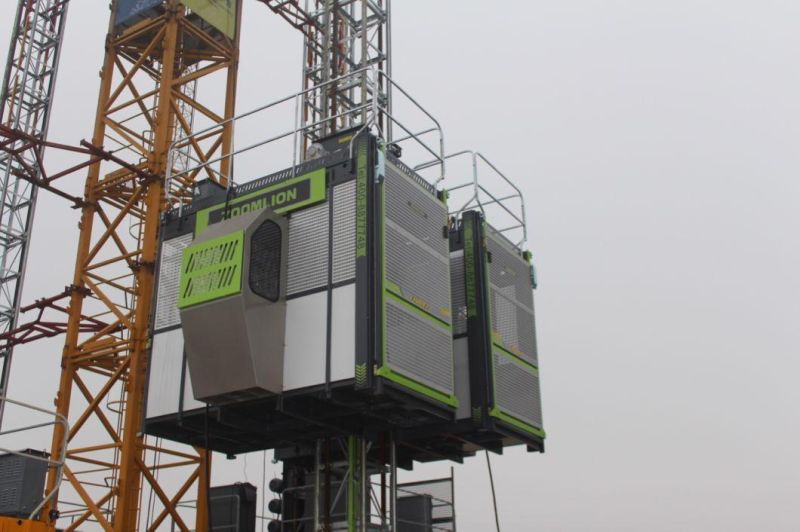

Product Show








Our Company




      Founded in 1992, Zoomlion Heavy Industry Science & Technology Co., Ltd. is mainly engaged in
     develop-ing   and anufacturing major high-tech equipment in the areas of engineering industry and
     agricultural industry.

      With more than 20 years of innovation and development, the company is now a global enterprise
      possessing 10   major categories and 55 product lines, as well as nearly 460 leading products. Zoomlion is
     China's first con-struction machinery company to be listed on both Shenzhen and Hong Kong stock
     exchanges, with registered   capital amounting to RMB 7.664 billion. At present, the company is actively
     promoting strategic transformation, aiming to build a high-end equipment.

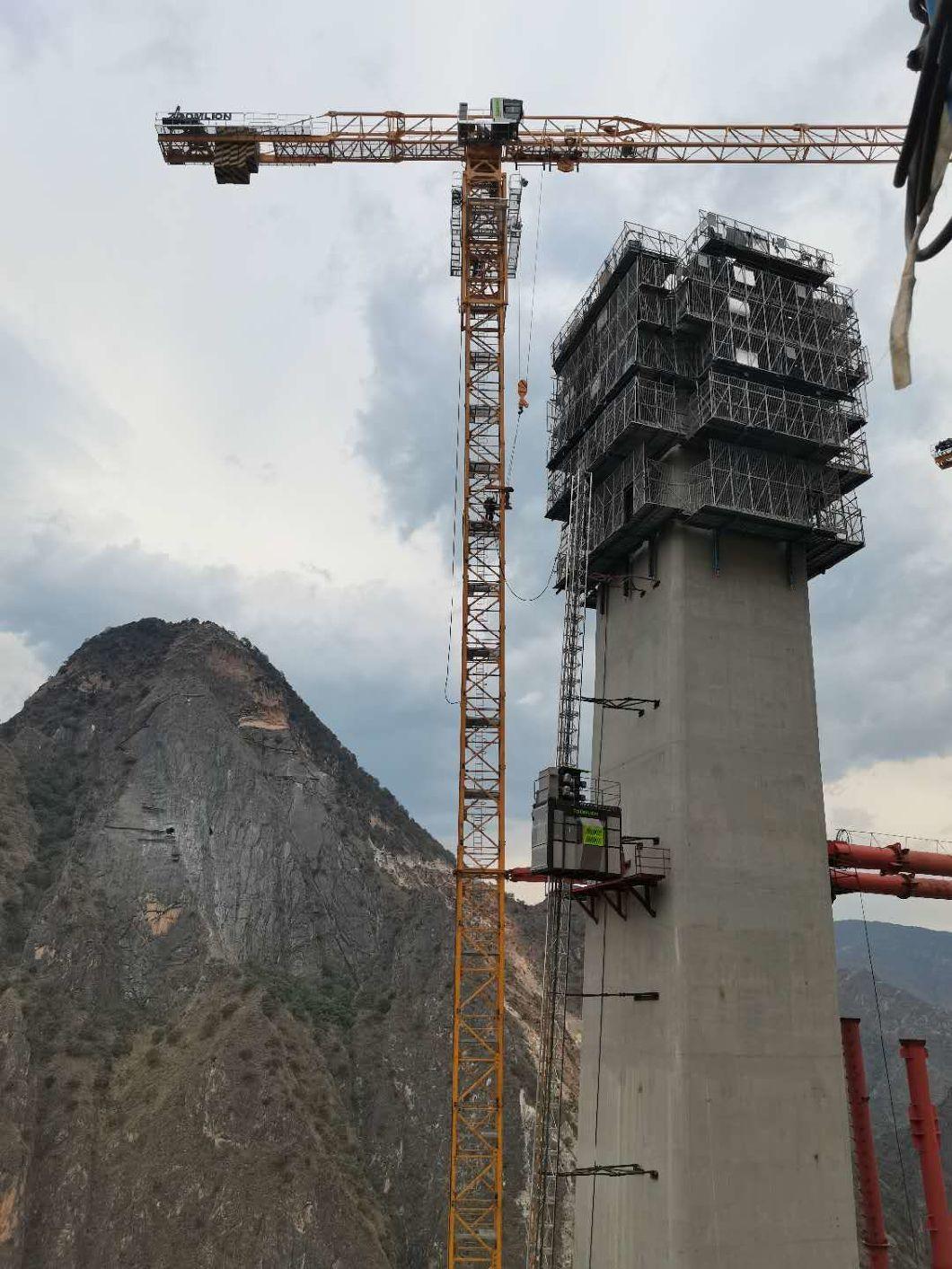

      In 1956, the predecessor of Zoomlion, Changsha Construction Machinery Research Institute, developed
      the  first tower crane in China with independent intellectual property rights-QTZ160. With more than 60
      years of   technology inheritance and innovation, Zoomlion has now developed into a world-leading
      tower crane manufacturer and also the secretariat unit of the International Organization for
      Standardization/Crane Technical  Committee (ISO/TC96).

      The products of Zoomlion Construction Hoisting Machinery Company cover four series: hammer-head
      tower  cranes, flat-top tower cranes, luffing tower cranes and construction hoists. Many star products have
      been born  as well, such as the world's largest tonnage top-slewing jack-up Tower crane D5200, the
      world's longest-boom   tower crane D1250, which set a world record for Guinness, the world's largest
      tonnage flat-top tower crane  T2850, and the world's largest tonnage internal climbing boom tower crane
      LH3350, which rolled off the assembly line in 2019.
