New Stock Crs450 ATV Reach Stacker Container Forklift 45 Ton Crane Machine
Xiamen LTMG Machinery Co., Ltd.- After-sales Service:2000 Working Hours or One Year Whichever Comes Fir
- Operation Form:Crane Console
- Warranty:1 Year , 2000 Working Hours
- Certification:CE, ISO9001
- Power Unit:Diesel
- Load Capacity(L1, L2, L3):45000 , 31000 , 16000kg
Base Info
- Model NO.:CRS450
- Engine:Cummins Qsm 11
- Wheelbase:6400mm
- Color:Could Be Designed by Buyer
- Weight:116400kg
- Cylinder Number/ Displacement:6 , 10820 Cm3
- Rated Power @ Rated Speed:1674nm @ 1500 Rpm
- Rated Current of Alternator:150 a
- Battery:24 V (2 X 12 ,150)
- Transport Package:Nude Package, Fixed in Container
- Specification:11618*8410*41880mm
- Trademark:LTMG
- Origin:China
- HS Code:8427109000
- Production Capacity:1000 Units,Year
Description
Manufacturer LTMG Model designation CRS450/5 Power unit: battery, diesel, LP gas, mains power Diesel Operation: manual, pedestrian, stand-on, seated, order picker Rider seated Load capacity(L1, L2, L3) Q (kg) 45000 / 31000 / 16000 Load centre, First row(L1) c (mm) 1800 Load centre, Second row(L2) c (mm) 3860 Load centre, Third row(L3) c (mm) 6400 Axle centre to spreader center(L1-1/2 high) x (mm) 2800 / 2600 Wheelbase y (mm) 6400 Boom lift angle, raised/lowered α/β( / °) 61/ 0 Height boom lowered h1 (mm) 4945 Lift height(L1, L2, L3) h3 (mm) 15900 / 14100 /11350 Height, boom extended h4 (mm) 19000 Height of cabin h6 (mm) 3900 Height, operators seat h7 (mm) 2840 Towing coupling height h10 (mm) 600 Twistlock height lowered h13 (mm) 1495 Overall length with spreader l1 (mm) 11618 Overall length l2 (mm) 8410 Overall width b1/b2 (mm) 4180 / 3400 Width of soreader 20'/40' b3 (mm) 6050 /12150 Ground clearance minimum m1 (mm) 345 Ground clearance, centre of wheelbase m2 (mm) 300 Stacking aisle 20' container Ast (mm) 10225 Stacking aisle 40' container Ast (mm) 13050 Turning radius Wa (mm) 8605 Minimum pivoting point distance b13 (mm) 3400 Wheelspan, Front wheels b10 (mm) 3030 Wheelspan, Rear wheels b11 (mm) 2786 UnLaden Laden Weight kg 71400 116400 Load on drive axle kg 36400 101900 Load on steering axle kg 35000 14500 UnLaden Laden Travelling speed km/h 25 21 Climbing ability % 30 28.8 Tractive force kN 325 -- Lifting speed m/s 0.39 0.28 Lowering speed m/s 0.39 0.39 Movable closed cabin Equiped with Air-conditioner, cooling/heating function Noise level at driver's ear dBA 74 Brand Cummins Type QSM 11 Cylinder number/ Displacement 6 / 10820 cm3 Rated power @ rated speed 250Kw @ 2100 rpm Maximum torque 1674NM @ 1500 rpm Rated current of alternator 150 A Battery 24 V (2 x 12 /150) Product Advantage
and Steering Axle.
*Independent brake cooling system: Drive axle brake use a separate cooling system from truck
oil cooling system to ensure safety and extend drive axle service life.*Dynamic Anti-Rollover Protection Technology: Rear axle unlock system will be triggered once
detect overload front. Use rear axle as extra weight to increase stability; And lower counter weight
will move backwards to increase safety and avoid revolve.*Vertical Lifting Technologies of Boom: The intelligent controller monitors the boom' s parameters
at real-time, and automatically adjust the position of the boom to ensure vertical lifting of the spreader,
which makes stacking safer and improves efficiency significantly.
*Weighing and printing technology: Print out container quantity and weight anytime, improve
work efficiency.
*Reliable structure system: Designed with 3D modeling, use simulation software to finite
element analysis, the stacker passed high-intensitive fatigue and vibration test to ensure the
reliability of whole structure.
and Steering Axle.
*Independent brake cooling system: Drive axle brake use a separate cooling system from truck
oil cooling system to ensure safety and extend drive axle service life.*Dynamic Anti-Rollover Protection Technology: Rear axle unlock system will be triggered once
detect overload front. Use rear axle as extra weight to increase stability; And lower counter weight
will move backwards to increase safety and avoid revolve.*Vertical Lifting Technologies of Boom: The intelligent controller monitors the boom' s parameters
at real-time, and automatically adjust the position of the boom to ensure vertical lifting of the spreader,
which makes stacking safer and improves efficiency significantly.
*Weighing and printing technology: Print out container quantity and weight anytime, improve
work efficiency.

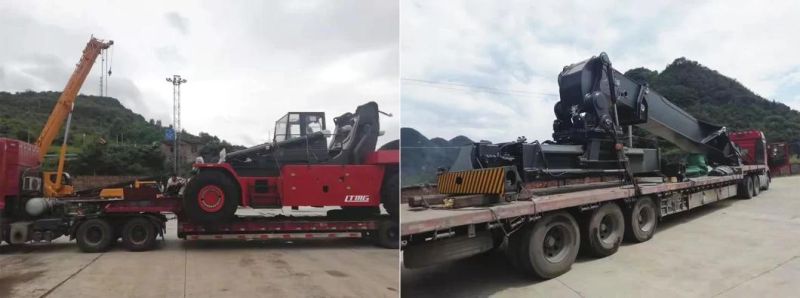

Delivery & Shipping
