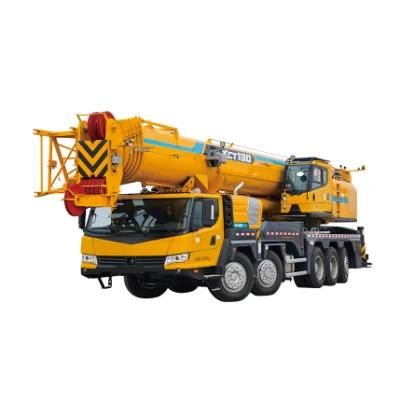

Construction Crane Heavy Lift Hydraulic Mounted 80 Ton

Uptra Electric & Machinery (Shanghai) Co., Ltd.
  • Certification：GS, RoHS, CE, ISO9001
  • Condition：New
  • Maximum Lifting Height：>40m
  • Maximum Lifting Weight：80ton
  • Shaft Number：3
  • Crane Jib：Five-Arm

Base Info

  • Model NO.：hydraulic truck crane
  • Type：Folding
  • Overall Dimension：14770X2800X3890mm
  • Wheel Base：2380+2075mm
  • Track：2074,1834,1834mm
  • Max. Travel Speed：80km,H
  • Min. Travel Speed：3km,H
  • Min. Turning Diameter：24m
  • Min. Ground Clearance：371mm
  • Max. Grade Ability：40%
  • Application：Construction Lifting
  • Engine Rated Power：290,1900kw,(R,Min)
  • Engine Rated Torque：1900,1000-1400n.M,(R,Min)
  • Approach Angle：17degree
  • Departure Angle：15.5degree
  • Braking Distance：Less Than10m
  • Max. Total Rated Lifting Capacity：80t
  • Transport Package：Nacked
  • Specification：CE
  • Trademark：Super-above
  • Origin：Jiangsu, China
  • HS Code：8705109100
  • Production Capacity：10000PCS,Year

Description

DescriptionUnitParameter valueOverall lengthmm14770Overall widthmm2800Overall Heightmm3890Axle base1st ,2nd axlemm14702nd ,3rd axle40003rd ,4th axle1350Wheel Basemm 2380+2075Total vehicle mass in travel configurationkg50000Axle load   1st and 2nd Axlekg240003rd and 4th Axle26000Engine Model WP12.375NMC11.39-30Engine rated powerkw/(r/min)276/1900290/1900Engine rated torqueN.m/(r/min)1800/1000-14001900/1000-1400Max. travel speedkm/h80Min. steady travel speedkm/h3Min. turning diameterm24Min. turning diameter at boom tipm29Min. ground clearancemm371Max. grade ability%40Approach angle°17Departure angle°15.5Braking distance (at 30 km/h, full load )m≤10Oil consumption per 100kmL45
