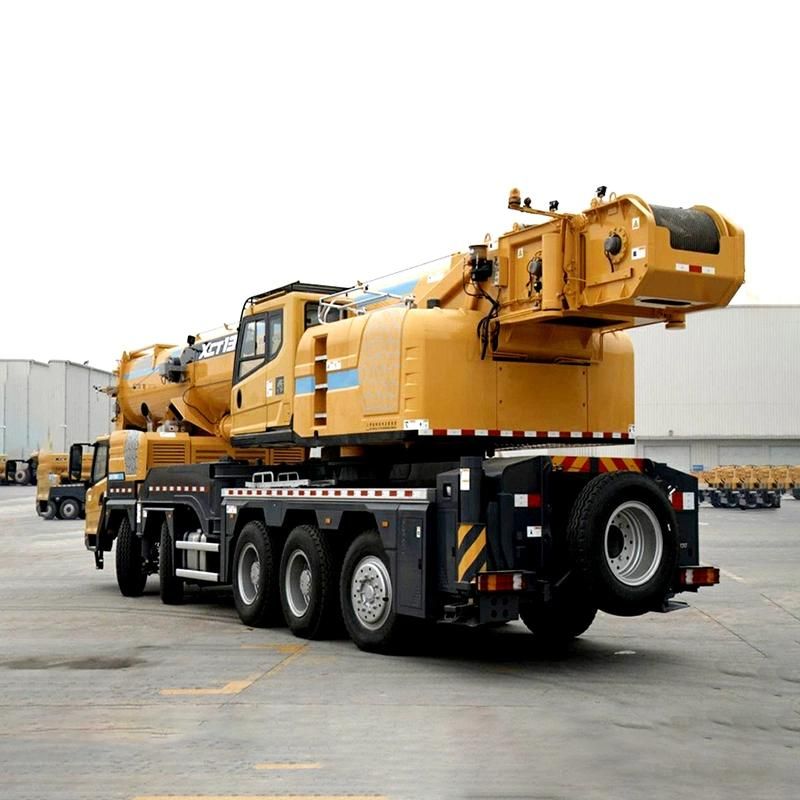

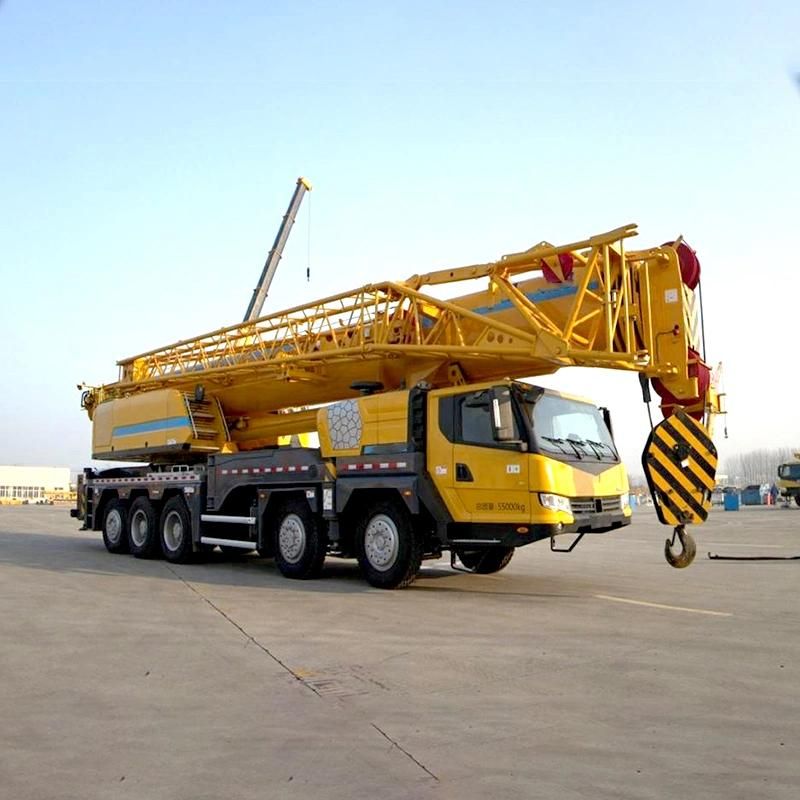

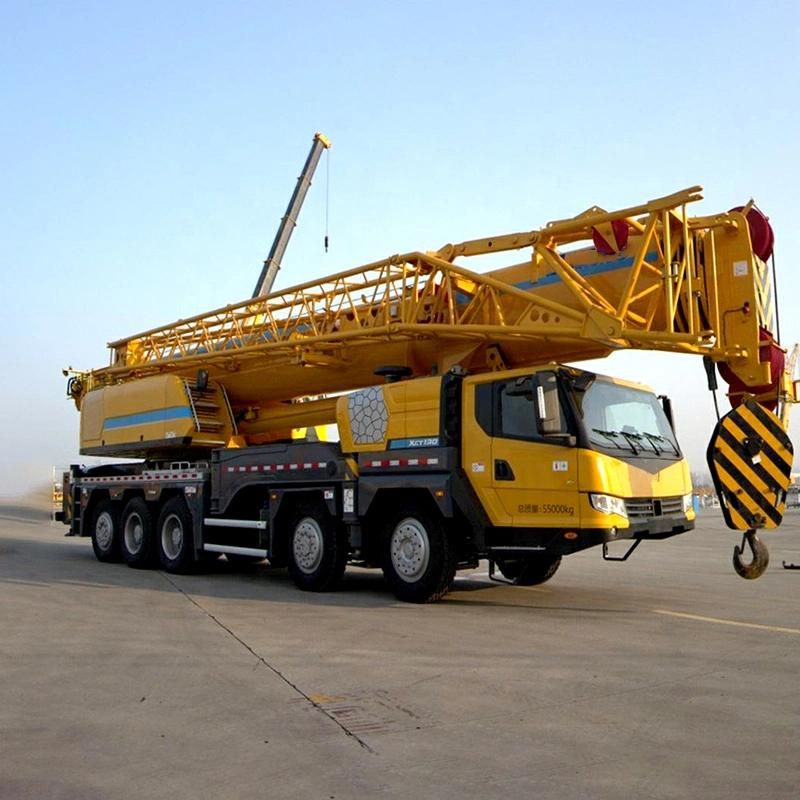

130 Ton Hydraulic Truck Mobile Crane Xct130

Cruking Engineering Equipment (Xiamen) Co., Ltd.
  • After-sales Service：Video Technical Support, Online Support
  • Warranty：1 Year
  • Certification：CE, ISO9001
  • Condition：New
  • Maximum Lifting Height：>40m
  • Maximum Lifting Weight：130 Ton

Base Info

  • Model NO.：XCT130
  • Shaft Number：3
  • Crane Jib：Five-Arm
  • Type：Straight Arm
  • Overall Length：15195mm
  • Overall Width：3000mm
  • Overall Height：3970mm
  • Wheel Base：2449,2449,2315,2315,2449mm
  • Front Axle Load：16200kg
  • Rear Axle Load：26000kg
  • Engine Rated Power：190,2200t Kw,(R,Min)
  • Engine Rated Torque：1000,1200-1600 N.M,(R,Min)
  • Max. Travel Speed：85 Km,H
  • Min. Travel Speed：2.5~3km,H
  • Min. Turning Diameter：23m
  • Span：7.9m
  • Rated Lifting Moment：3000kn.M
  • Application：Construction
  • Weight：54990 Kg
  • Transport Package：Nude Packing
  • Specification：15195*3000*3970mm
  • Trademark：Truck crane
  • Origin：Jiangsu, China
  • HS Code：8705109200
  • Production Capacity：1000 Unit,Units Per Month

Description

Product OverviewProduct Paramentersm
Product Configuration

130 Ton Hydraulic Truck Mobile Crane Xct130130 Ton Hydraulic Truck Mobile Crane Xct130130 Ton Hydraulic Truck Mobile Crane Xct130
